ISCAR Cutting Tools - Metal Working Tools - H400 ER-10 : 3105997

Geometry Checker ×

Family Designation: H400 ER-10

Endmills carrying double-sided inserts with four 5 mm radius cutting edges (HELIDO ROUND H400 LINE).

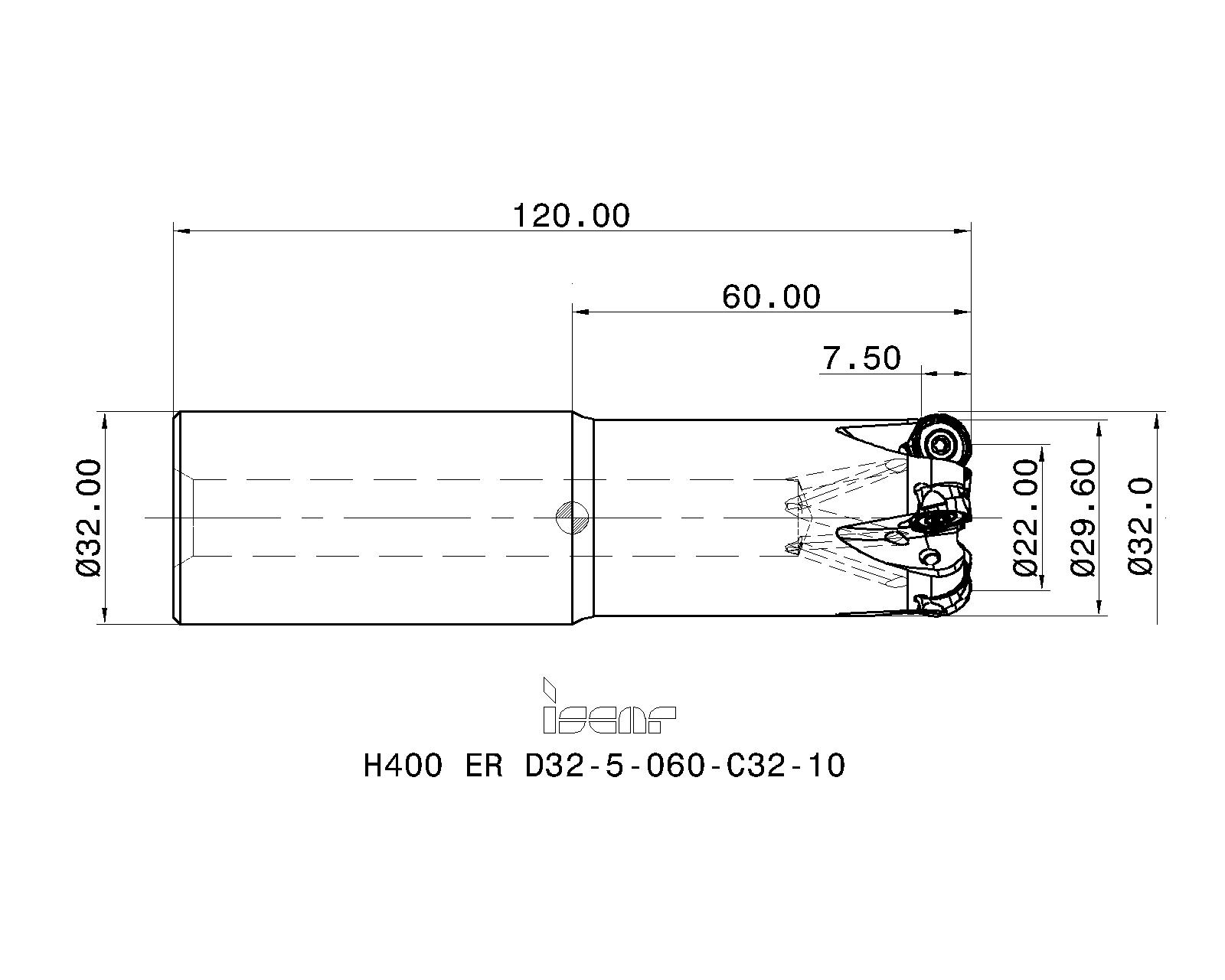

Item Designation: H400 ER D32-5-060-C32-10

DCX	DC	BD	CICT	APMX	LH	OAL	DCONMS	Shank	RMPX°	MIID		CCMS	HAND	CSP	IC	KAPR	ZEFF	GICAT	GIREM	giic
32.00	22.00	29.60	5	7.50	60.0	120.00	32.00	C	3.8	H400 RNHU 1004-ML	0.59	ZYL01G3200h$06~	R~	1~	~	~	5~	3105997		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3105997		3	0	0				<a href="javascript:OpenDxf('3105997', 'H400 ER D32-5-060-C32-10' , 'IscarDxf' , '3105997-H400 ER D32-5-060-C32-10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105997&itemDesc=H400 ER D32-5-060-C32-10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3105997&itemDesc=H400 ER D32-5-060-C32-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7006042	SR 10508600	Torx screw	Details
Recommended tightening torque:2 N*m
	7003372	T-9/51	Torx hand driver	Details
For limiting torque, use optional 7007381 BLD 4 T09-2.0NM blade & 7007320 HSD 4-2.0NM handle.
