Family Designation: HTP-LN06

TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.

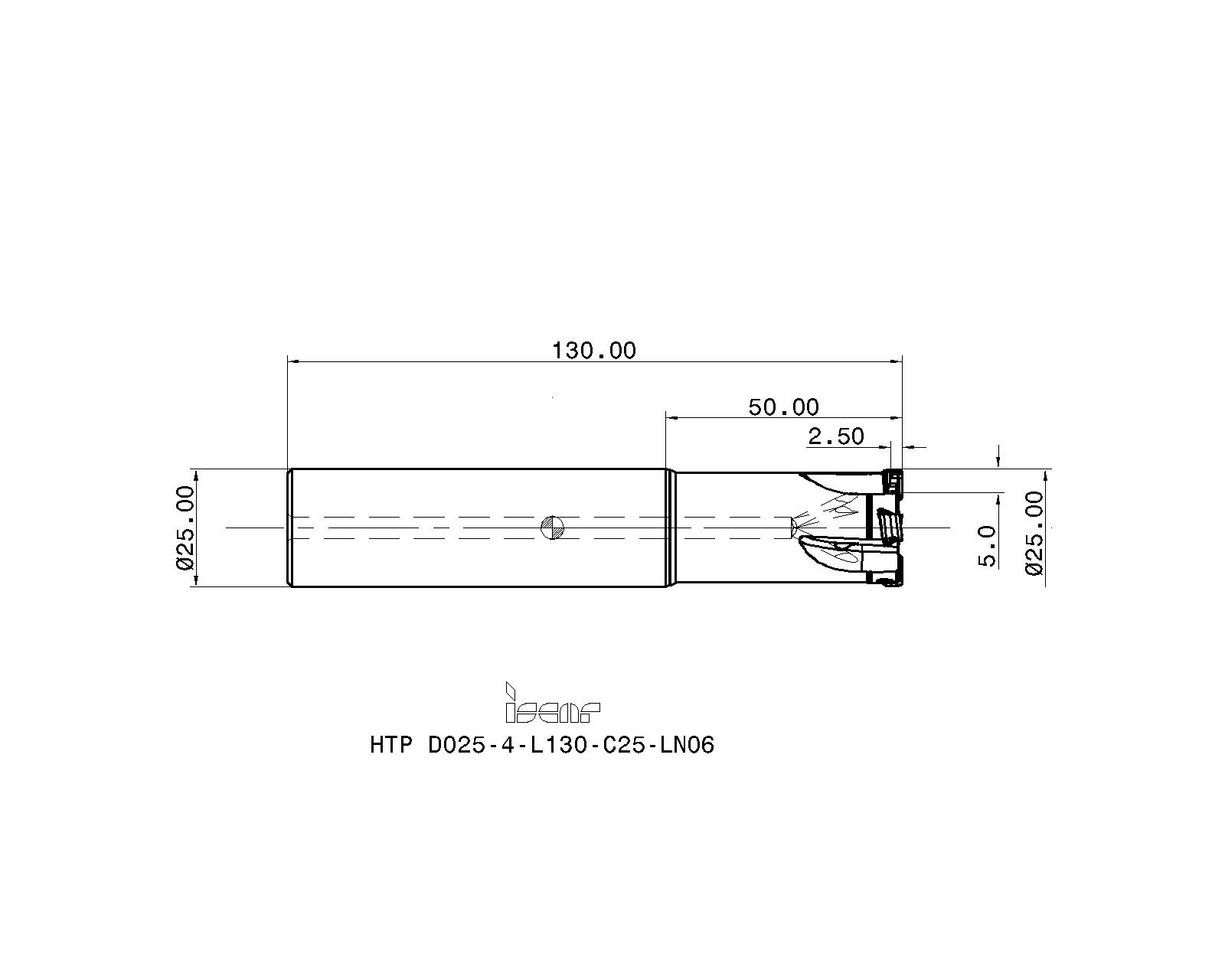

Item Designation: HTP D025-4-L130-C25-LN06

DC	AE	APMX	CICT	LH	OAL	DCONMS	Shank			L3	HAND	Semi- (Q)	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	BMC	CCFMS	CCMS	CCTMS	NOF	ZADJ	ZNP	GTC	KAPR	CSP	CUBPMS	CZCMS	DCX	DF	DHUB	IIC	ISCTMP_2	LTA	LU	RMPX°	SPI	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
25.00	5.0	2.50	4	50.0	130.00	25.00	C	Y~	0.44	6.00~	R~	1~	HTP LNAR 0604 FR-P	1~	3~	307-10~	GEMLT190020~	71E01A05D27A8~	S~	01~	ZYL01G2500h$06~	ZYL~	4~	0~	4~	MILPLI~	90.0~	1~	G~	2500~	~	0.00~	~	IS$$116227621321719~	~	74.00~	50.00~	~	~	h6~	M~	4~	4~	3106071		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3106071		1	0	24				<a href="javascript:OpenDxf('3106071', 'HTP D025-4-L130-C25-LN06' , 'IscarDxf' , '3106071-HTP D025-4-L130-C25-LN06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106071&itemDesc=HTP D025-4-L130-C25-LN06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3106071&itemDesc=HTP D025-4-L130-C25-LN06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info".

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7006242	SR 14-560-HG	Torx screw	Details
Recommended tightening torque:1.2 Nm (10.6lbfin)
	7000274	T-8/53	Torx hand driver	Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
