Family Designation: E30 / T230

30° chamfering endmills.

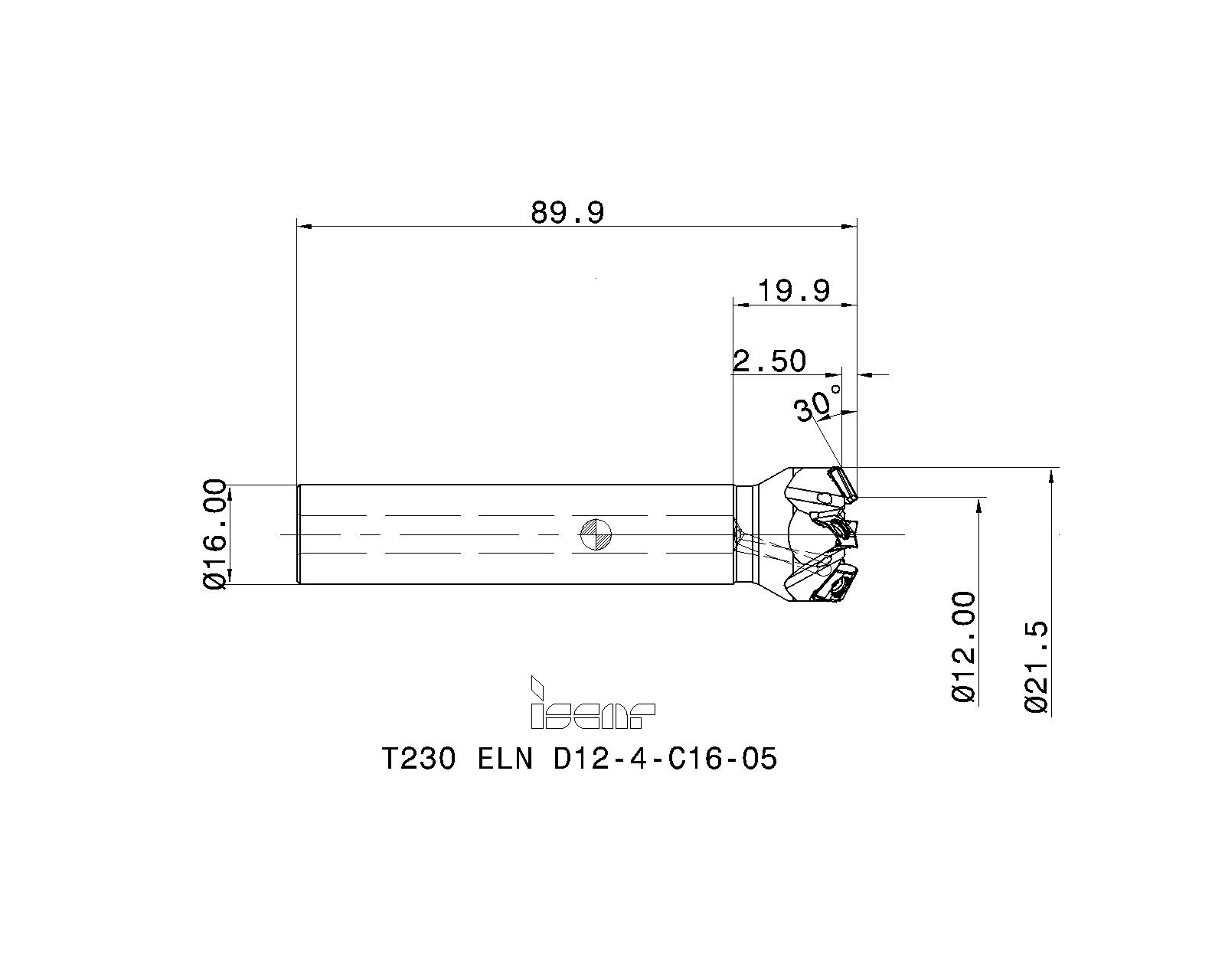

Item Designation: T230 ELN D12-4-C16-05

DC	DCX	KAPR	CICT	APMX	OAL	LH	DCONMS	Shank	CSP	MIID		L	HAND	CCMS	DMIN	LU	RMPX°	ZEFF	GICAT	GIREM	giic
12.00	21.50	30.0~	4	2.50	90.00	20.0	16.00	C	1	T290 LNHT 0502TR	0.13	5.75~	R~	ZYL01G1600h$06~	~	~	0.0~	4~	3106173		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3106173 **		9	0	0				<a href="javascript:OpenDxf('3106173', 'T230 ELN D12-4-C16-05' , 'IscarDxf' , '3106173-T230 ELN D12-4-C16-05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106173&itemDesc=T230 ELN D12-4-C16-05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3106173&itemDesc=T230 ELN D12-4-C16-05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
(**) Requires a price and delivery time quotation
For adaptation, click on "More Info".

Spare Parts
	7066668	SR 10503833	Torx screw	Details
Recommended tightening torque: 0.9 N*m
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
