Family Designation: H490 E90AX-MM 90° endmills with a MULTI-MASTER threaded connection carrying H490 ANKX/ANCX 09... double-sided rectangular inserts with 4 helical cutting edges.


 COOLANT THROUGH TOOL

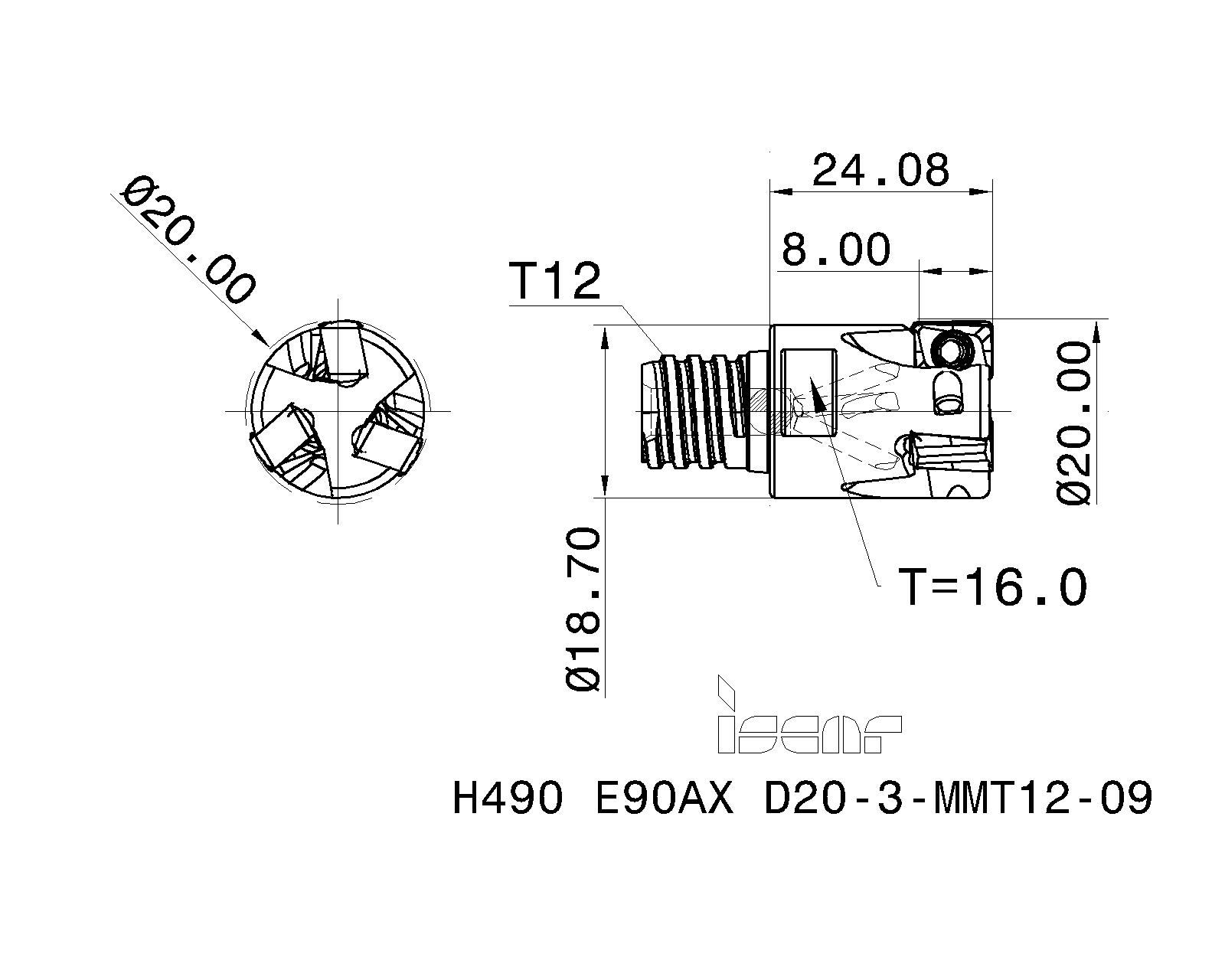

Item Designation: H490 E90AX D20-3-MMT12-09
DC DCX_2 DC_2 CICT  APMX APMX_2 AE LF RMPX°_2 OAL OAL_2 DCONMS THSZMS MDN MDX MIID  MIID_2  DRVS  HAND KAPR  NOF  CCMS CSP  DCX  RMPX°  ZEFF GICATGIREMgiic
20.0020.1020.0038.000.705.524.702.537.3037.3018.70T1234.7039.20H490 ANCX 090404PDRH490 ANKX 0904..-FF16.00.05R~90.0~3~SAI01C0120$$$$~1~~~3~3106199 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
3106199 01520<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3106199&itemDesc=H490 E90AX D20-3-MMT12-09"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3106199&itemDesc=H490 E90AX D20-3-MMT12-09"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=3106199&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
Do not apply lubricant to the MULTI-MASTER threaded connection
For adaptation, click on "More Info"
1- with standard square insert
2- with FF (fast feed) insert
3D Representation
Assembly Video
2D Representation
  Spare Parts
7005890SR 10508082-HGTorx screw
Details
Recommended tightening torque:1.2 N*m
7002348BLD T08/M7Torx blade
Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
