ISCAR Cutting Tools - Metal Working Tools - HM390 ETD-15 : 3106311

Geometry Checker ×

Family Designation: HM390 ETD-15

90° endmills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges.

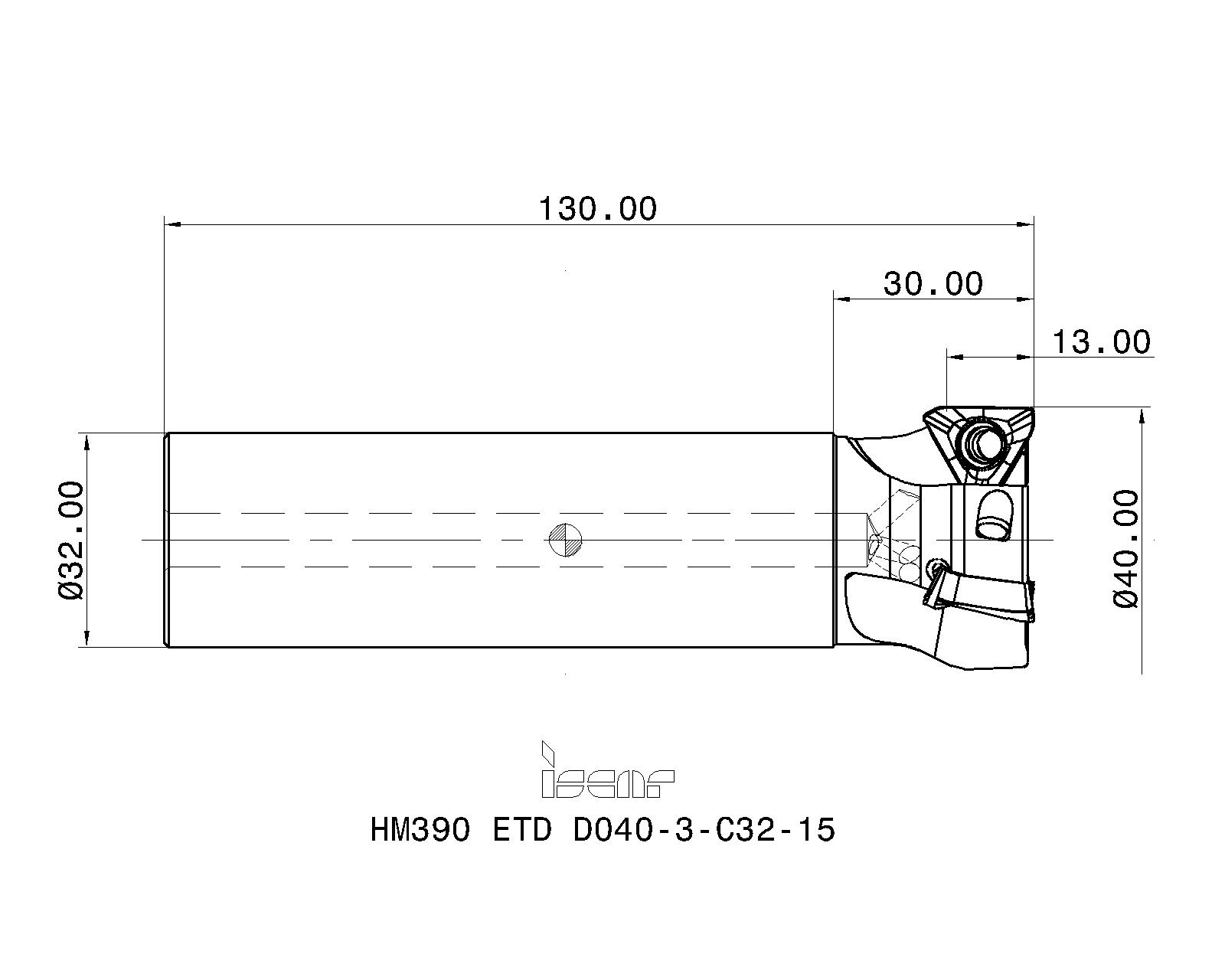

Representative Image

Item Designation: HM390 ETD D040-3-C32-15

DC	APMX	CICT	OAL	LH	DCONMS	RMPX°		HAND	MIID	KAPR	NOF	CCMS	CSP	DCX	LU	ZEFF	GICAT	GIREM	giic
40.00	13.00	3	130.00	40.0	32.00	2.1	0.71	R~	HM390 TDKT 1505PDR	90.0~	3~	ZYL01G3200h$06~	1~	~	~	3~	3106311		0

Catalog No	NEOITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	DXF	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
3106311			0	304	14			<a href="javascript:OpenDxf('3106311', 'HM390 ETD D040-3-C32-15' , 'IscarDxf' , '3106311-HM390 ETD D040-3-C32-15');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3106311&itemDesc=HM390 ETD D040-3-C32-15"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3106311&itemDesc=HM390 ETD D040-3-C32-15"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>	<a href="https://www.iscar.com/ITA?item=3106311&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm

Spare Parts
	7006993	SR 10511869	Torx screw	Details
Recommended tightening torque:9 N*m
	7002553	BLD IP20/S7	Torx blade	Details
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
	7002097	SW6-T	T-handle	Details
