ISCAR Cutting Tools - Metal Working Tools - HSM90S EAL-14 : 3106434 - HSM90S EAL-D32-2-C32-14
Geometry Checker ×

Family Designation: HSM90S EAL-14 Long reach endmills carrying HSM90S APCR 1405... inserts for machining aluminum.


 COOLANT THROUGH TOOL
Item Designation: HSM90S EAL-D32-2-C32-14
DC APMX  CICT  LH OAL DCONMS RPMX  RMPX°  L HAND MIID  CCMS NOF  KAPR  CSP  DCX  LU ZEFF GICATGIREMgiic
32.0013.50280.0200.0032.003750010.01.020.00~R~HSM90S APCR 140508R-PZYL01G3200h$06~2~90.0~1~~~2~3106434 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3106434 300<a href="javascript:OpenDxf('3106434', 'HSM90S EAL-D32-2-C32-14' , 'IscarDxf' , '3106434-HSM90S EAL-D32-2-C32-14');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106434&itemDesc=HSM90S EAL-D32-2-C32-14"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3106434&itemDesc=HSM90S EAL-D32-2-C32-14"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert
Insert tightening torque: 6 (Nxm)

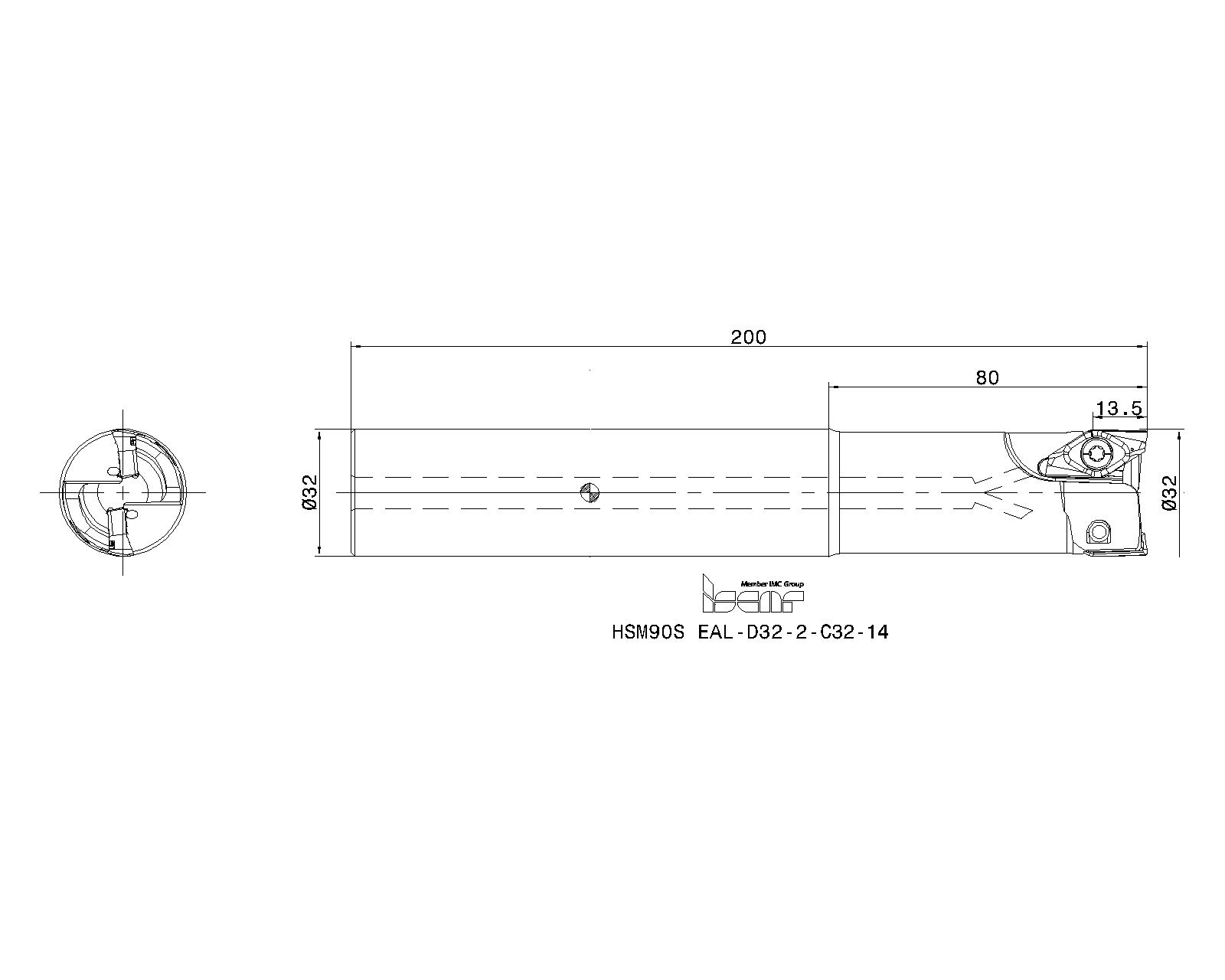

3D Representation
Assembly Video
2D Representation
  Spare Parts
7006729SR M5X0.8IP20-1STorx screw
Details
Recommended tightening torque:6 N*m
7002552BLD IP20/M7Torx blade
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
