Family Designation: SD CAB

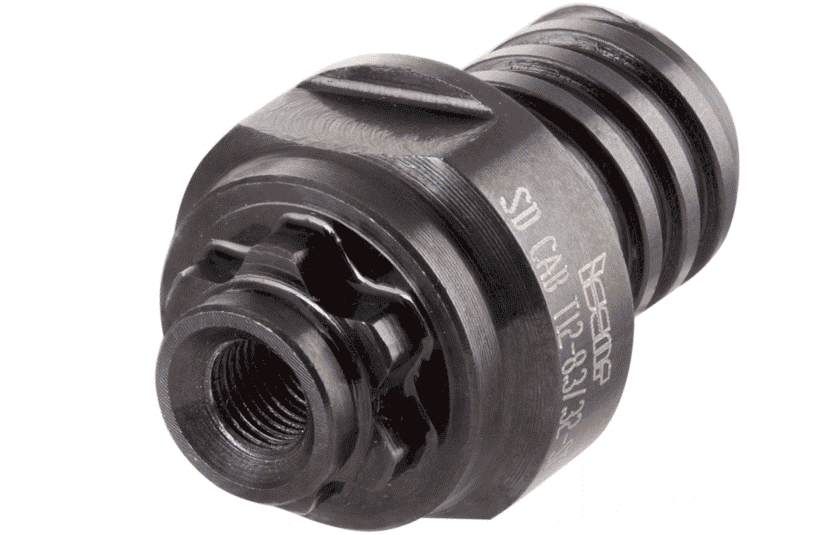

Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks.

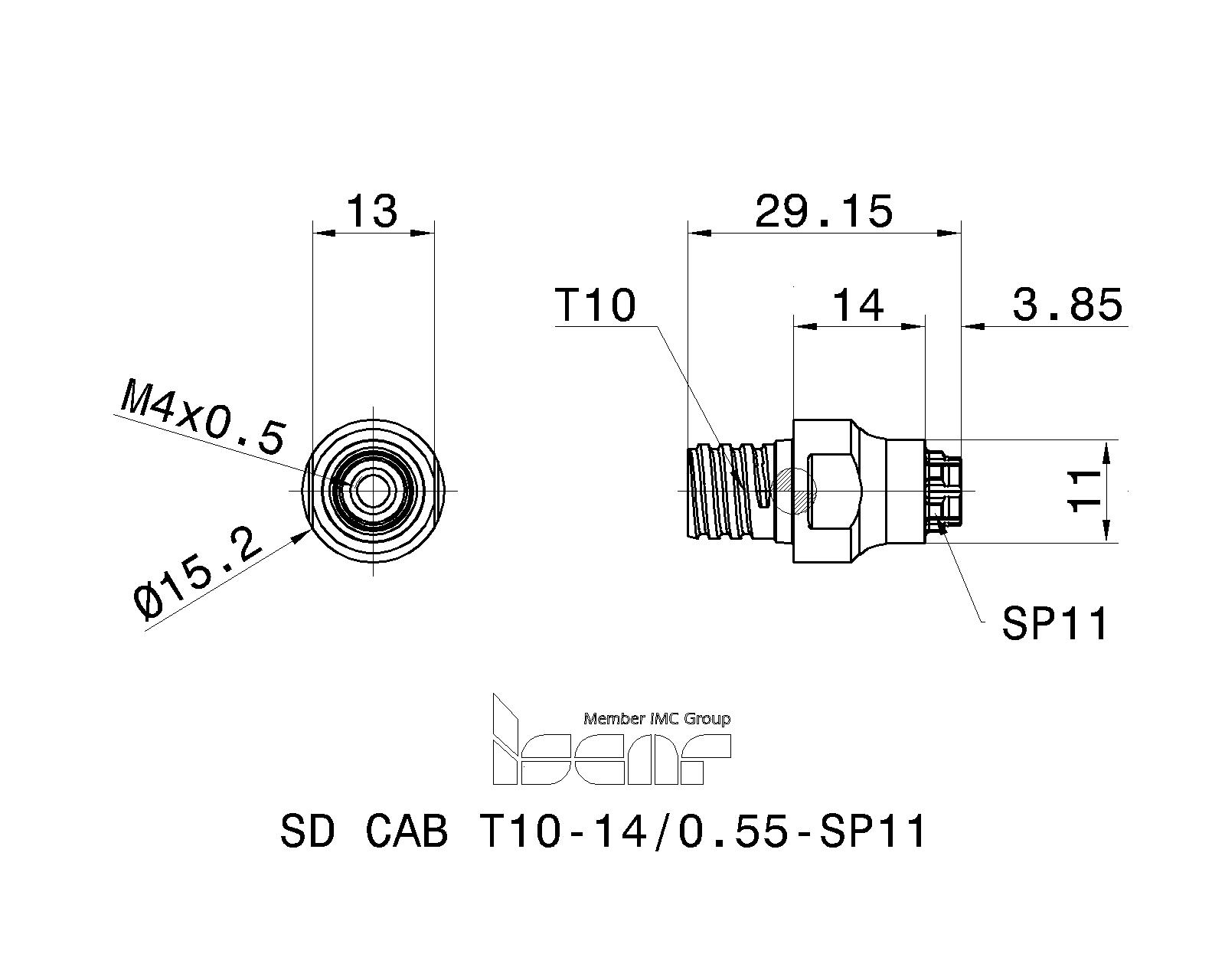

Item Designation: SD CAB T10-14/0.55-SP11

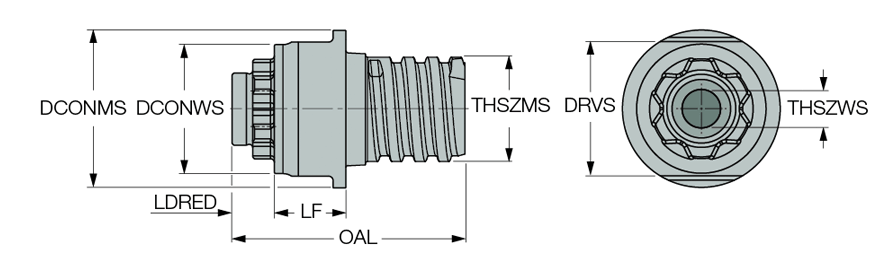

THSZWS	THSZMS	LF	LDRED	OAL	DCONWS	DCONMS	DRVS		GICAT	GIREM	giic
M4x0.5	T10	14.00	3.9	29.15	11.00	15.20	13.0	0.02	3106618		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3106618		1	0	0				<a href="javascript:OpenDxf('3106618', 'SD CAB T10-14/0.55-SP11' , 'IscarDxf' , '3106618-SD CAB T10-14 0.55-SP11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106618&itemDesc=SD CAB T10-14/0.55-SP11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3106618&itemDesc=SD CAB T10-14/0.55-SP11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Note: Apply lubricant to the MULTI-MASTER threaded connection and to the slotting head clamping screw

Spare Parts
	7005942	SR M4X0.5-SP11 HG	Torx screw	Details
Recommended tightening torque:3.5 N*m
	7002096	BLD T15/S7	Torx blade	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7003805	SW6-T-SH	T-handle	Details
	7002853	MM KEY 13X8 (Optional, should be ordered separately)	Wrench-open	Details
