Family Designation: MM S-A-SK

DIN 69871 integral tapered shanks mount MULTI-MASTER milling heads

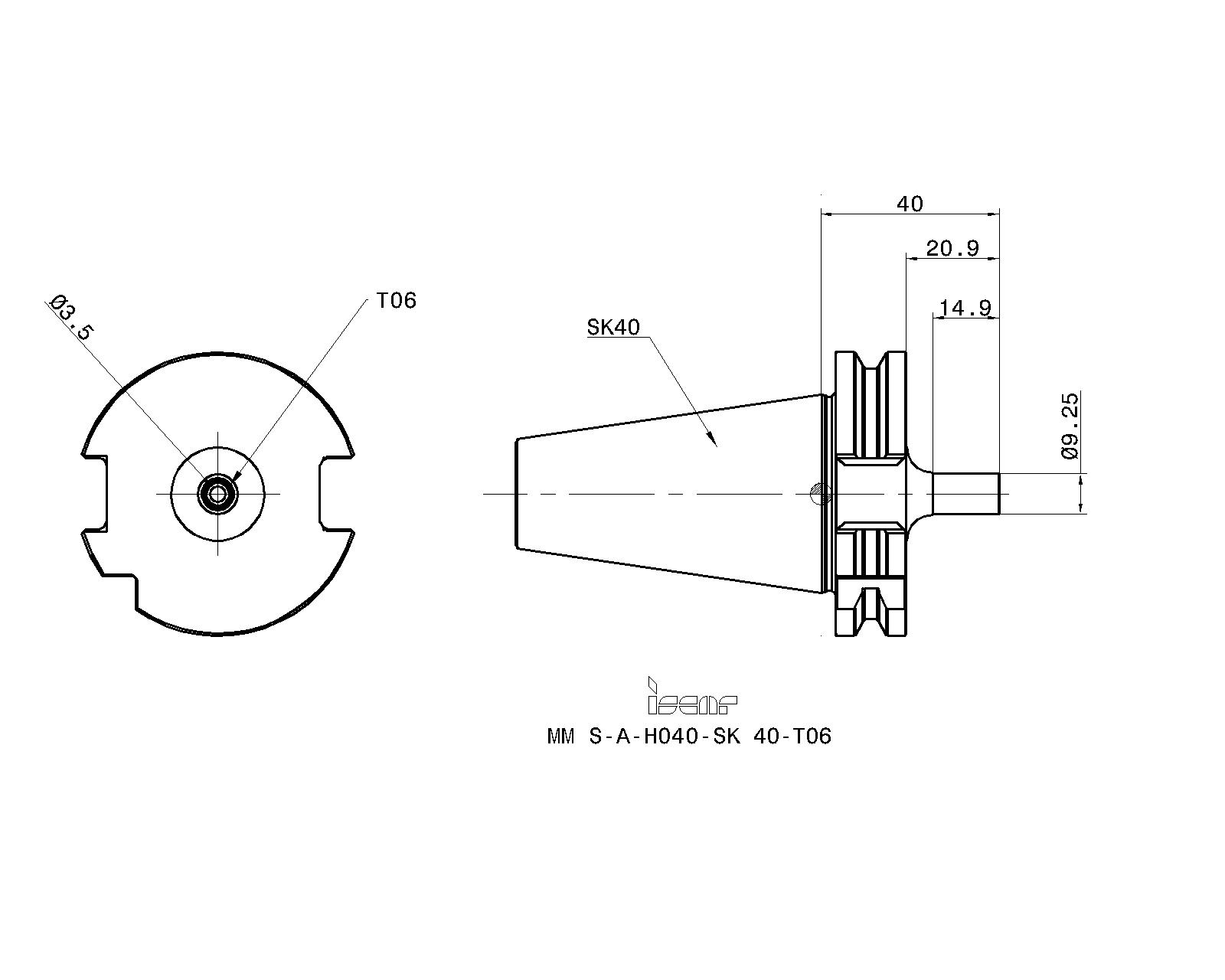

Item Designation: MM S-A-H040-SK 40-T06

DCONMS	SS	CZCMS	CRKS	THSZWS	BD	LPR	LBX	LU	RE	OAL	e	BMC	DF		Mod		BSC	CCFMS	CCFWS	CCMS	CCTMS	CCTWS	CCWS	ClssID	CNSC	CSP	CUBPMS	CUBPWS	CXSC	CZCWS	GTC	HTA	ISCTMP	ISYC	LS	LTA	TCDCONMS	TCDCONWS	UST	WTA	GICAT	GIREM	giic
40.00	40~	0400~	M16	T06	9.25	40.00	21.0	15.00	6.0	108.40~	~	S~	63.55~	Y~	-~	0.86	0~	17~	01~	SKG17C0400$$$$~	SKG~	SAI~	SAI01C0060$$$$~	71EAD3871D313~	~	0~	C~	C~	0~	0060~	~	~	DIN69871MultiMaster~	401-01~	68.4~	40.00~	$$$$~	$$$$~	M~	~	3106912		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3106912		3	0	96				<a href="javascript:OpenDxf('3106912', 'MM S-A-H040-SK 40-T06' , 'IscarDxf' , '3106912-MM S-A-H040-SK 40-T06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106912&itemDesc=MM S-A-H040-SK 40-T06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3106912&itemDesc=MM S-A-H040-SK 40-T06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Do not apply lubricant to the threaded connection
For adaptation, click on "More Info"
