Family Designation: MM S-A-C#

MULTI-MASTER threaded connection shanks with a CAMFIX (ISO 26623-1) exchangeable adaptation.

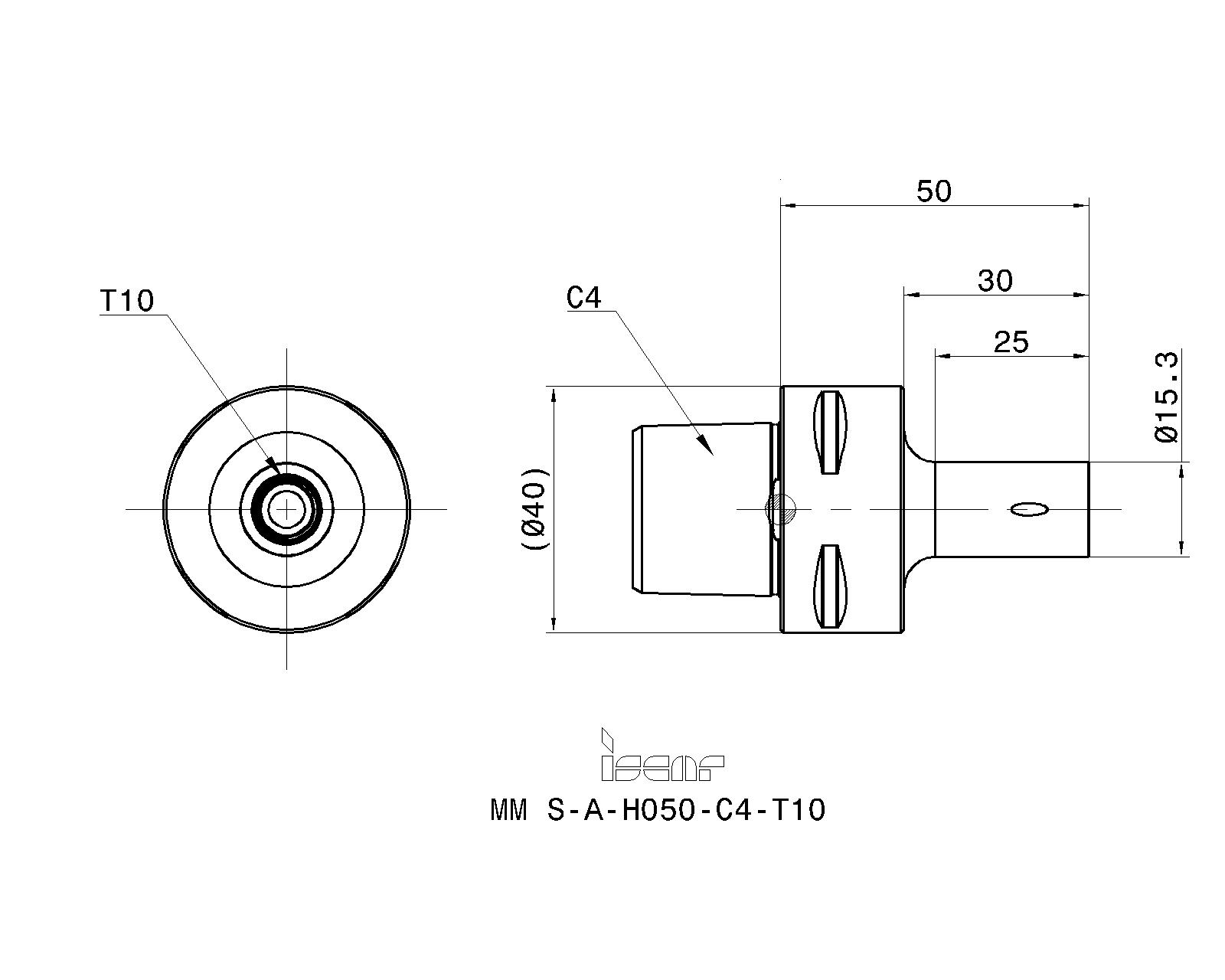

Item Designation: MM S-A-H050-C4-T10

DCONMS	THSZWS	BD	LPR	LBX	LU	CSP	CDI		GICAT	GIREM	giic
40.00	T10	15.30	50.00	30.0	25.00	0~	0	0.28	3107196		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3107196		1	7	7				<a href="javascript:OpenDxf('3107196', 'MM S-A-H050-C4-T10' , 'IscarDxf' , '3107196-MM S-A-H050-C4-T10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3107196&itemDesc=MM S-A-H050-C4-T10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3107196&itemDesc=MM S-A-H050-C4-T10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Do not apply lubricant to the threaded connection
