Family Designation: ETS-LN08-MM

Grooving and slitting cutters with MULTI-MASTER threaded adaptor, that mount tangentially clamped inserts with 4 cutting edges.

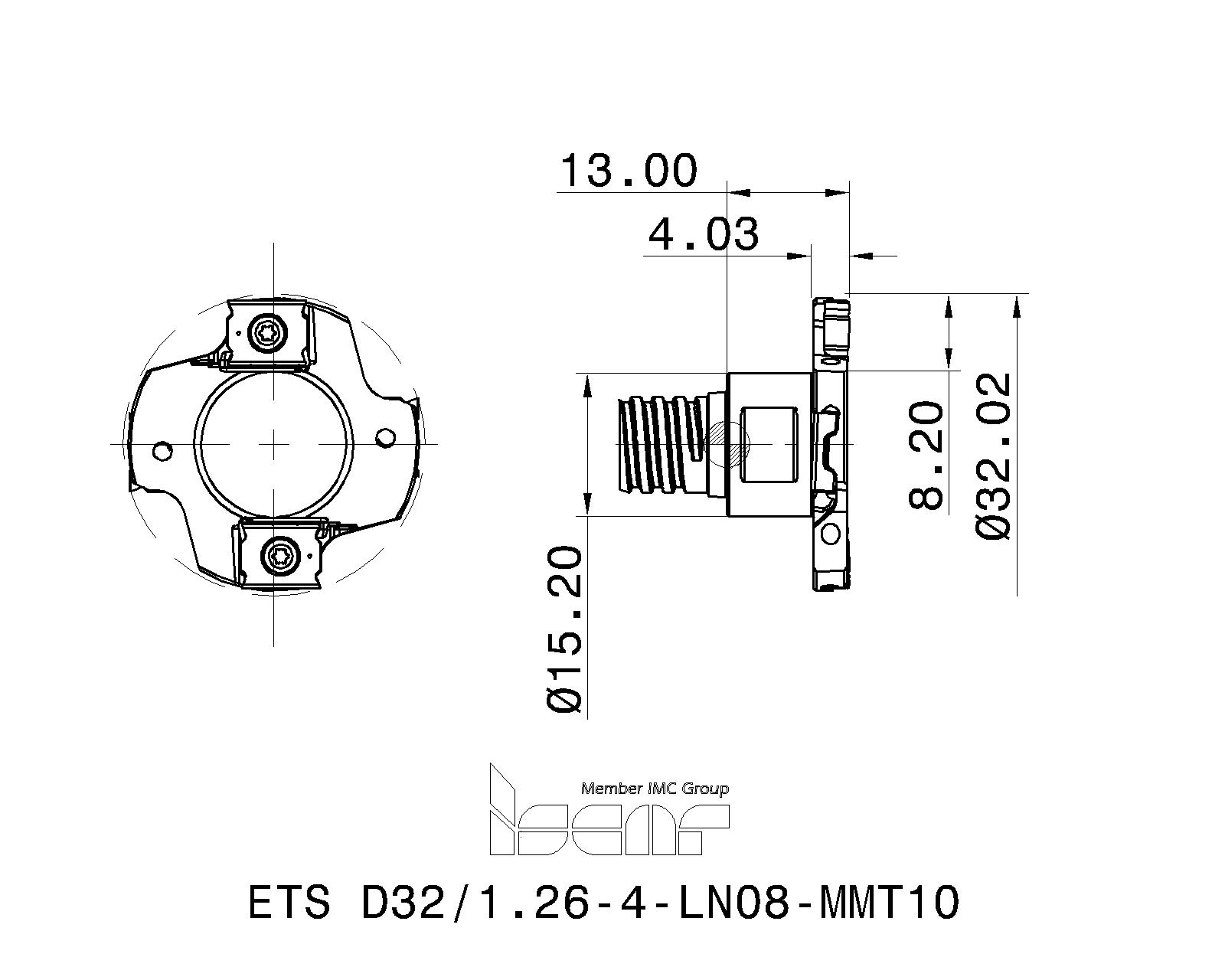

Item Designation: ETS D32/1.26-4-LN08-MMT10

DC	CWN	CWX	CDX	NOF	ZEFP	DCONMS	THSZMS	LF	OAL	DRVS	HAND	MIID	KAPR	CCMS	CICT	CSP	ZEFF	GICAT	GIREM	giic
32.00	4.00	4.50	8.20	4	2	15.20	T10	13.00	24.30	13.0	R~	LNET 082604-TN-N	90.0~	SAI01C0100$$$$~	4~	1~	2~	3107230		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3107230		1	0	31				<a href="javascript:OpenDxf('3107230', 'ETS D32/1.26-4-LN08-MMT10' , 'IscarDxf' , '3107230-ETS D32 1.26-4-LN08-MMT10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3107230&itemDesc=ETS D32/1.26-4-LN08-MMT10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3107230&itemDesc=ETS D32/1.26-4-LN08-MMT10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation, click on "More Info"

Spare Parts
	7003641	SR 114-018-L3.40	Torx screw	Details
Recommended tightening torque:0.6 N*m
	7000428	T-6/5	Torx key flag	Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
	7004473	T-6/3-L	Hex key	Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
