Family Designation: H690 E90AX-10 90° endmills carrying H690 TNKX 1005..triangular inserts with 6 helical cutting edges.


 COOLANT THROUGH TOOL
Item Designation: H690 E90AX D25-4-W25-10
DC CICT  APMX OAL LU DCONMS Shank  RMPX°  CSP  HAND CCMS DCX  KAPR  MIID  NOF  ZEFF GICATGIREMgiic
25.0048.0095.0026.025.00W2.61~R~0.30ZYL10G2500h$06~~90.0~H690 TNKX 10054~4~3107254 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
3107254 01446<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3107254&itemDesc=H690 E90AX D25-4-W25-10"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3107254&itemDesc=H690 E90AX D25-4-W25-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=3107254&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
For adaptation, click on "More Info".
3D Representation
Assembly Video

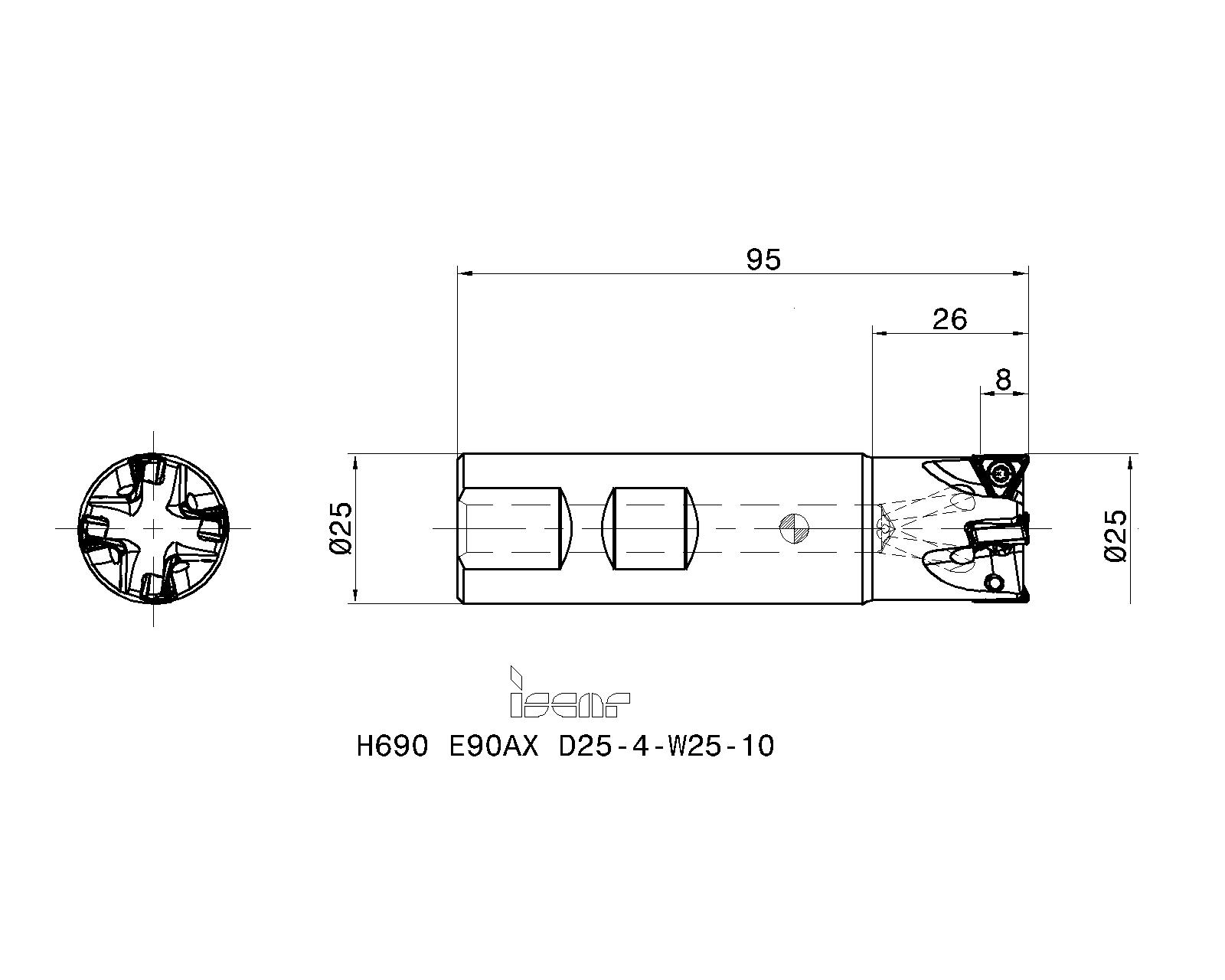

2D Representation
  Spare Parts
7005890SR 10508082-HGTorx screw
Details
Recommended tightening torque:1.2 N*m
7002348BLD T08/M7Torx blade
Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
7002212SW4-SDHandle
Details
