Family Designation: CH45-PN06

Upper and bottom chamfering endmills carrying pentagonal inserts with 5 front and 5 back cutting edges.

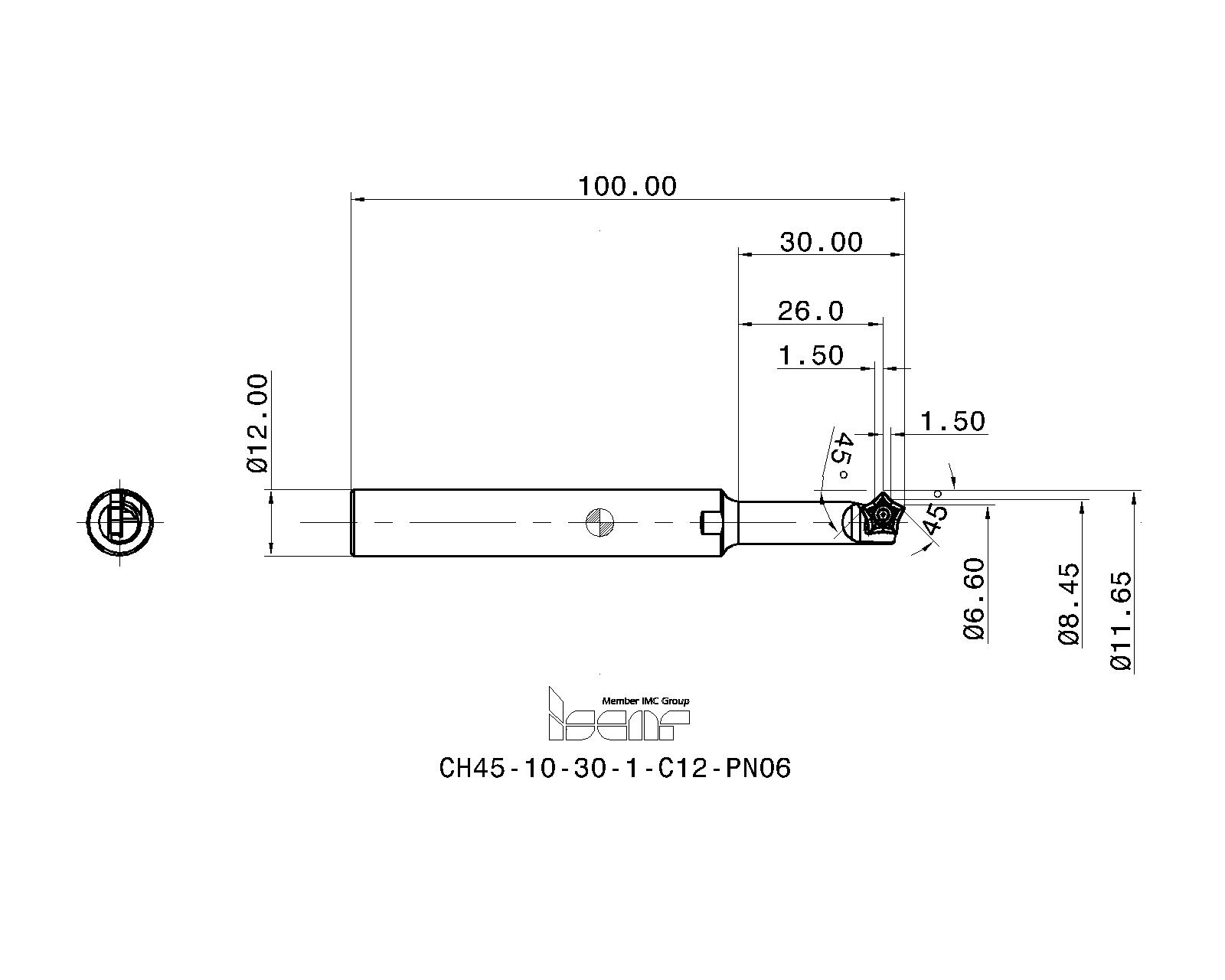

Representative Image

Item Designation: CH45-10-30-1-C12-PN06

DCX	DC_2	DC	APMX	APMX_2	DCONMS	CICT	LU	LU_2	OAL	DMIN		KAPR	HAND	MIID	CCMS	CSP	NOF	RE	RMPX°	THSZMS	ZEFF	GICAT	GIREM	giic
11.70	8.45	6.60	1.50	1.50	12.00	1	29.40	25.40	100.00	10.00	0.00	45.0~	R~	PNMT 0602	0000~	~	~	~	~	~	~	3107351		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3107351		1	0	416			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3107351&cat=3107351&itemDesc=CH45-10-30-1-C12-PN06"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>	<a href="javascript:OpenDxf('3107351', 'CH45-10-30-1-C12-PN06' , 'IscarDxf' , '3107351-CH45-10-30-1-C12-PN06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3107351&itemDesc=CH45-10-30-1-C12-PN06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3107351&itemDesc=CH45-10-30-1-C12-PN06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1

3D Representation

Light

Detailed

Spare Parts
	7006639	SR M2.5X5-T7-60	Torx screw	Details
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
