Family Designation: MTE D-C

Indexable threading endmills with long cylindrical carbide shanks and coolant holes.

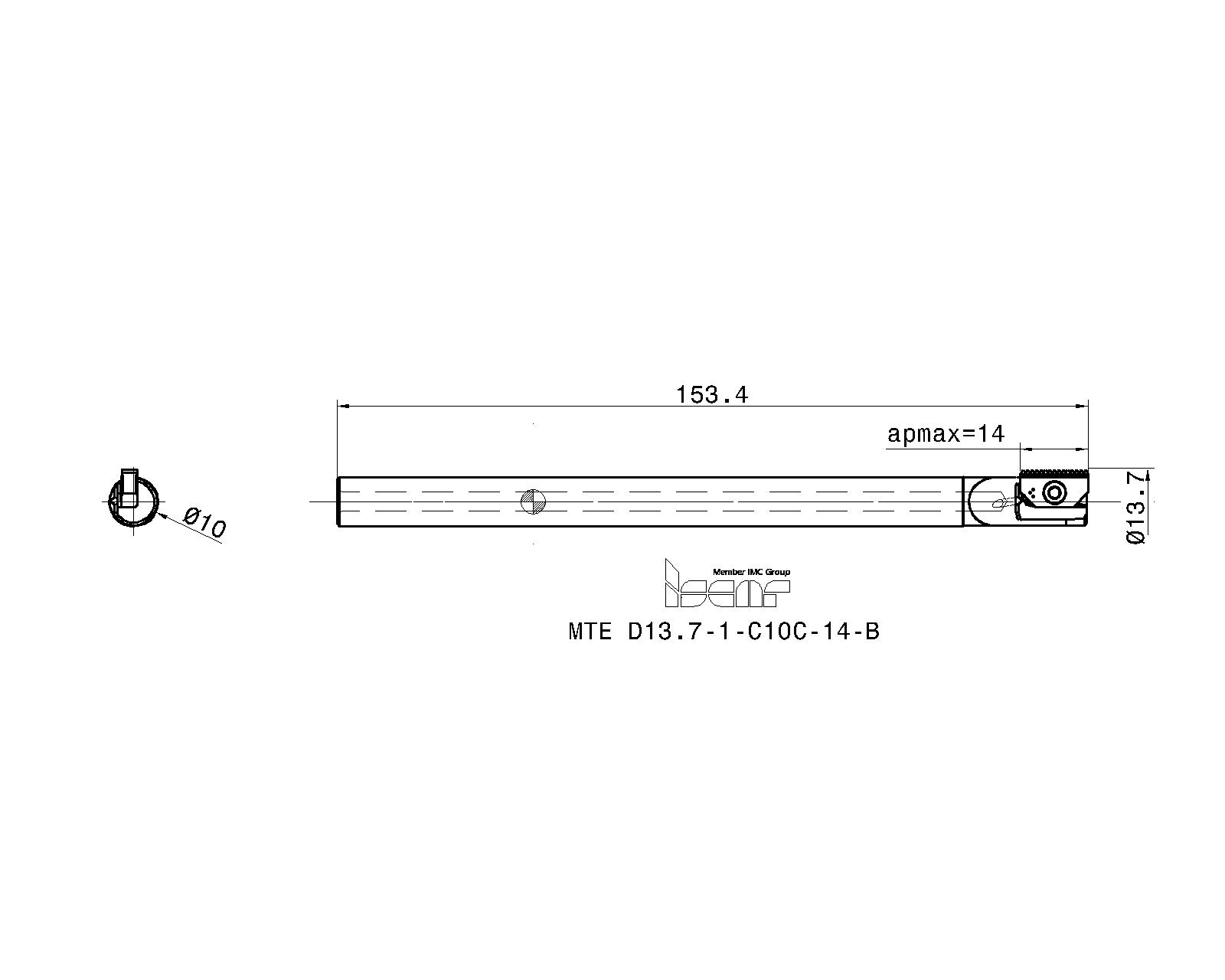

Item Designation: MTE D13.7-1-C10C-14-B

APMX	DC	DCONMS	LU	OAL	Shank		CICT		CSP		Size	Key	BMC	ISYC	fz (min)	fz (max)	CCMS	CCTMS	CCFMS	ISCTMP	ClssID	GTC	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	LTA	SPI	GICAT	GIREM	giic
14.00	13.70	10.00	120.00	153.50	C	1.2	1~	Y~	1~	0.12	1~	C10~	S~	307-06~	0.05~	0.15~	ZYL01~	ZYL~	01~	~	71EF07E083383~	~	IS$$184805036302014~	IS$$207758495177139~	~	~	~	~	113.00~	~	3108489		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3108489		1	0	104				<a href="javascript:OpenDxf('3108489', 'MTE D13.7-1-C10C-14-B' , 'IscarDxf' , '3108489-MTE D13.7-1-C10C-14-B');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3108489&itemDesc=MTE D13.7-1-C10C-14-B"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3108489&itemDesc=MTE D13.7-1-C10C-14-B"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang)

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7060157	SR M2.6-L6.7-S11	Torx screw	Details
	7002348	BLD T08/M7	Torx blade
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
	7002212	SW4-SD	Handle
