Family Designation: MTE D-C

Indexable threading endmills with long cylindrical carbide shanks and coolant holes.

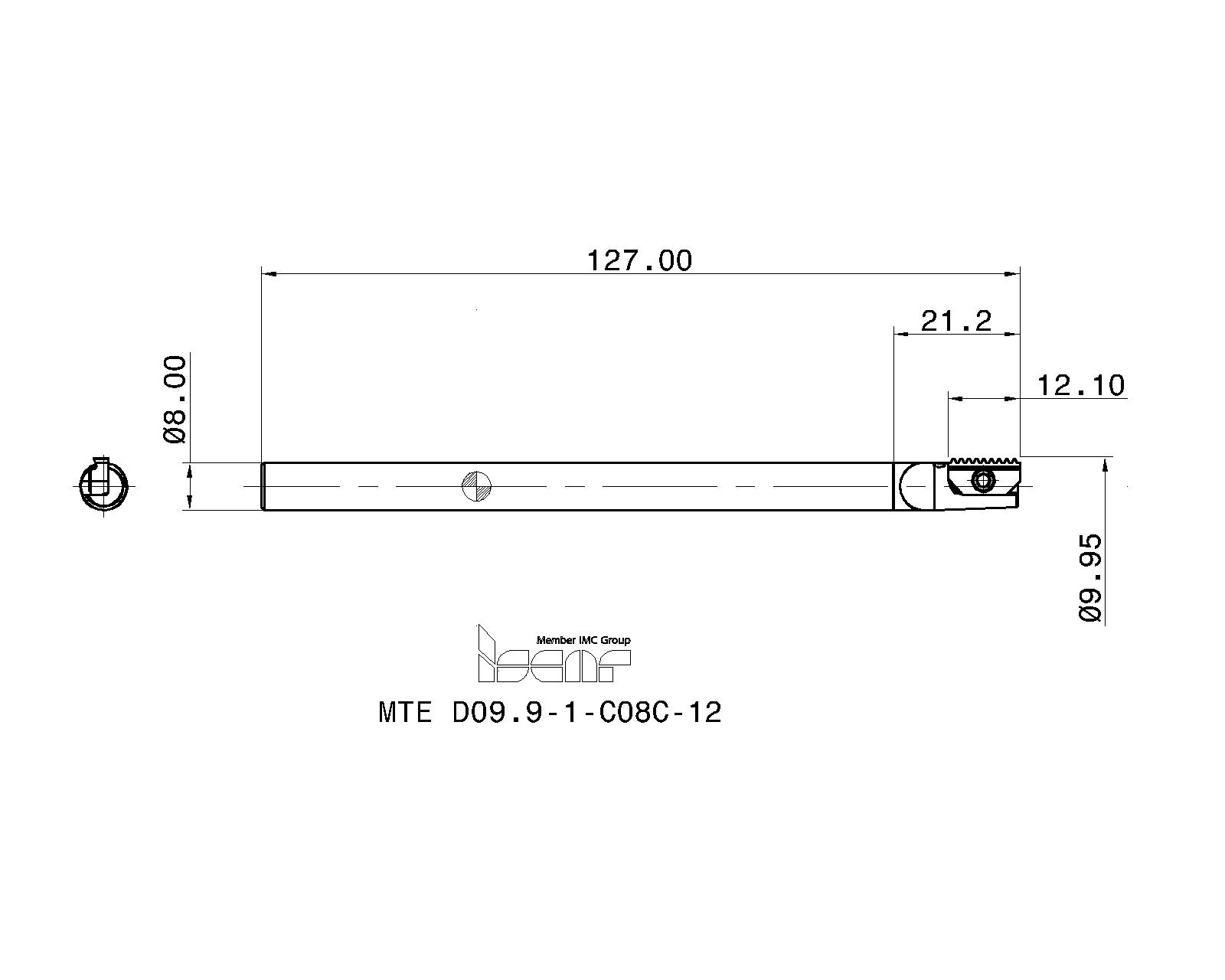

Item Designation: MTE D09.9-1-C08C-12

APMX	DC	DCONMS	LU	OAL	Shank		CICT		CSP		Size	Key	BMC	ISYC	fz (min)	fz (max)	CCMS	CCTMS	CCFMS	ISCTMP	ClssID	GTC	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	LTA	SPI	GICAT	GIREM	giic
12.00	9.90	8.00	94.00	127.00	C	1.2	1~	N~	0~	0.07	1~	C12~	S~	307-06~	0.05~	0.15~	ZYL01~	ZYL~	01~	~	71EF07E083383~	~	IS$$40800563207250~	IS$$61534508573230~	IS$$88936144371672~	~	~	~	91.00~	~	3108490		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3108490		1	0	384				<a href="javascript:OpenDxf('3108490', 'MTE D09.9-1-C08C-12' , 'IscarDxf' , '3108490-MTE D09.9-1-C08C-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3108490&itemDesc=MTE D09.9-1-C08C-12"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3108490&itemDesc=MTE D09.9-1-C08C-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang)

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	3301062	SR M2.5-T8-MT	Torx screw	Details
	7002348	BLD T08/M7	Torx blade
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
	7002212	SW4-SD	Handle
