Family Designation: E45 / T245 45° chamfering endmills.


Item Designation: E45 D12-C20
DC DCX  KAPR  CICT  APMX OAL LH DCONMS Shank  CSP  MIID  L HAND CCMS DMIN RMPX°  ZEFF GICATGIREMgiic
12.0023.2045.0~15.60110.0030.020.00C0SDMT 09030.239.52~R~ZYL01G2000h$06~~0.0~1~3110006 Japanese standard 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3110006 101<a href="javascript:OpenDxf('3110006', 'E45 D12-C20' , 'IscarDxf' , '3110006-E45 D12-C20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110006&itemDesc=E45 D12-C20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3110006&itemDesc=E45 D12-C20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Japanese standard
Items Per Package : 1
For adaptation, click on "More Info".
3D Representation
Assembly Video

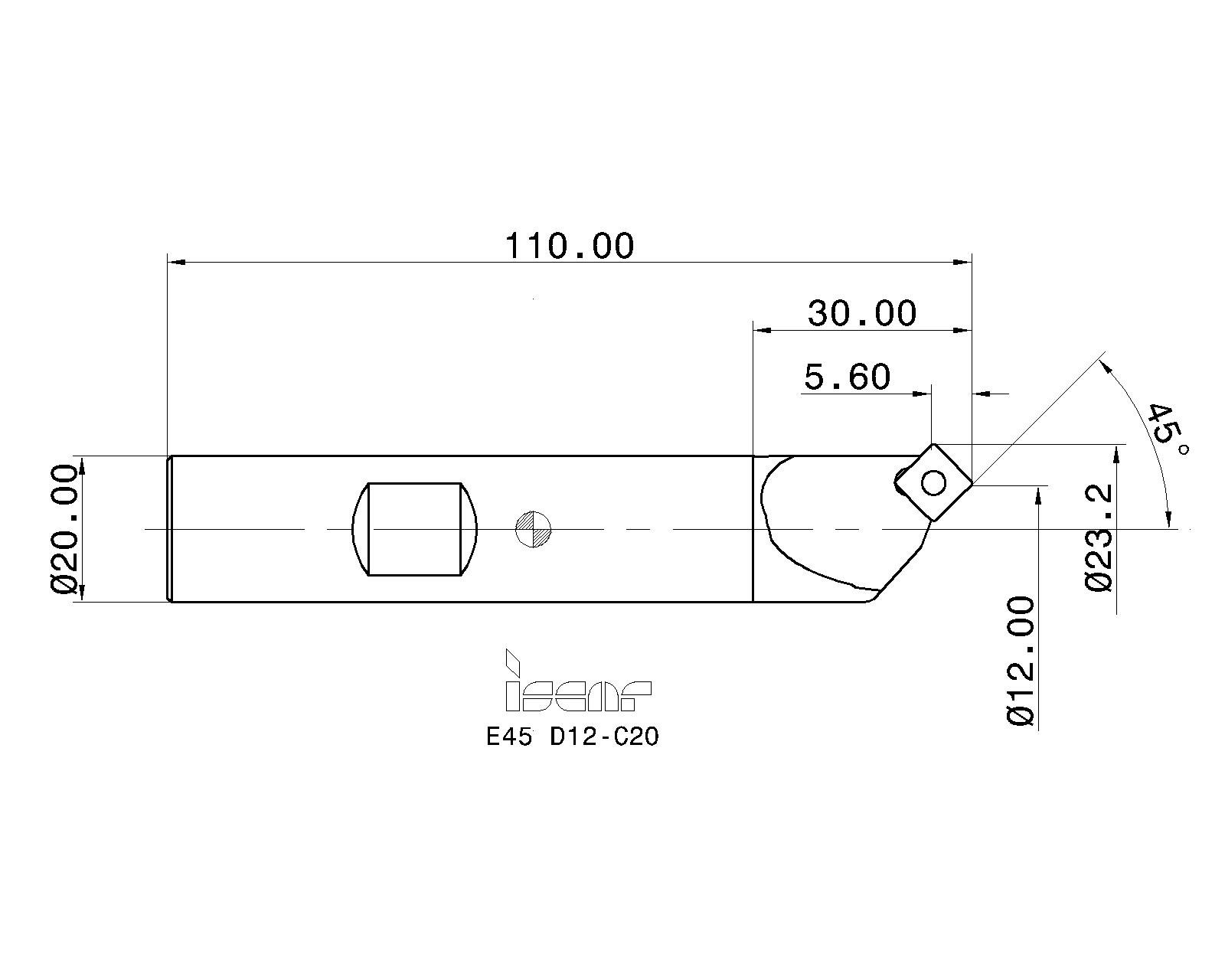

2D Representation
  Spare Parts
7000213SR 14-541Torx screw
Details
Recommended tightening torque:4.8 N*m
7000263T-15/51Torx hand driver
Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
