Family Designation: E90XC

Drilling endmills carrying square S/XOMT inserts

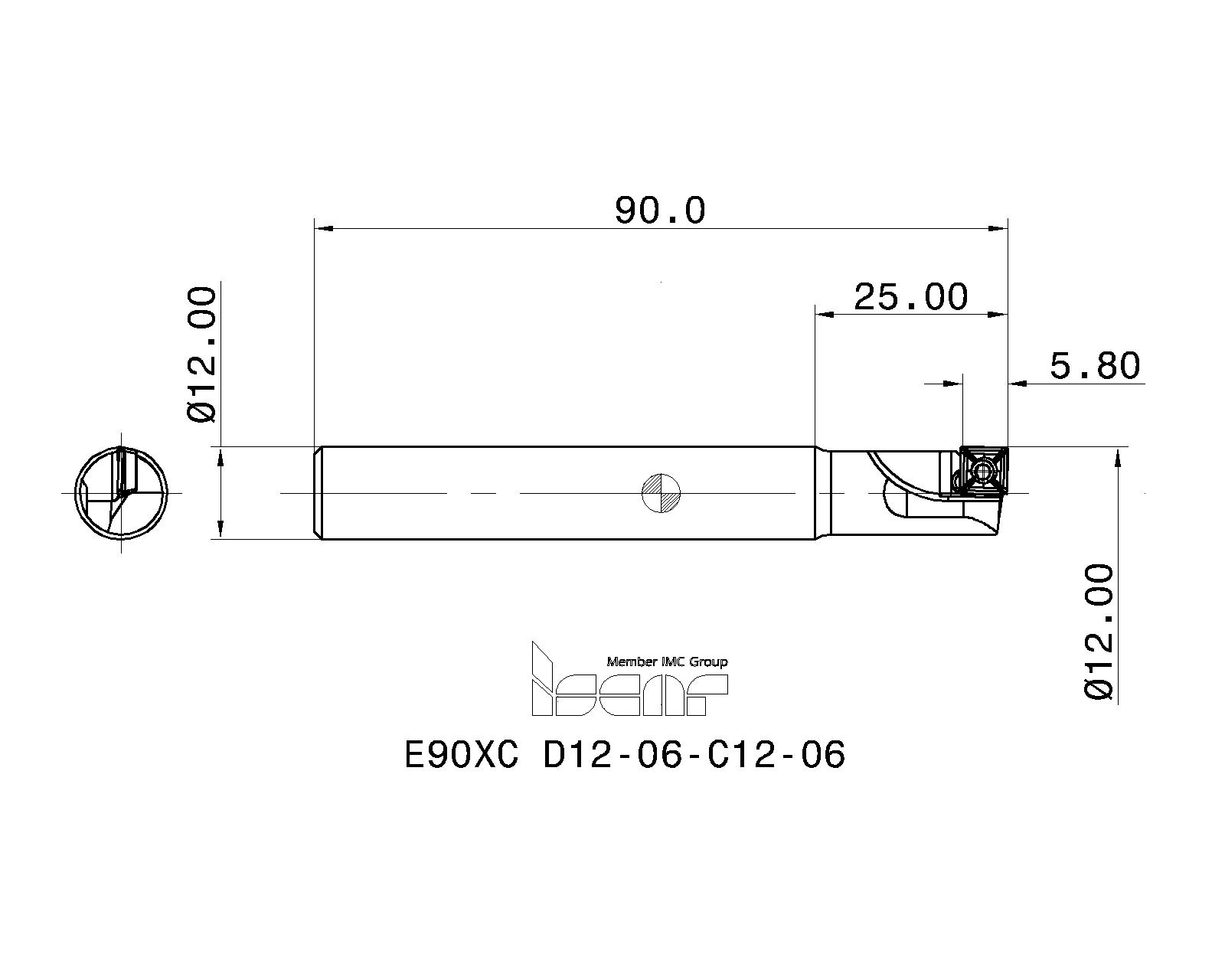

Item Designation: E90XC D12-06-C12-06

DC	CICT	NOF	APMX	LH	OAL	DCONMS	Shank	CSP		L	RMPX°	HAND	MIID	CCMS	KAPR	LU	ZEFF	GICAT	GIREM	giic
12.00	1	1	5.80	25.0	90.00	12.00	C	0	0.07	6.16~	90.0~	R~	SOMT 060204-HQ	ZYL01G1200h$06~	90.0~	~	1~	3110564		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3110564		1	0	304				<a href="javascript:OpenDxf('3110564', 'E90XC D12-06-C12-06' , 'IscarDxf' , '3110564-E90XC D12-06-C12-06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110564&itemDesc=E90XC D12-06-C12-06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110564&itemDesc=E90XC D12-06-C12-06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info"
Use the XOMT 06.... insert in central face location

Spare Parts
	7000836	SR 34-508 M2.2X0.45	Torx screw	Details
Recommended tightening torque: 0.9 N*m
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
