Family Designation: E90XC

Drilling endmills carrying square S/XOMT inserts

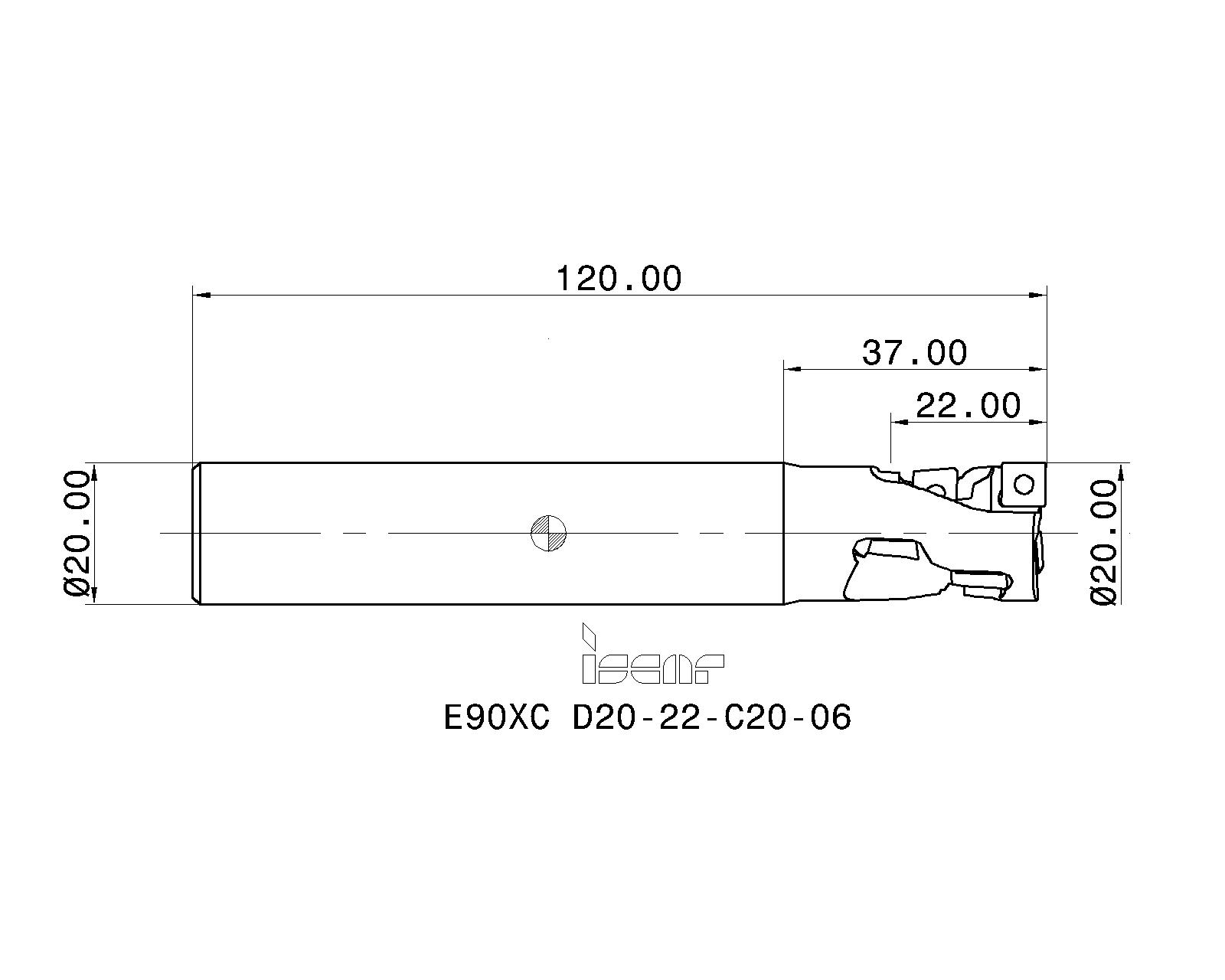

Item Designation: E90XC D20-22-C20-06

DC	CICT	NOF	APMX	LH	OAL	LF	DCONMS	Shank		CSP		Key	L	RMPX°	PD	HAND	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	BMC	CCFMS	CCMS	CCTMS	ZADJ	ZNP	CZCMS	GTC	CUBPMS	TCDCONMS	KAPR	IIC	IIC_2	LTA	LU	SPI	ZEFF	GICAT	GIREM	giic
20.00	5	1	22.00	37.0	120.00	120.00~	20.00	C	Y~	1	0.24	C20~	6.16~	90.0~	XF~	R~	SOMT 060204-HQ	1~	3~	307-09~	GEMLT040020~	71E01A05D27A8~	S~	01~	ZYL01G2000h$06~	ZYL~	0~	4~	2000~	MIL~	G~	h6~	90.0~	IS$$260545318920726~	IS$$481682041716288~	70.00~	~	~	1~	3110566		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3110566		1	0	248				<a href="javascript:OpenDxf('3110566', 'E90XC D20-22-C20-06' , 'IscarDxf' , '3110566-E90XC D20-22-C20-06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110566&itemDesc=E90XC D20-22-C20-06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110566&itemDesc=E90XC D20-22-C20-06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info"
Use the XOMT 06.... insert in central face location

Spare Parts
	7000287	SR 34-508/L	Torx screw	Details
Recommended tightening torque: 0.9 Nm (8lbfin)
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
