Family Designation: SD CAB

Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks.

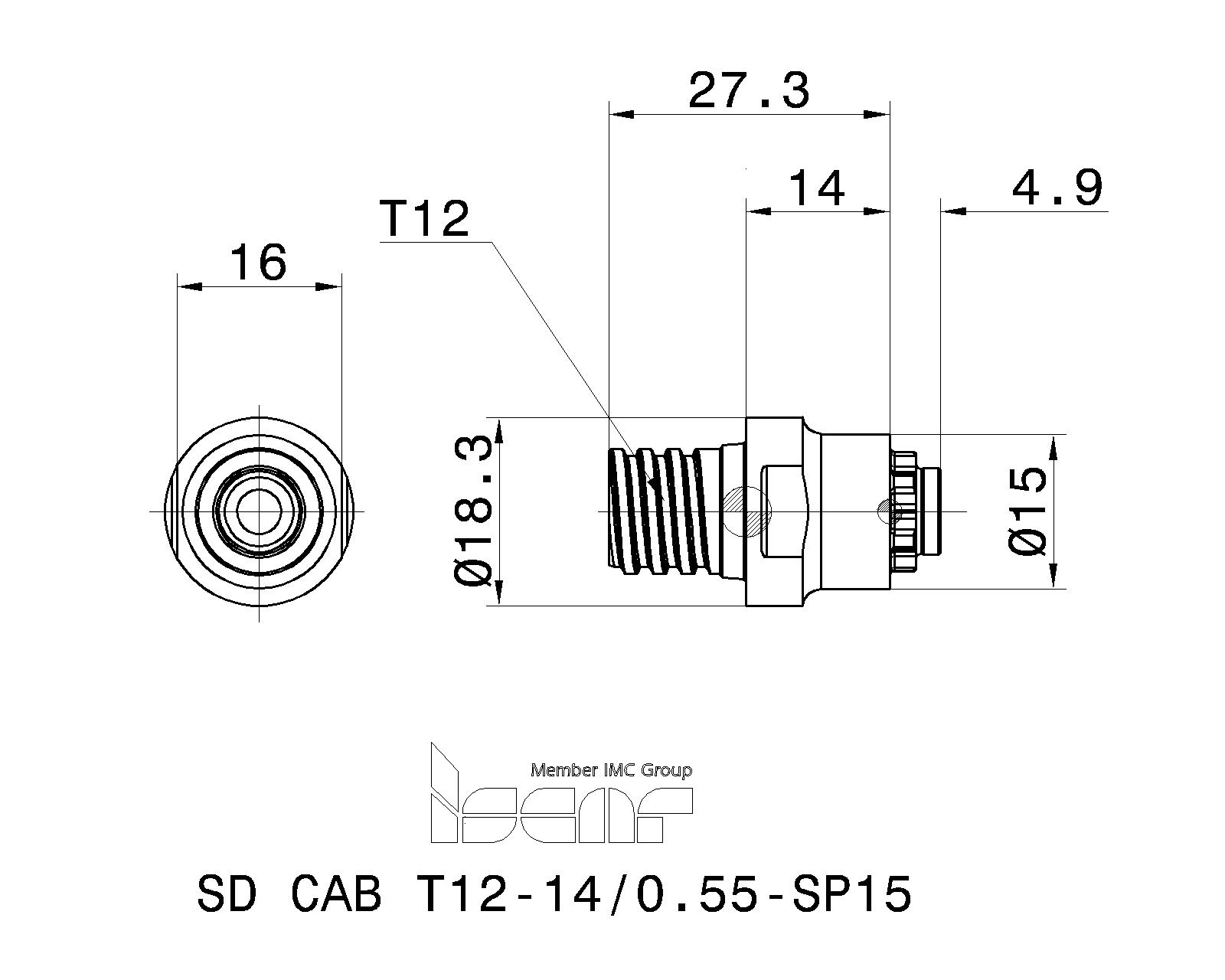

Representative Image

Item Designation: SD CAB T12-14/0.55-SP15

THSZWS	THSZMS	LF	LDRED	OAL	DCONWS	DCONMS	DRVS		GICAT	GIREM	giic
M5x0.5	T12	14.00	4.9	32.70	15.00	18.30	16.0	0.04	3110757		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3110757		1	112	512				<a href="javascript:OpenDxf('3110757', 'SD CAB T12-14/0.55-SP15' , 'IscarDxf' , '3110757-SD CAB T12-14 0.55-SP15');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110757&itemDesc=SD CAB T12-14/0.55-SP15"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110757&itemDesc=SD CAB T12-14/0.55-SP15"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1
Apply lubricant to the screw head and threads

3D Representation

Light

Detailed

Assembly Video

Spare Parts
	7006962	SR M5X0.5-SP15-IP20-HG	Torx screw	Details
Recommended tightening torque:4.0 N*m
	7002553	BLD IP20/S7	Torx blade	Details
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
	7003805	SW6-T-SH	T-handle	Details
