Family Designation: SD S-A-SP

Stepped cylindrical shanks for interchangeable solid carbide milling heads.

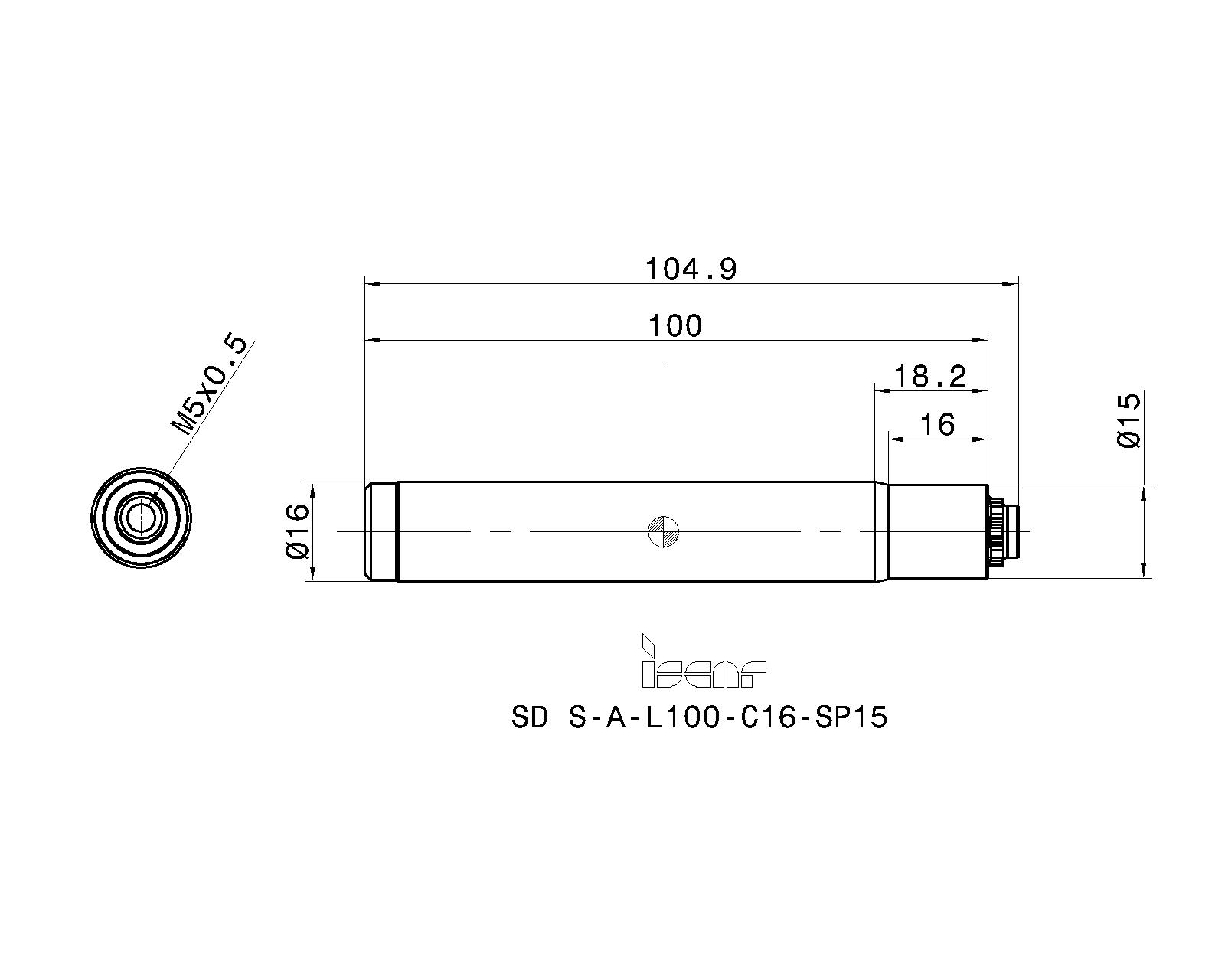

Item Designation: SD S-A-L100-C16-SP15

DCONMS	DCONWS	THSZWS	LDRED	LB	LF	OAL	Shank m.		Shank	Mod	CCTWS	CCFWS	CUBPWS	CZCWS	TCDCONWS	CCWS	CUBPMS	CZCMS	TCDCONMS	CCMS	ISCTMP	BMC	BSC	CCFMS	CCTMS	ClssID	GTC	LTA	GICAT	GIREM	giic
16.00	15.00	M5x0.5	16.00	18.2	100.00	105.00	S	0.16	C~	~	SPI~	01~	C~	0150~	$$$$~	SPI01C0150$$$$~	G~	1600~	h6~	ZYL01G1600h$06~	~	S~	0~	01~	ZYL~	71EAD3871D313~	~	52.00~	3110758		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3110758		1	336	2648				<a href="javascript:OpenDxf('3110758', 'SD S-A-L100-C16-SP15' , 'IscarDxf' , '3110758-SD S-A-L100-C16-SP15');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110758&itemDesc=SD S-A-L100-C16-SP15"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110758&itemDesc=SD S-A-L100-C16-SP15"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Apply lubricant to the clamping screw

Spare Parts
	7006962	SR M5X0.5-SP15-IP20-HG	Torx screw	Details
Recommended tightening torque:4.0 Nm (35 lbfin)
	7002553	BLD IP20/S7	Torx blade
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
	7003805	SW6-T-SH	T-handle
