ISCAR Cutting Tools - Metal Working Tools - P290 EPW : 3110789

Geometry Checker ×

Family Designation: P290 EPW

Long reach endmills carrying 12 and 18 mm long edged inserts.

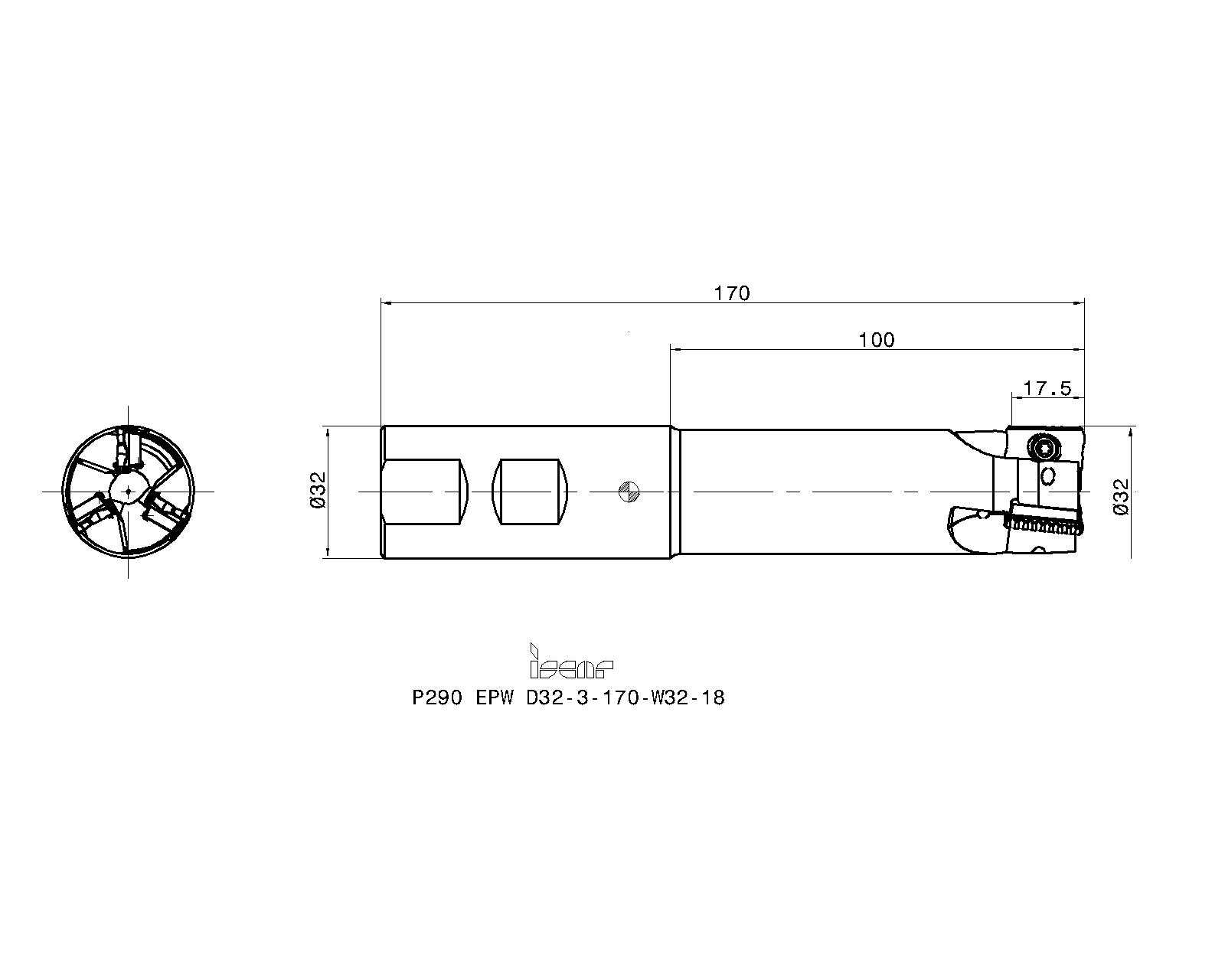

Item Designation: P290 EPW D32-3-170-W32-18

Ord	DC	APMX	CICT	LH	OAL	DCONMS	Shank	RMPX°			HAND	Insert	PD	PD-FW	PD-HL	PD-TL	Mod	Pocket	Ap Back	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	NOF	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	GTC	KAPR	APMX_2	ClssID_2	CSP	CUBPMS	CZCMS	DC_2	DCX	GTC_2	IIC	IIC_2	IIC_3	ISCTMP_2	ISYC_2	KAPR_2	LF	LF_2	LH_2	LTA	LTA_2	LU	LU_2	MIID_2	OAL_2	RMPX°_2	RPMX	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
55~	32.00	18.00	3	100.0	170.00	32.00	W	2.0	Y~	0.84	R~	P290 ACKT 1806~	S5~	S11~	S99~	S11~	100~	P290 ACKT 1806~	0.40~	P290 ACKT 1806PDR-FW	1~	2~	307-01~	GEMLT010020~	71E01A05D27A8~	3~	0~	3~	S~	ZYL~	10~	ZYL10G3200h$06~	MILSQI_MZYL10~	90.0~	~	~	1~	G~	3200~	~	~	~	IS$$531538794456250~	IS$$541201757337500~	IS$$579814995082585~	~	~	~	134.00~	~	~	110.00~	-~	~	~	~	~	~	~	h6~	M~	3~	3~	3110789		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3110789		1	0	184				<a href="javascript:OpenDxf('3110789', 'P290 EPW D32-3-170-W32-18' , 'IscarDxf' , '3110789-P290 EPW D32-3-170-W32-18');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110789&itemDesc=P290 EPW D32-3-170-W32-18"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110789&itemDesc=P290 EPW D32-3-170-W32-18"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7000402	SR 14-544/S	Torx screw	Details
Recommended tightening torque:4.8 N*m
	7002095	BLD T15/M7	Torx blade
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7003805	SW6-T-SH	T-handle
