ISCAR Cutting Tools - Metal Working Tools - S M-C-H : 3110844

Geometry Checker ×

Family Designation: S M-C-H

Carbide shanks with coolant channels for tools with FLEXFIT threaded connection.

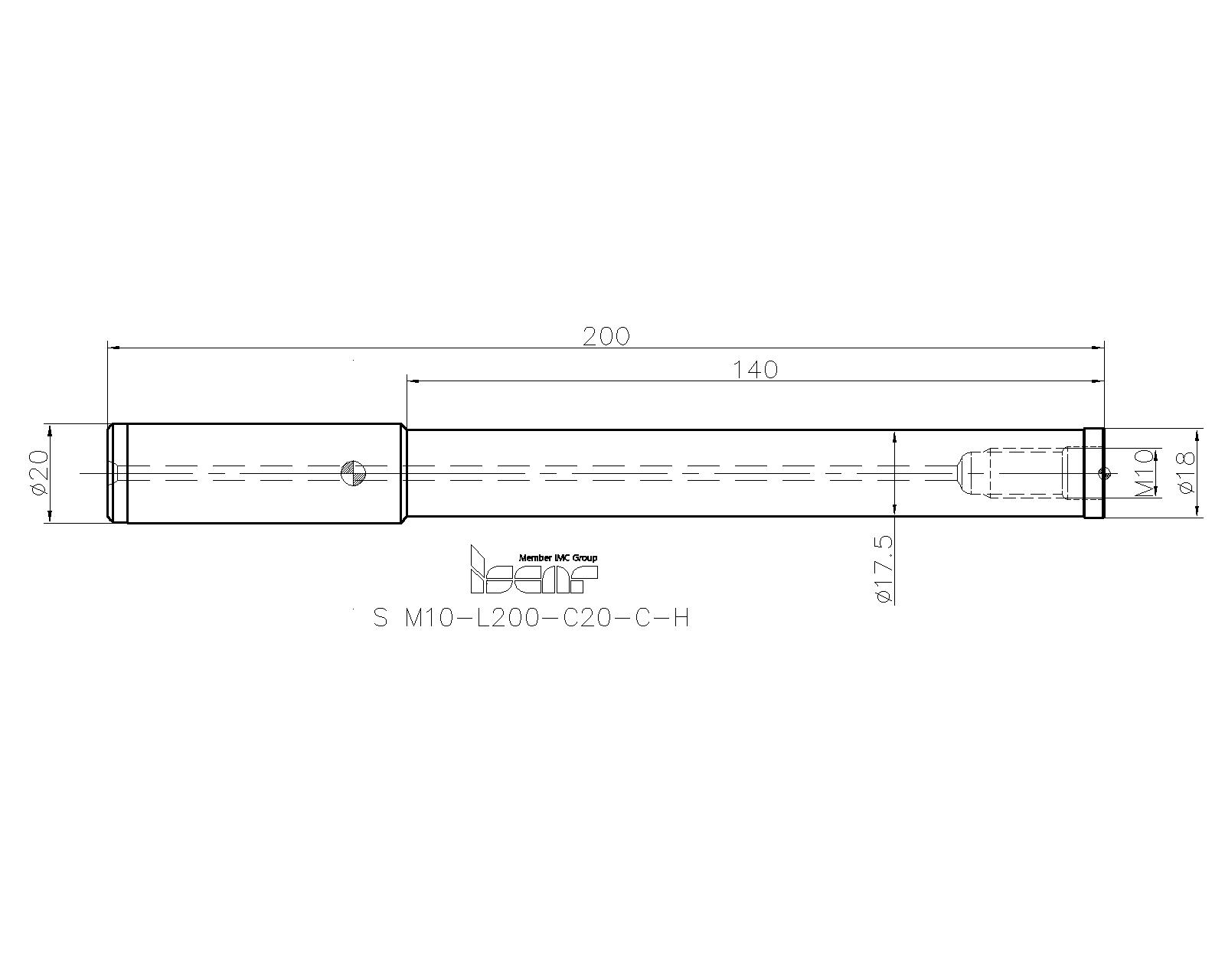

Item Designation: S M10-L200-C20-C-H

DCONMS	THSZWS	OAL	LU	Shank	BD	BD_2		Shank m.	Ord	CSt		CSP	LTA	ISCTMP	BSC	CCFMS	CCFWS	CCTMS	CCTWS	ClssID	CUBPMS	CUBPWS	CZCMS	GTC	GICAT	GIREM	giic
20.00	M10	200.00	140.0	C~	18.00	17.50	0.91	C~	0~	~	Y~	1~	150.00~	~	0~	01~	02~	ZYL~	SAI~	71EAD3871D313~	G~	C~	2000~	~	3110844		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3110844		1	0	16				<a href="javascript:OpenDxf('3110844', 'S M10-L200-C20-C-H' , 'IscarDxf' , '3110844-S M10-L200-C20-C-H');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110844&itemDesc=S M10-L200-C20-C-H"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110844&itemDesc=S M10-L200-C20-C-H"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation click on "More Info"
