ISCAR Cutting Tools - Metal Working Tools - P290 EPW : 3110859

Geometry Checker ×

Family Designation: P290 EPW

Long reach endmills carrying 12 and 18 mm long edged inserts.

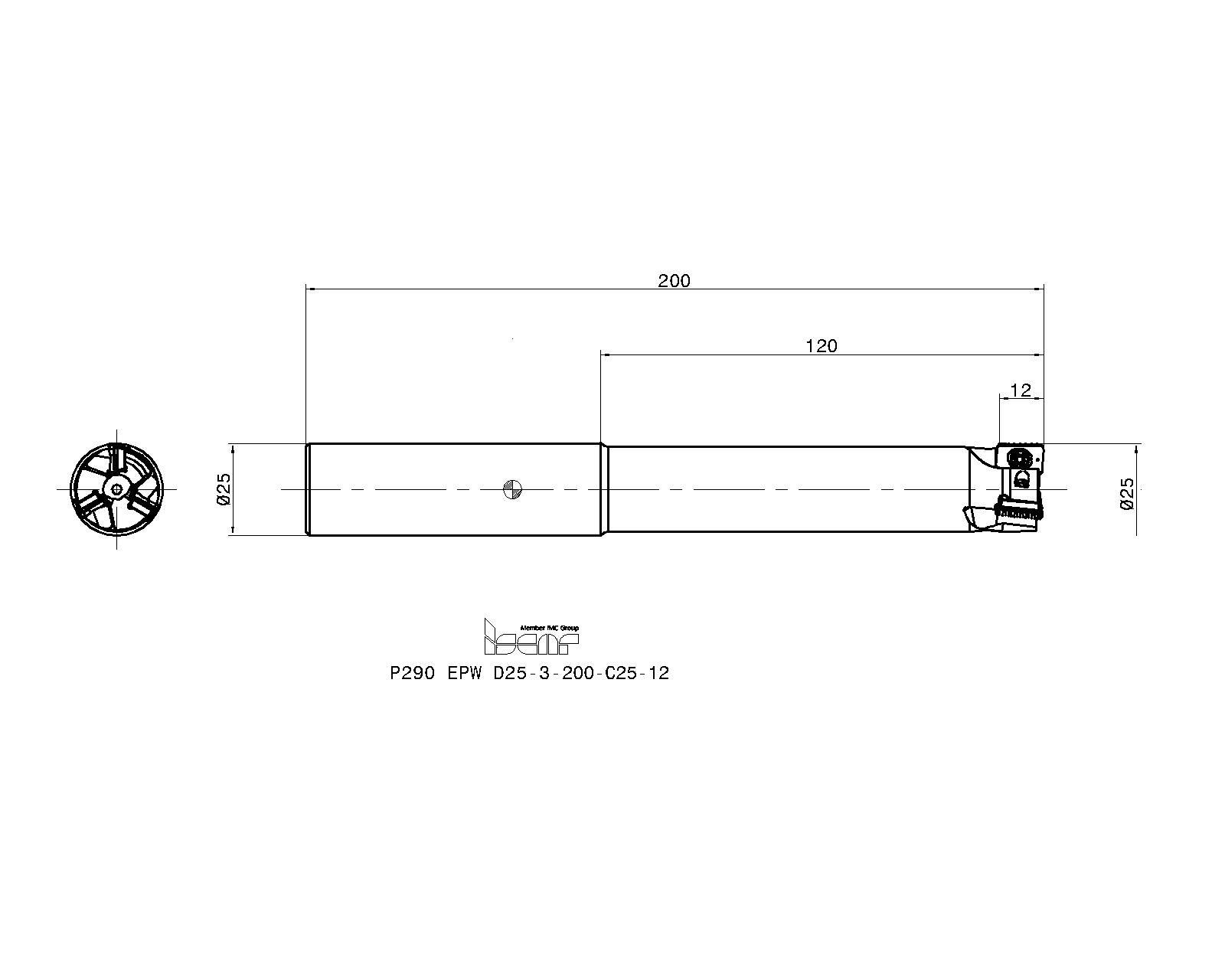

Item Designation: P290 EPW D25-3-200-C25-12

Ord	DC	APMX	CICT	LH	OAL	DCONMS	Shank	RMPX°			HAND	Insert	PD	PD-FW	PD-HL	PD-TL	Mod	Pocket	Ap Back	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	NOF	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	GTC	KAPR	APMX_2	ClssID_2	CSP	CUBPMS	CZCMS	DC_2	DCX	GTC_2	IIC	IIC_2	IIC_3	ISCTMP_2	ISYC_2	KAPR_2	LF	LF_2	LH_2	LTA	LTA_2	LU	LU_2	MIID_2	OAL_2	RMPX°_2	RPMX	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
20~	25.00	12.00	3	120.0	200.00	25.00	C	1.4	Y~	0.62	R~	P290 ACKT 1204~	S5~	-~	-~	-~	100~	P290 ACKT 1204~	0.00~	P290 ACKT 1204PDR-FW	1~	2~	307-01~	GEMLT010020~	71E01A05D27A8~	3~	0~	3~	S~	ZYL~	01~	ZYL01G2500h$06~	MILSQI_MZYL01~	90.0~	~	~	1~	G~	2500~	~	~	~	IS$$428647897965505~	IS$$466777658957175~	~	~	~	~	200.00~	~	~	144.00~	-~	~	~	~	~	~	~	h6~	M~	3~	3~	3110859		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3110859		8	0	264				<a href="javascript:OpenDxf('3110859', 'P290 EPW D25-3-200-C25-12' , 'IscarDxf' , '3110859-P290 EPW D25-3-200-C25-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3110859&itemDesc=P290 EPW D25-3-200-C25-12"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3110859&itemDesc=P290 EPW D25-3-200-C25-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7006979	SR M3X0.5-L7.4 IP9	Torx screw	Details
Recommended tightening torque:2.0 N*m
	7005368	IP-9/151	Torx hand driver	Details
