Family Designation: ERH-A-HS (HSS)

3-5 flute, 30° helix, medium length roughing HSS endmills.

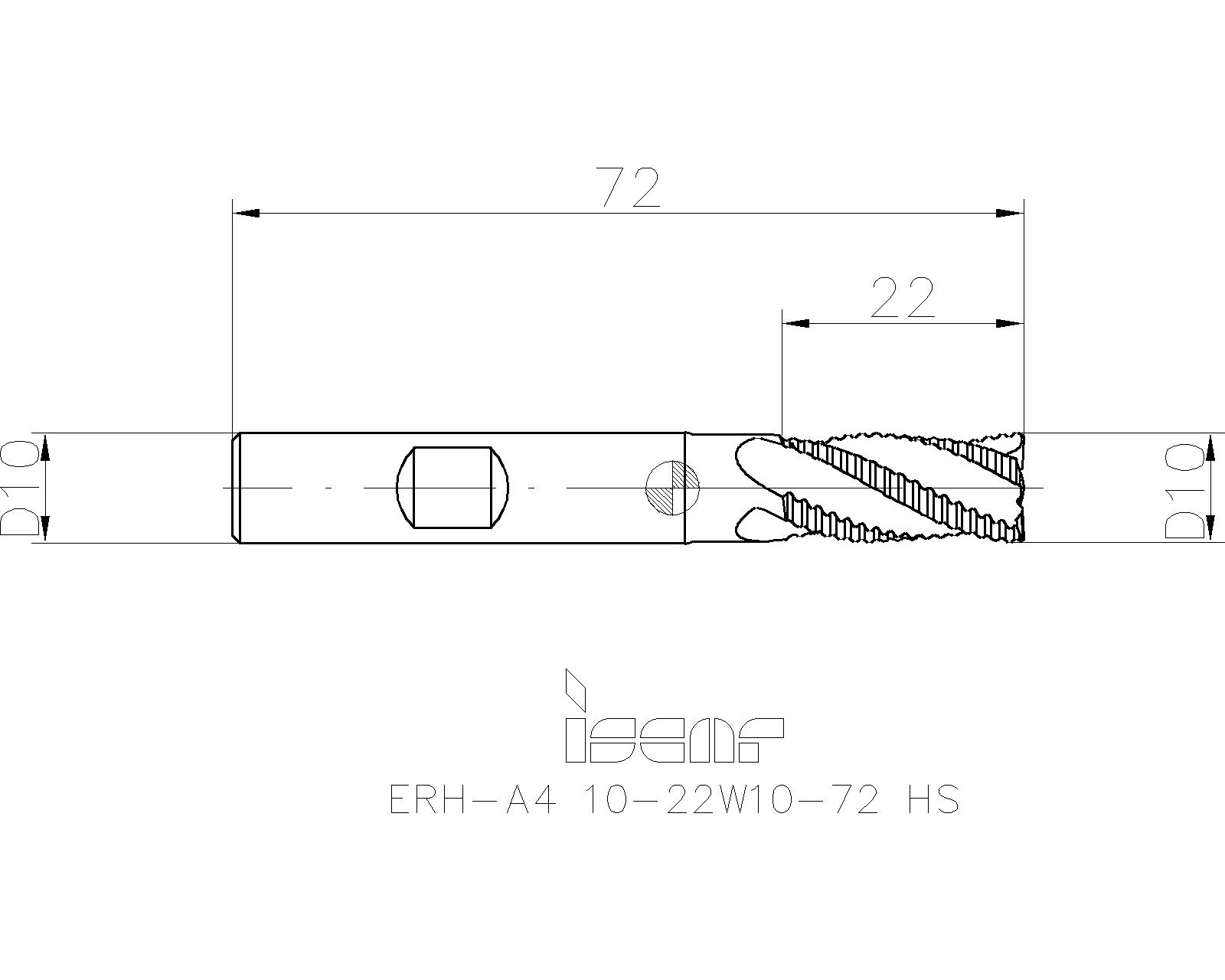

Item Designation: ERH-A4 10-22W10-72 HS

DC	NOF	DCONMS	APMX	OAL	FHA	Shank	RE	RMPX°	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	CutEdMat	Coating	GICAT	GIREM	giic
10.00	4	10.00	22.00	72.00	30.0	W	0.00~	0.0~	ZYL10G1000h$06~	~	0~	MPC ~	R~	90.0~	-~	HSS ~	TiN ~	3121073		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3121073	MPC			8	0	22			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=0&stplFolder=STPL&p21=3121073&cat=3121073&itemDesc=ERH-A4 10-22W10-72 HS"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3121073', 'ERH-A4 10-22W10-72 HS' , 'IscarDxf' , '3121073-ERH-A4 10-22W10-72 HS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3121073&itemDesc=ERH-A4 10-22W10-72 HS"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3121073&itemDesc=ERH-A4 10-22W10-72 HS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

3D Representation	Light Detailed	Not Available 3D Required

2D Representation	ISO	2D Required
