Family Designation: E90CN

90° endmills carrying CNMT/HT .. inserts. Used mainly for milling square shoulders providing excellent finish of the shoulder side surface. They can ramp into the material to machine cavities.

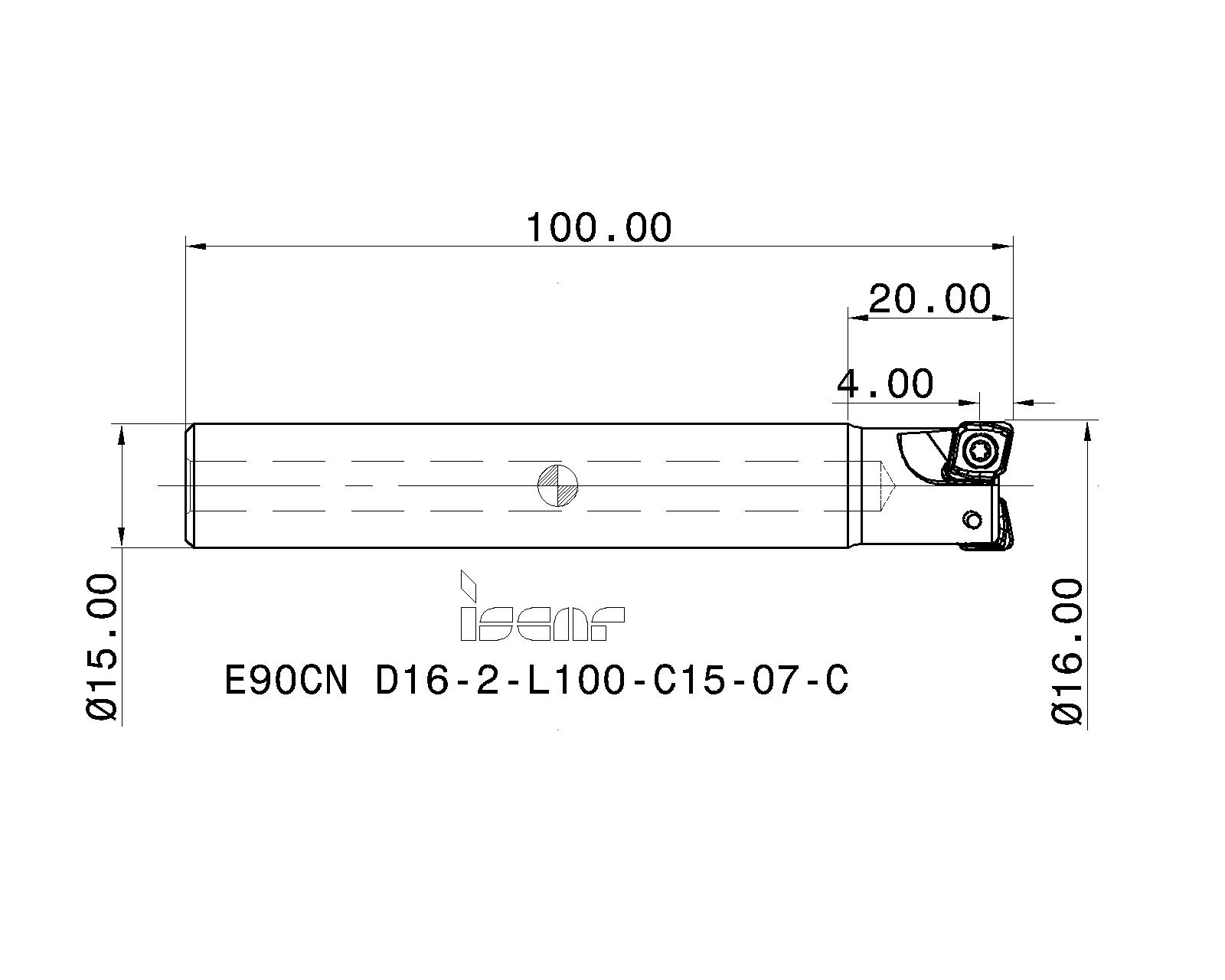

Item Designation: E90CN D16-2-L100-C15-07-C

DC	CICT	APMX	LH	OAL	RMPX°	DCONMS	Shank		IC	Insert	Mod	Pocket	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	BMC	CCFMS	CCMS	CCTMS	NOF	ZADJ	ZNP		GTC	KAPR	APMX_2	ClssID_2	CSP	CUBPMS	CZCMS	DC_2	DCX	GTC_2	HAND	IIC	IIC_2	ISCTMP_2	ISYC_2	KAPR_2	LF_2	LH_2	LTA	LTA_2	LU	LU_2	MIID_2	OAL_2	RMPX°_2	RPMX	SPI	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
16.00	2	4.00	20.0	100.00	5.0	15.00	C~	0.11	7.00~	CNHT 07~	100~	CNHT 07~	CNHT 070315	1~	2~	307-01~	GEMLT010020~	71E01A05D27A8~	S~	01~	ZYL01G1500h$06~	ZYL~	2~	0~	2~	Y~	MILSQI_MZYL01~	90.0~	4.00~	71E01A05D27A8~	1~	G~	1500~	16.00~	~	MILSQI_MZYL01~	R~	IS$$212464432539576~	IS$$58441390148443~	GEMLT010020~	307-01~	90.0~	~	20.0~	55.00~	~	~	~	CNMT 070308~	100.00~	5.0~	~	~	h6~	M~	2~	2~	3135201		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3135201		3	0	16				<a href="javascript:OpenDxf('3135201', 'E90CN D16-2-L100-C15-07-C' , 'IscarDxf' , '3135201-E90CN D16-2-L100-C15-07-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3135201&itemDesc=E90CN D16-2-L100-C15-07-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3135201&itemDesc=E90CN D16-2-L100-C15-07-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation click on "More Info"
Diameter D according to insert r1.0

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7002527	SR 34-505/LHG	Torx screw	Details
Recommended tightening torque:1.2 Nm (10.6lbfin)
	7000274	T-8/53	Torx hand driver	Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
