Family Designation: HM390 ETC-07

90° endmills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges.

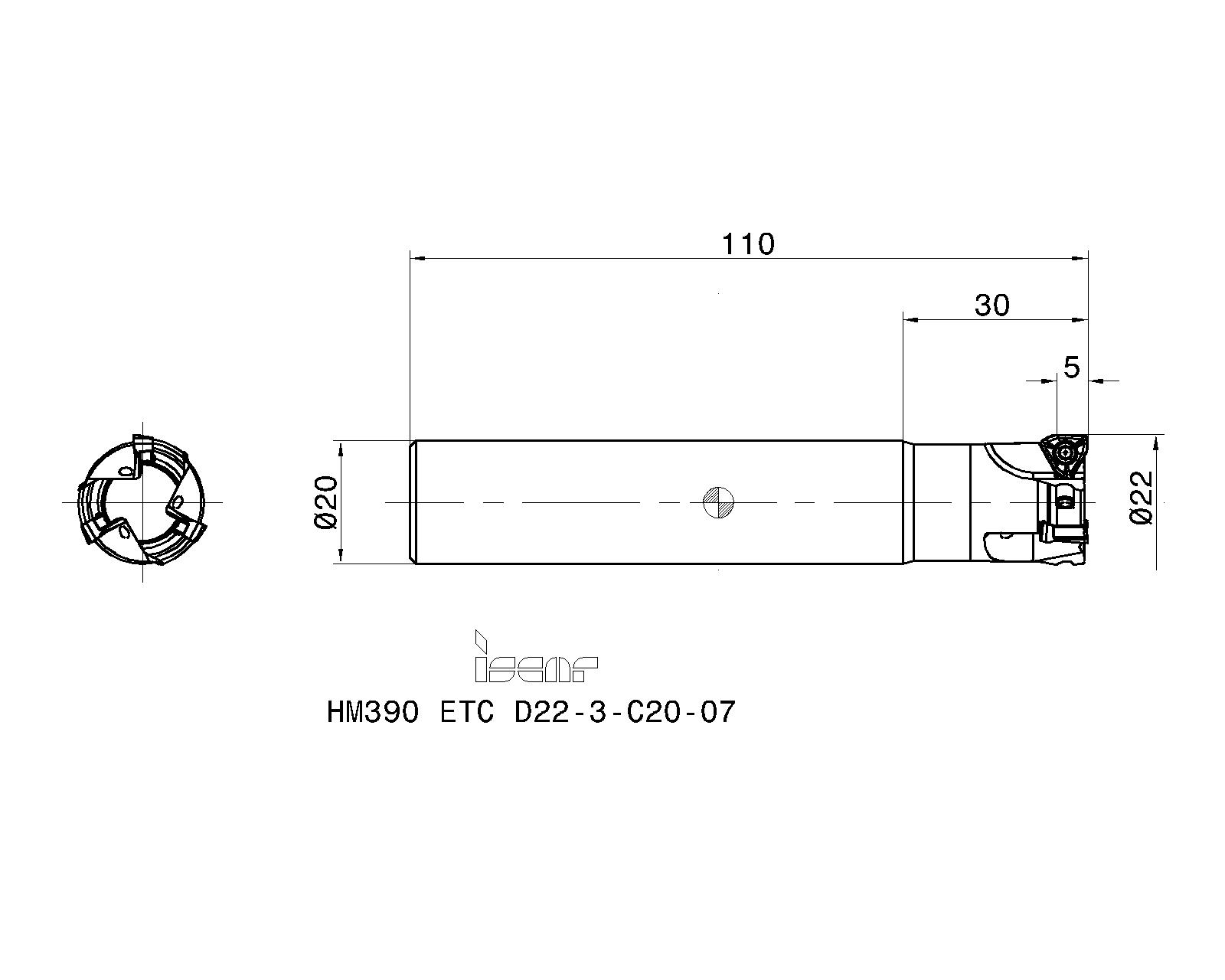

Item Designation: HM390 ETC D22-3-C20-07

DC	APMX	CICT	NOF	ZNP	OAL	LH	DCONMS	Shank	RMPX°			HAND	Insert	Mod	Ap Back	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	GTC	KAPR	Pocket	BMC	CCTMS	CCFMS	PD	APMX_2	CCMS	ClssID_2	CSP	CUBPMS	CZCMS	DC_2	DCX	GTC_2	IIC	ISCTMP_2	ISYC_2	KAPR_2	LF	LF_2	LH_2	LTA	LTA_2	LU	LU_2	MIID_2	OAL_2	RMPX°_2	RPMX	SPI	TCDCONMS	UST	ZADJ	ZEFF	ZEFP	GICAT	GIREM	giic
22.00	5.00	3	3~	3~	110.00	30.0	20.00	C	1.0	0.21	Y~	R~	HM390 TCKT 0703~	100~	0.40~	HM390 TCKT 0703PCTR	1~	2~	307-01~	GEMLT010020~	71E01A05D27A8~	MILSQI_MZYL01~	90.0~	HM390 TCKT 0703~	S~	ZYL~	01~	F~	~	ZYL01G2000h$06~	~	1~	G~	2000~	~	~	~	IS$$367645958701866~	~	~	~	110.00~	~	~	60.00~	0.00~	~	~	~	~	~	-~	~	h6~	M~	0~	3~	3~	3139408		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3139408		1	0	40				<a href="javascript:OpenDxf('3139408', 'HM390 ETC D22-3-C20-07' , 'IscarDxf' , '3139408-HM390 ETC D22-3-C20-07');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3139408&itemDesc=HM390 ETC D22-3-C20-07"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3139408&itemDesc=HM390 ETC D22-3-C20-07"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Insert clamping screw must be lubricated every indexing.
Tightening torque 0.9 Nxm.

Spare Parts
	7006639	SR M2.5X5-T7-60	Torx screw	Details
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
