ISCAR Cutting Tools - Metal Working Tools - E90AC : 3194352 - E90AC D32-25-L250J

Milling
Main Application

Shouldering
Sub Application
Geometry Checker ×

Family Designation: E90AC Drilling endmills carrying APKT/ADKT inserts.


 COOLANT THROUGH TOOL
Item Designation: E90AC D32-25-L250J
DC CICT  NOF  APMX LU LH OAL DCONMS Shank  MIID  L IC RMPX°  HAND CCMS KAPR  CSP  ZEFF GICATGIREMgiic
32.003225.0086.090.0250.0032.00CADCT 1505PDFR-HM1.2215.00~0.00~90.0~R~ZYL01G3200h$06~90.0~1~2~3194352 Japanese standard 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3194352 3016<a href="javascript:OpenDxf('3194352', 'E90AC D32-25-L250J' , 'IscarDxf' , '3194352-E90AC D32-25-L250J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3194352&itemDesc=E90AC D32-25-L250J"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3194352&itemDesc=E90AC D32-25-L250J"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Japanese standard
Items Per Package : 1
For adaptation, click on "More Info".
3D Representation
Assembly Video

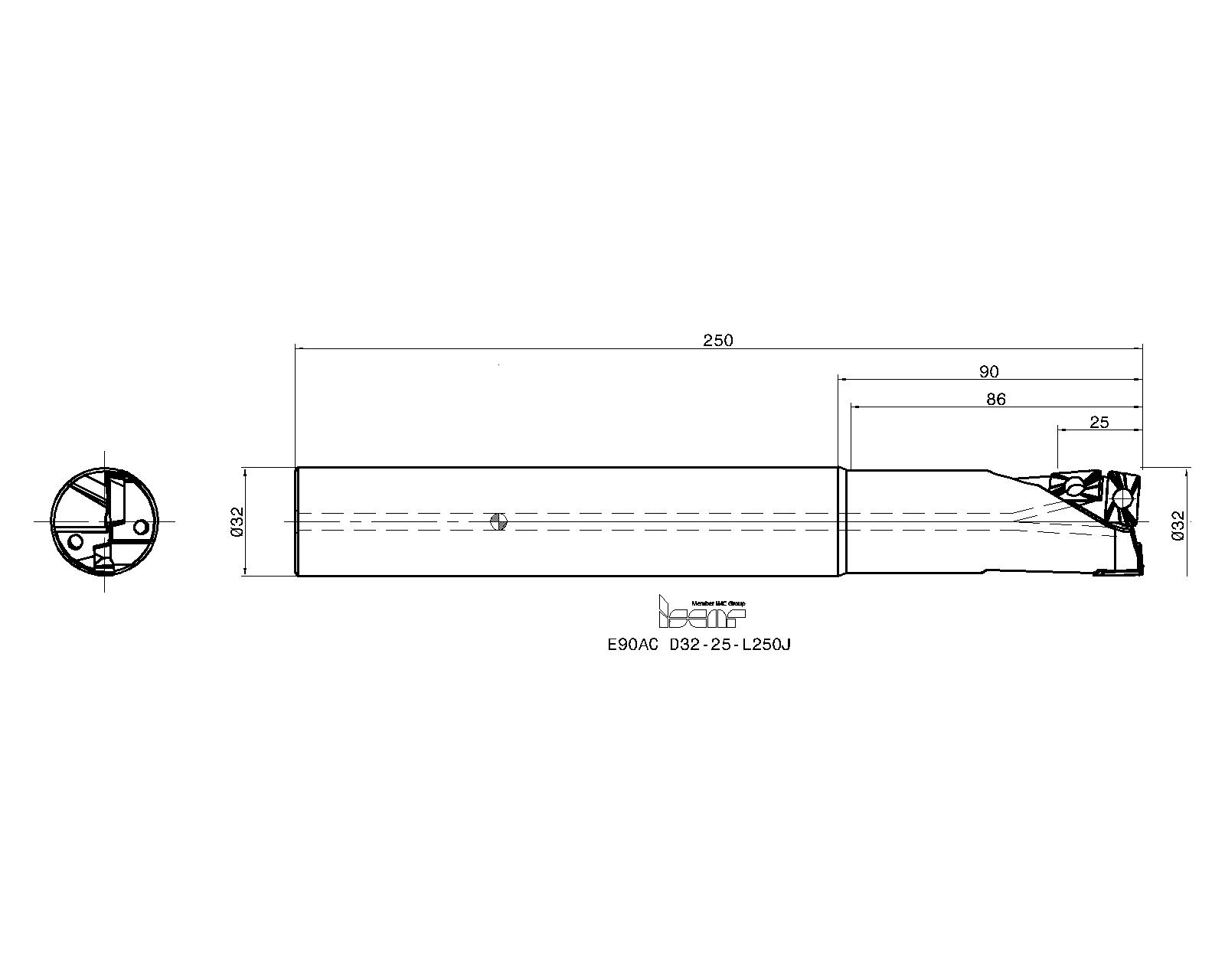

2D Representation
  Spare Parts
7000402SR 14-544/STorx screw
Details
Recommended tightening torque:4.8 N*m
7002095BLD T15/M7Torx blade
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
7002097SW6-TT-handle
