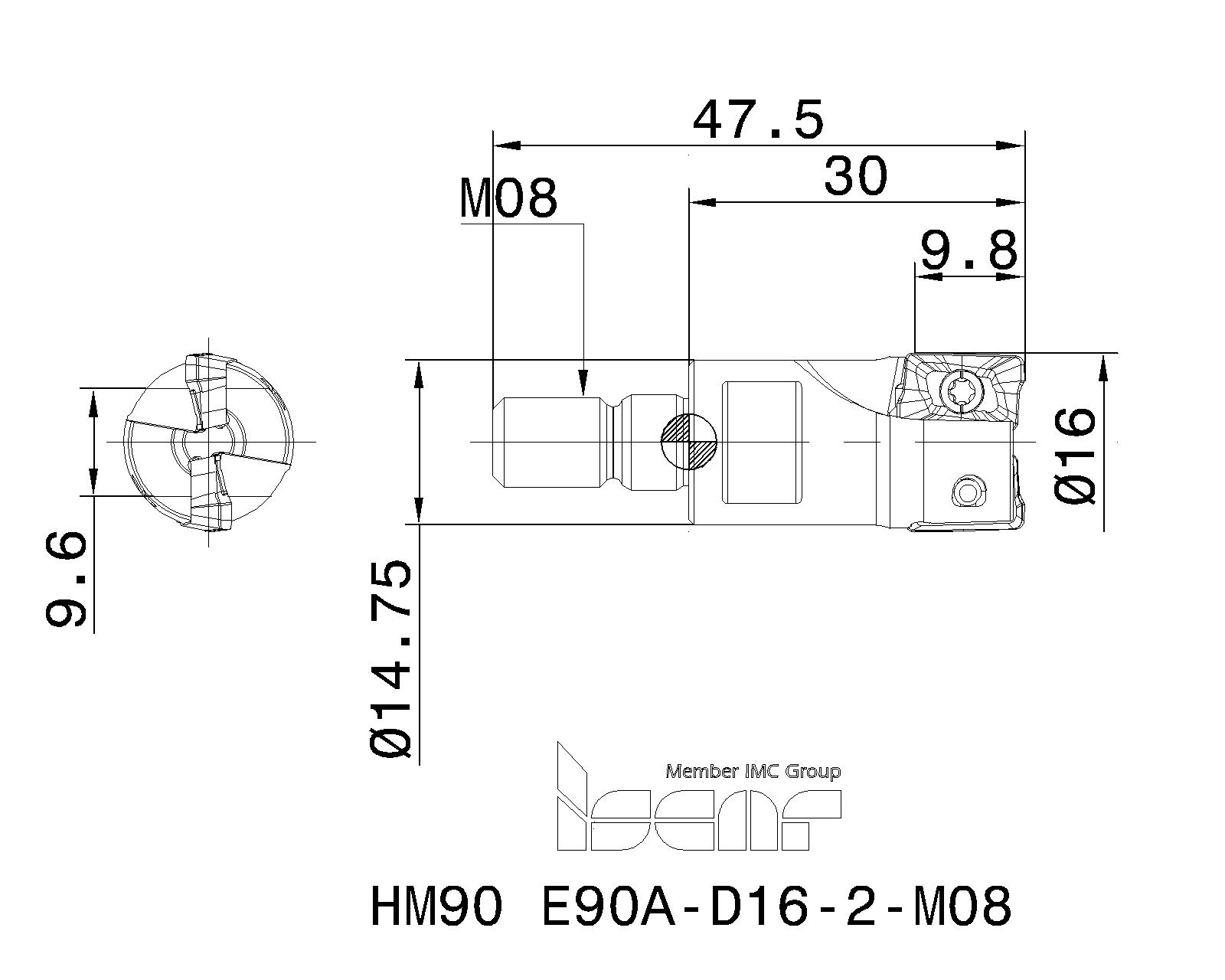

Family Designation: HM90 E90A-M-10 HELI2000 90° endmills with a FLEXFIT threaded adaptation carrying HM90 AP.. 1003... inserts.


Item Designation: HM90 E90A-D16-2-M08
DC CICT  DCONMS THSZMS LH LF OAL APMX RMPX°  RPMX  CSP  DRVS  TQ_3  L HAND CCMS NOF  KAPR  DCX  LU ZEFF GICATGIREMgiic
16.00214.75M0824.030.0047.509.8015.066712010.0200.0310.00~R~SAI02C0080$$$$~2~90.0~~~2~3194670 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3194670 10456<a href="javascript:OpenDxf('3194670', 'HM90 E90A-D16-2-M08' , 'IscarDxf' , '3194670-HM90 E90A-D16-2-M08');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3194670&itemDesc=HM90 E90A-D16-2-M08"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3194670&itemDesc=HM90 E90A-D16-2-M08"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For adaptation, click on "More Info".
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
3D Representation
Assembly Video
2D Representation
  Spare Parts
7002441SR 34-505/HGTorx screw
Details
Recommended tightening torque:1.2 N*m
7002212SW4-SDHandle
Details
7002348BLD T08/M7Torx blade
Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
