Family Designation: DCN R-3D

SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

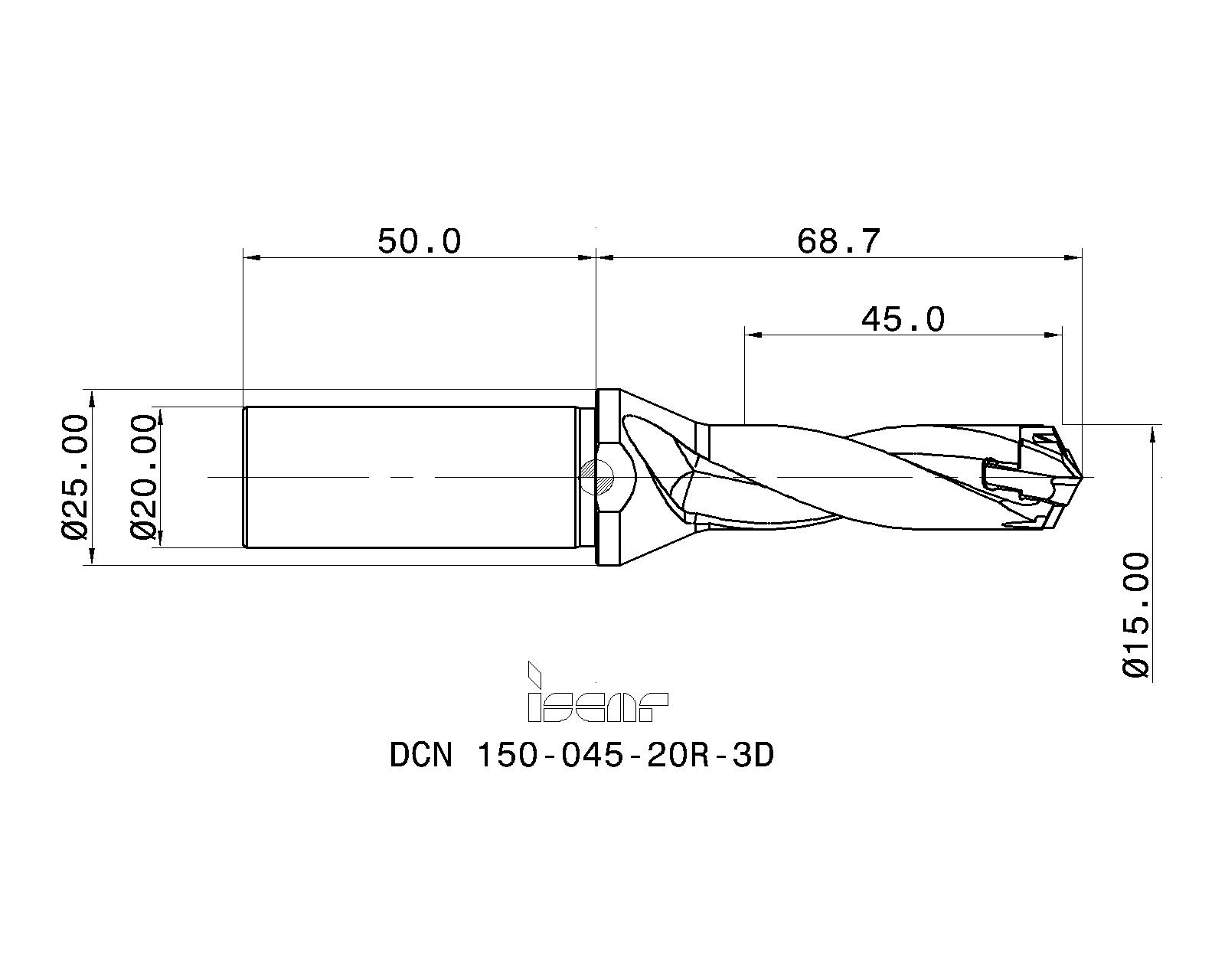

Item Designation: DCN 150-045-20R-3D

DCN	DCX	DCONMS	DF	L	LU	LPR	PL	LS	OAL	SSC	Shank	ULDR	ZEFF		MinTol	MaxTol	Semi- (Q)	Mod	MINI	BMC	LATTH	SFMT	MIID	FHA	ISCTMP	ClssID	DC	EPSR		BD	CCFMS	CCMS	CCTMS	CNSC	CNT	CRKS	CSP	CUBPMS	CXSC	CZCMS	GAMF	GAMP	GTC	HAND	IFS	IIC	IIC_10	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	IIC_7	IIC_8	IIC_9	ISYC	LCF	LF	LSCMS	LSCNMS	LTA	LUX	MTP	NOF	RPMX	SIG	SPI	TCDCONMS	TSYC	GICAT	GIREM	giic
15.00	15.90	20.00	25.00	45.0~	47.27	68.7	2.270	50.0	118.70	15.0	C~	3.0~	2~	Y~	0.000~	0.050~	1~	300~	-~	S~	~	-~	ICP 150	25.0~	GEDRLR~	71E01A0608FE4~	15.00~	0.0~	0.17~	0.00~	01~	ZYL01G2000h$06~	ZYL~	4~	~	~	1~	G~	3~	2000~	0.0~	0.0~	~	R~	0~	IS$$215862349843887~	~	IS$$236985812092488~	IS$$247242753447579~	IS$$247426314930~	~	~	~	~	~	306-10~	0.0~	65.97~	0.00~	0.00~	68.70~	0.00~	~	2~	0~	140~	~	h6~	~	3202802		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA
3202802			144	1264	56				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3202802&itemDesc=DCN 150-045-20R-3D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3202802&itemDesc=DCN 150-045-20R-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3202802&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7003881	K DCN 14-17.99	Clamping key	Details
	7005200	DL-20 (Optional, should be ordered separately)	Coolant fitting	Details
