Family Designation: DCN R-3D

SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

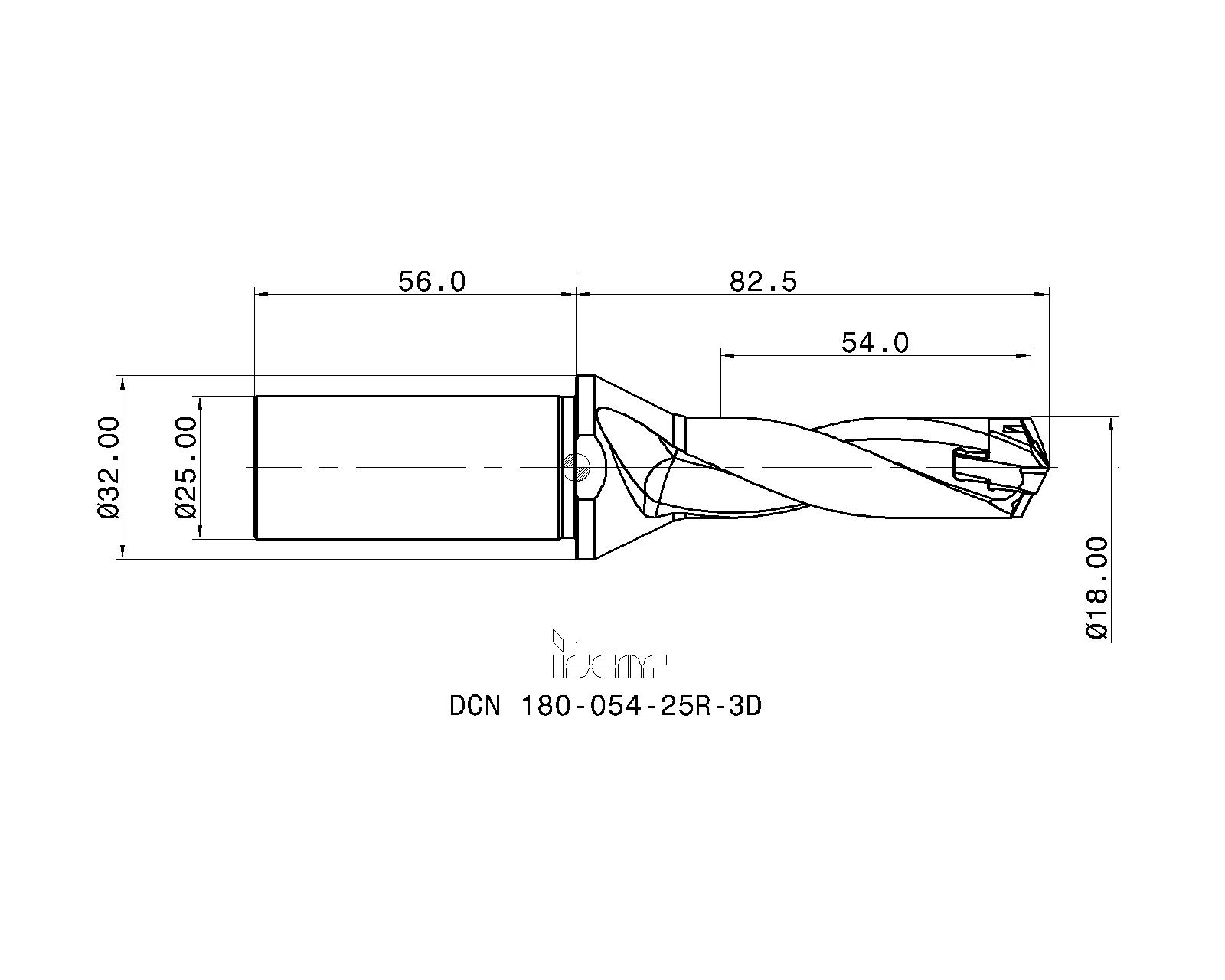

Item Designation: DCN 180-054-25R-3D

DCN	DCX	DCONMS	DF	L	LU	LPR	PL	LS	OAL	SSC	Shank	ULDR	ZEFF		MinTol	MaxTol	Semi- (Q)	Mod	MINI	BMC	LATTH	SFMT	MIID	FHA	ISCTMP	ClssID	DC	EPSR		BD	CCFMS	CCMS	CCTMS	CNSC	CNT	CRKS	CSP	CUBPMS	CXSC	CZCMS	GAMF	GAMP	GTC	HAND	IFS	IIC	IIC_10	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	IIC_7	IIC_8	IIC_9	ISYC	LCF	LF	LSCMS	LSCNMS	LTA	LUX	MTP	NOF	RPMX	SIG	SPI	TCDCONMS	TSYC	GICAT	GIREM	giic
18.00	18.90	25.00	32.00	54.0~	56.73	82.5	2.730	56.0	138.50	18.0	C~	3.0~	2~	Y~	0.000~	0.050~	1~	300~	-~	S~	~	-~	ICP 180	25.0~	GEDRLR~	71E01A0608FE4~	18.00~	0.0~	0.30~	0.00~	01~	ZYL01G2500h$06~	ZYL~	4~	~	~	1~	G~	3~	2500~	0.0~	0.0~	~	R~	0~	IS$$216176473380399~	~	IS$$247369929489396~	IS$$257624487908823~	IS$$257624497513866~	IS$$267881242681416~	IS$$268730664659121~	IS$$278985223078548~	IS$$278985232683591~	IS$$289241977851141~	306-10~	0.0~	79.22~	0.00~	0.00~	82.50~	0.00~	~	2~	0~	140~	~	h6~	~	3202808		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA
3202808			16	656	36				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3202808&itemDesc=DCN 180-054-25R-3D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3202808&itemDesc=DCN 180-054-25R-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3202808&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7003885	K DCN 18-21.99	Clamping key	Details
	7005201	DL-25 (Optional, should be ordered separately)	Coolant fitting	Details
