Family Designation: DCN R-1.5D

SUMOCHAM 1.5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

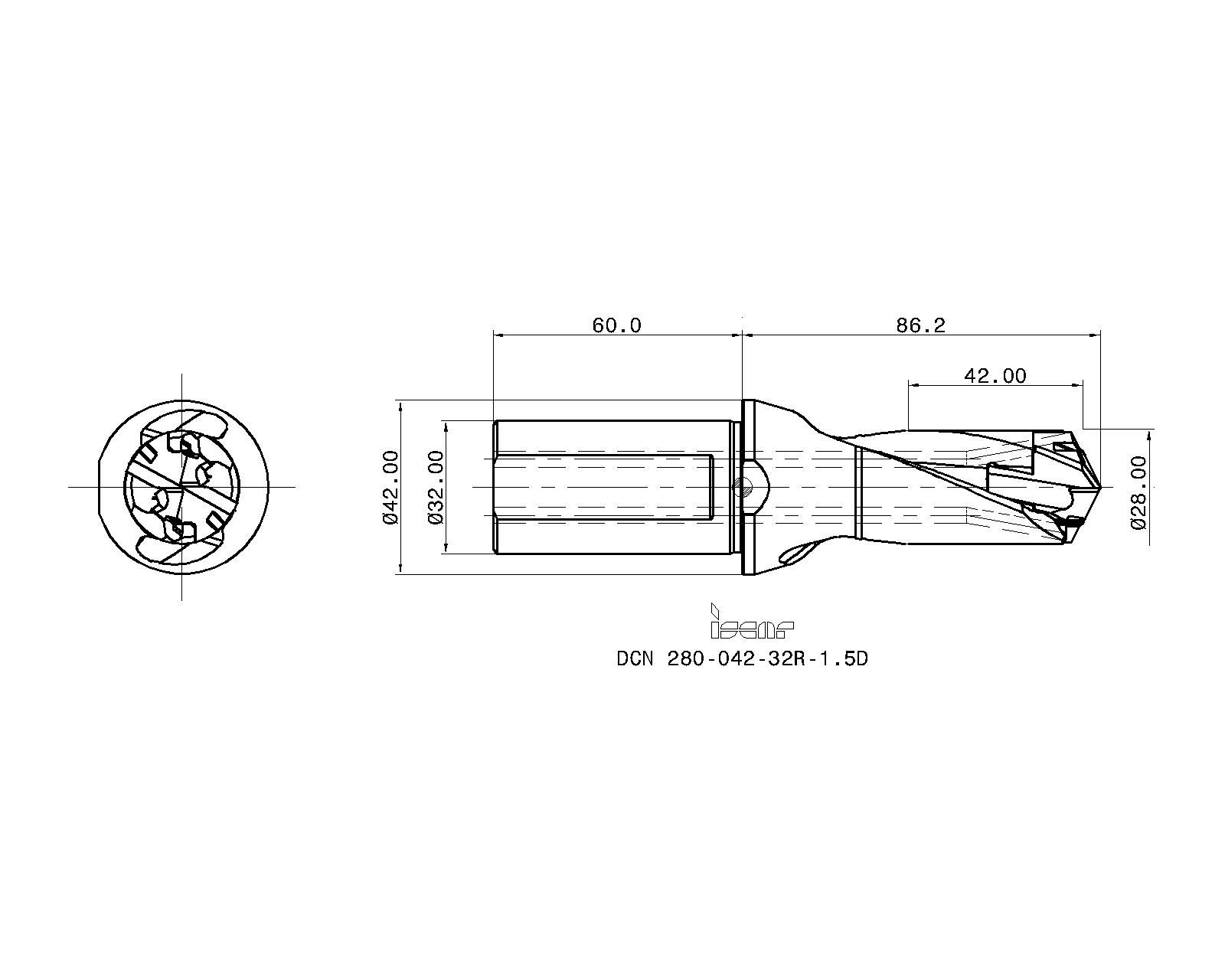

Item Designation: DCN 280-042-32R-1.5D

DCN	DCX	L	DCONMS	CUBPMS	DF	LU	LPR	PL	LS	OAL	SSC	Shank	ULDR	ZEFF		Semi- (Q)	Mod	MinTol	MaxTol	LF	LTA	CSP	TCDCONMS	MINI	BMC	LATTH	SFMT	MIID	FHA	ISCTMP	ClssID	EPSR		BD	CCFMS	CCMS	CCTMS	CNSC	CNT	CRKS	CXSC	CZCMS	DC	GAMF	GAMP	GTC	HAND	IFS	IIC	IIC_10	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	IIC_7	IIC_8	IIC_9	ISYC	LCF	LSCMS	LSCNMS	LUX	MTP	NOF	SIG	SPI	TSYC	GICAT	GIREM	giic
28.00	28.90	42.0~	32.00	G~	42.00	46.25	86.2	4.250	60.0	146.20	28.0	C~	1.5~	2~	Y~	1~	300~	0.000~	0.050~	81.10~	86.20~	1~	h6~	-~	S~	~	-~	ICP 280	25.0~	GEDRLR~	71E01A0608FE4~	0.0~	0.30~	0.00~	01~	ZYL01G3200h$06~	ZYL~	4~	~	~	3~	3200~	28.00~	0.0~	0.0~	~	R~	0~	IS$$236611414961334~	~	~	~	~	~	~	~	~	~	306-10~	0.0~	0.00~	0.00~	0.00~	~	2~	140~	~	~	3203133		0

Catalog No	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA
3203133			0	272	10				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3203133&itemDesc=DCN 280-042-32R-1.5D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=3203133&itemDesc=DCN 280-042-32R-1.5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3203133&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1
Do not mount smaller drilling heads other than the specified range of the drill body

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7005260	K DCN 27-32.99	Clamping key
