Family Designation: DCN R-8D SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.


 COOLANT THROUGH TOOL

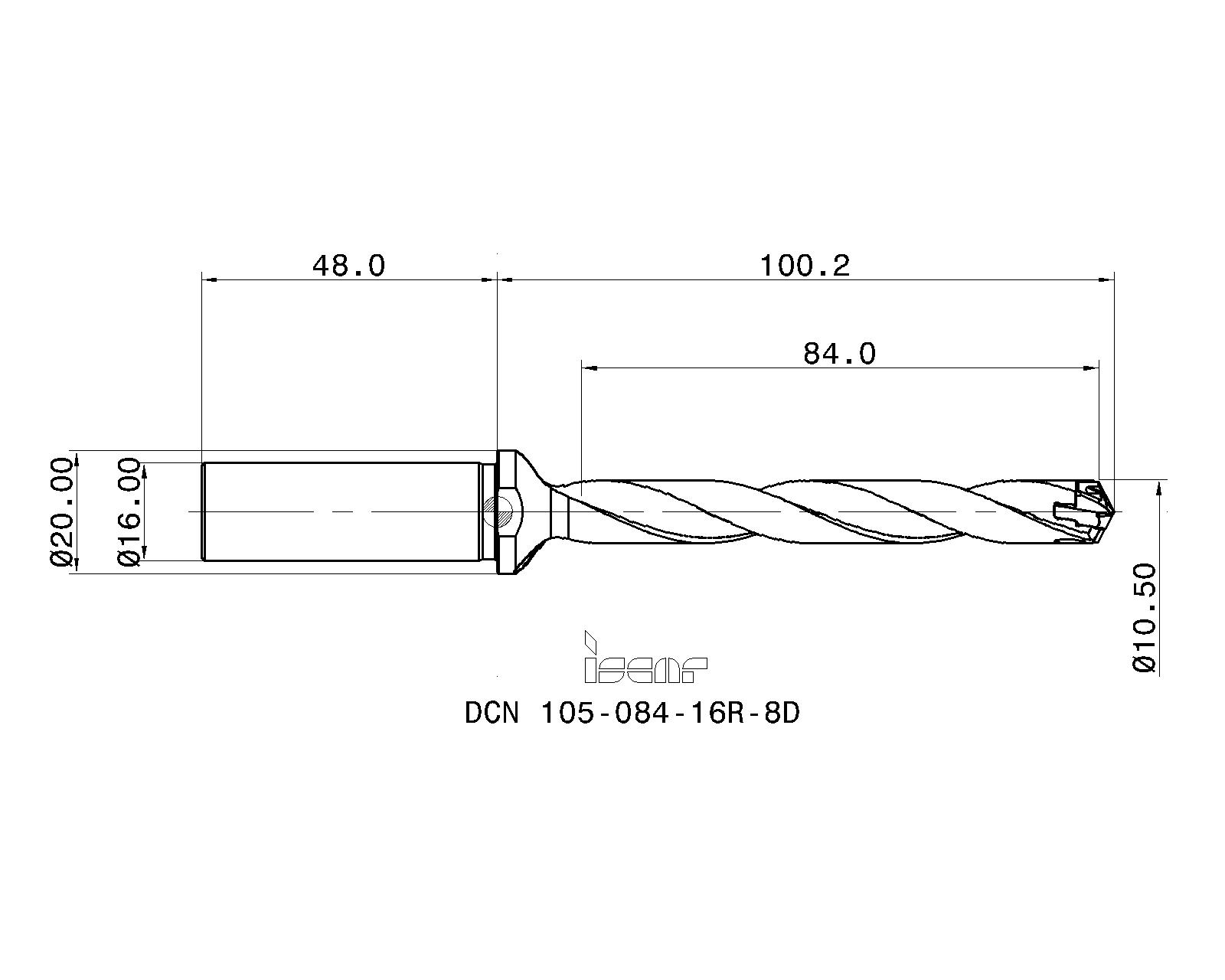

Item Designation: DCN 105-084-16R-8D
DCN  DCX  DCONMS DF LU LPR PL LS OAL SSC  MIID  ZEFF ULDR  CCMS CSP  DC HAND IFS NOF  GICATGIREMgiic
10.5010.9016.0020.0085.59100.21.59048.0148.2010.0ICP 1052~8.0~ZYL01G1600h$06~1~10.50~R~0~2~3203202 0
Catalog NoITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia		P21ITAStockPerUser
3203202 482248<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3203202&itemDesc=DCN 105-084-16R-8D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3203202&itemDesc=DCN 105-084-16R-8D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a><a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=3203202&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used
Do not mount smaller drilling heads other than the specified range of the drill body
3D Representation
Assembly Video
2D Representation
  Spare Parts
7003876K DCN 10-13.99Clamping key
Details
7005199DL-16
(Optional, should be ordered separately)		Coolant fitting
Details
