Family Designation: GDV

Weldon, Cylindrical and whistle-notch shanks for SUMOGUN modular gundrills with threaded connection.

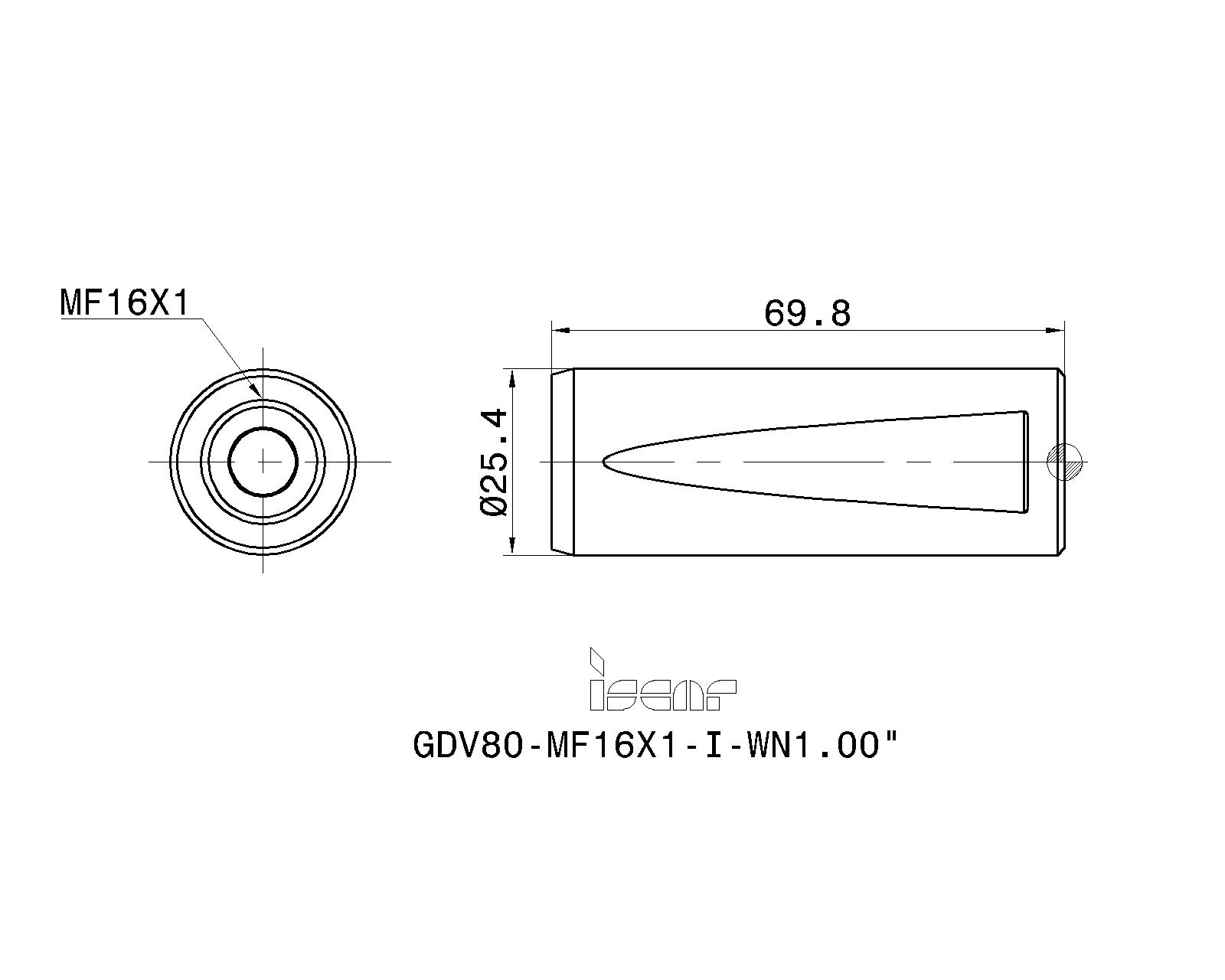

Item Designation: GDV80-MF16X1-I-WN1.00"

THSZWS	DCONMS	Shank	LS	BMC		CSP	ISCTMP		BSC	ClssID	GTC	LTA	GICAT	GIREM	giic
MF16X1	25.40	WN	69.8	S~	Y~	~	~	0.00~	0~	~	~	0.00~	3203547		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL
3203547		3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=3203547&itemDesc=GDV80-MF16X1-I-WN1.00 "><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3203547&itemDesc=GDV80-MF16X1-I-WN1.00""><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3203547&itemDesc=GDV80-MF16X1-I-WN1.00""><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>

Items Per Package : 1
