Family Designation: HFIR/L-MC

Boring bars for internal grooving and turning, Dmin. 20 mm.

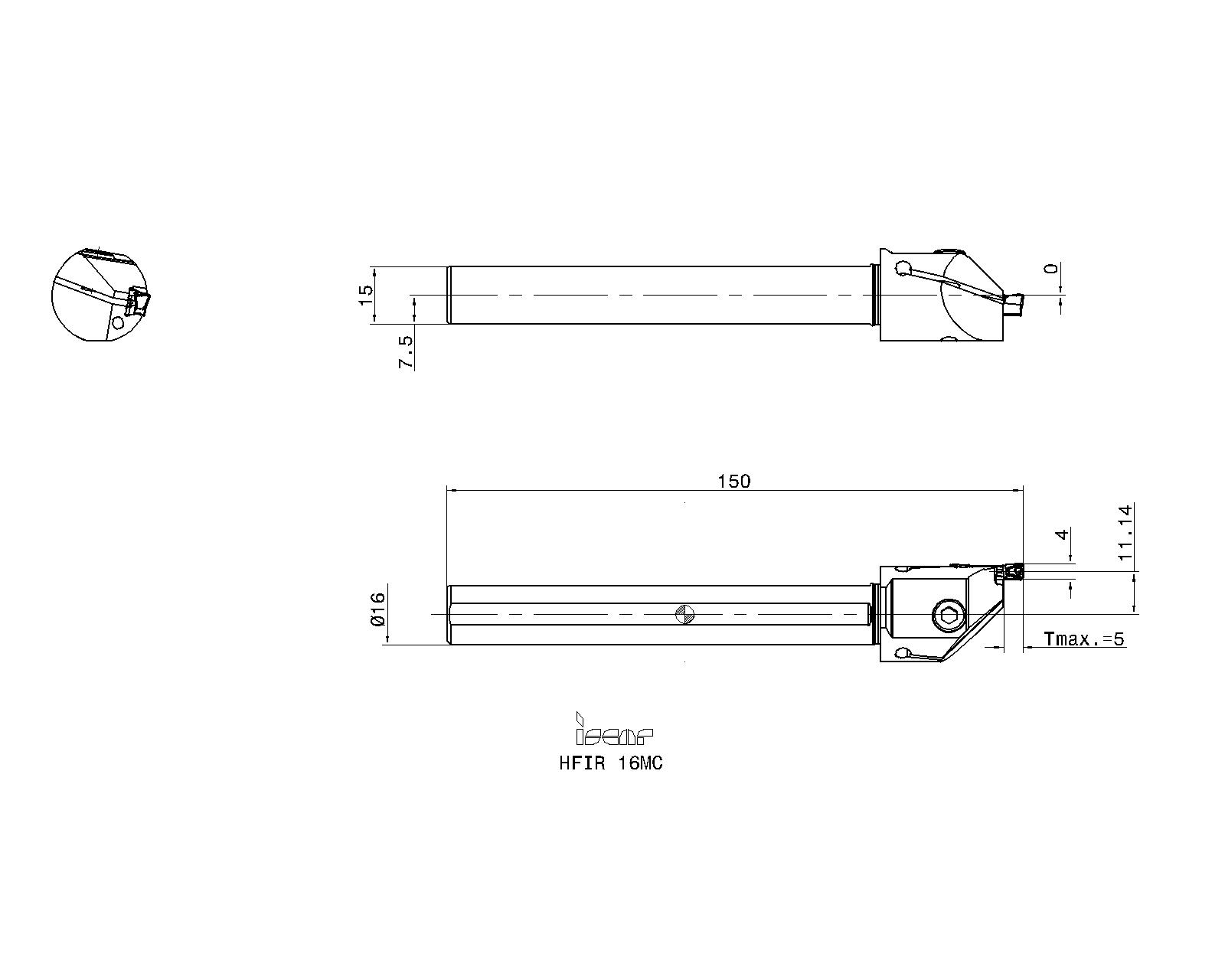

Item Designation: HFIR 16MC

DCONMS	CWN	CWX	CDX	OAL	WF	HF	HAND	CW	CSP	APMX	GICAT	GIREM	giic
16.00	3.00	6.00	5.00	150.00	11.14	7.5	R	4.00~	1~	4.00~	3300484		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3300484		1	0	424			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3300484&cat=3300484&itemDesc=HFIR 16MC"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('3300484', 'HFIR 16MC' , 'IscarDxf' , '3300484-HFIR 16MC');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3300484&itemDesc=HFIR 16MC"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3300484&itemDesc=HFIR 16MC"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For insert clamping instructions, click on "More Info"
