Family Designation: IHSR-MIFR Trepanning cartridges carrying MINCUT inserts mounted on a BHR MB32-32X63 BORING head.

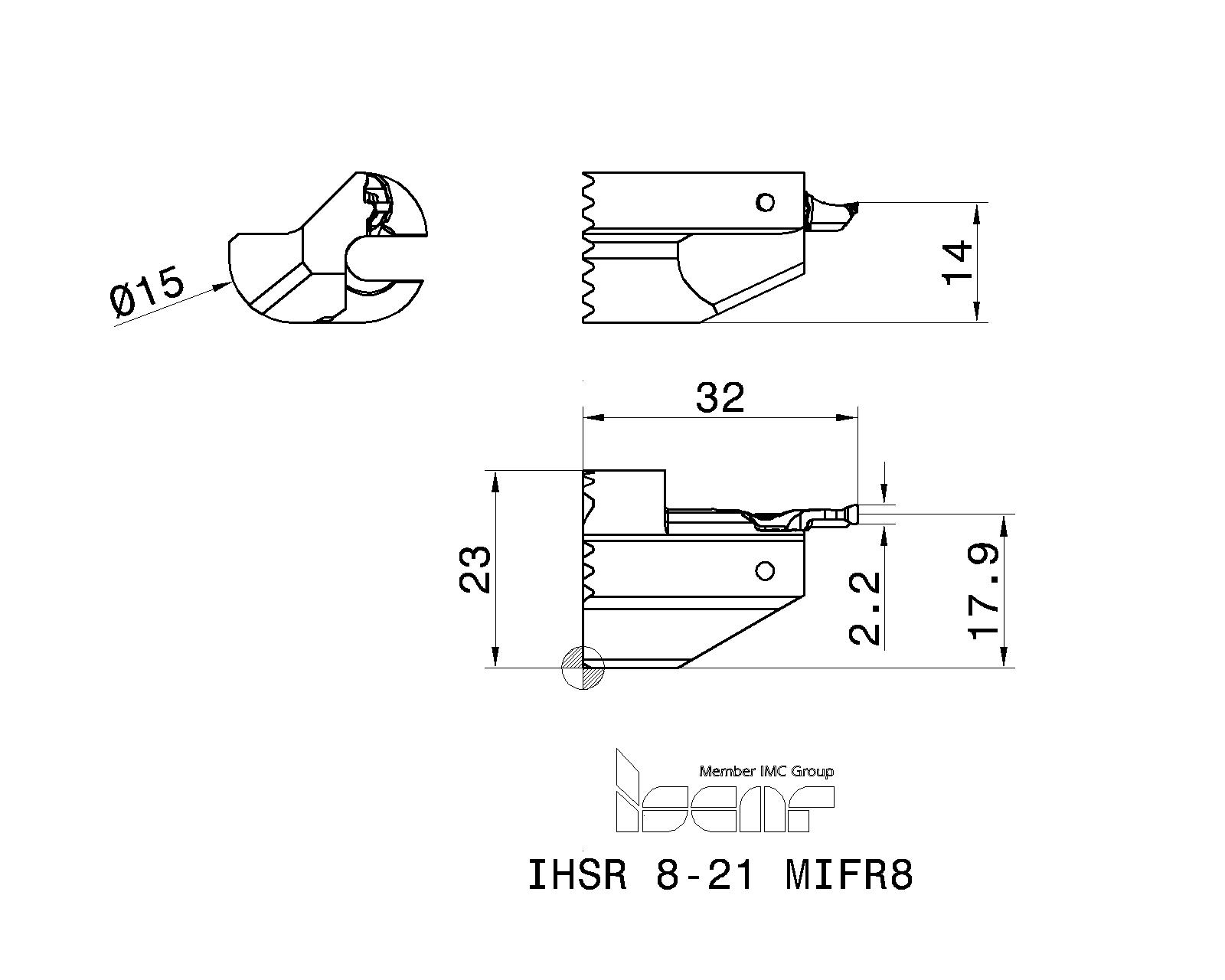

Item Designation: IHSR 8-21 MIFR8
DAXN  DAXX  CWN  CWX  OAL WB OAH Insert GICATGIREMgiic
8.021.01.502.2032.0023.0017.50MI.R 83310233 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3310233 1160<a href="javascript:OpenDxf('3310233', 'IHSR 8-21 MIFR8' , 'IscarDxf' , '3310233-IHSR 8-21 MIFR8');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3310233&itemDesc=IHSR 8-21 MIFR8"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3310233&itemDesc=IHSR 8-21 MIFR8"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7002029SR 14-297Torx screw
Details
7000273T-8/5Torx key flag
Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
