Family Designation: SD CAB

Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks.

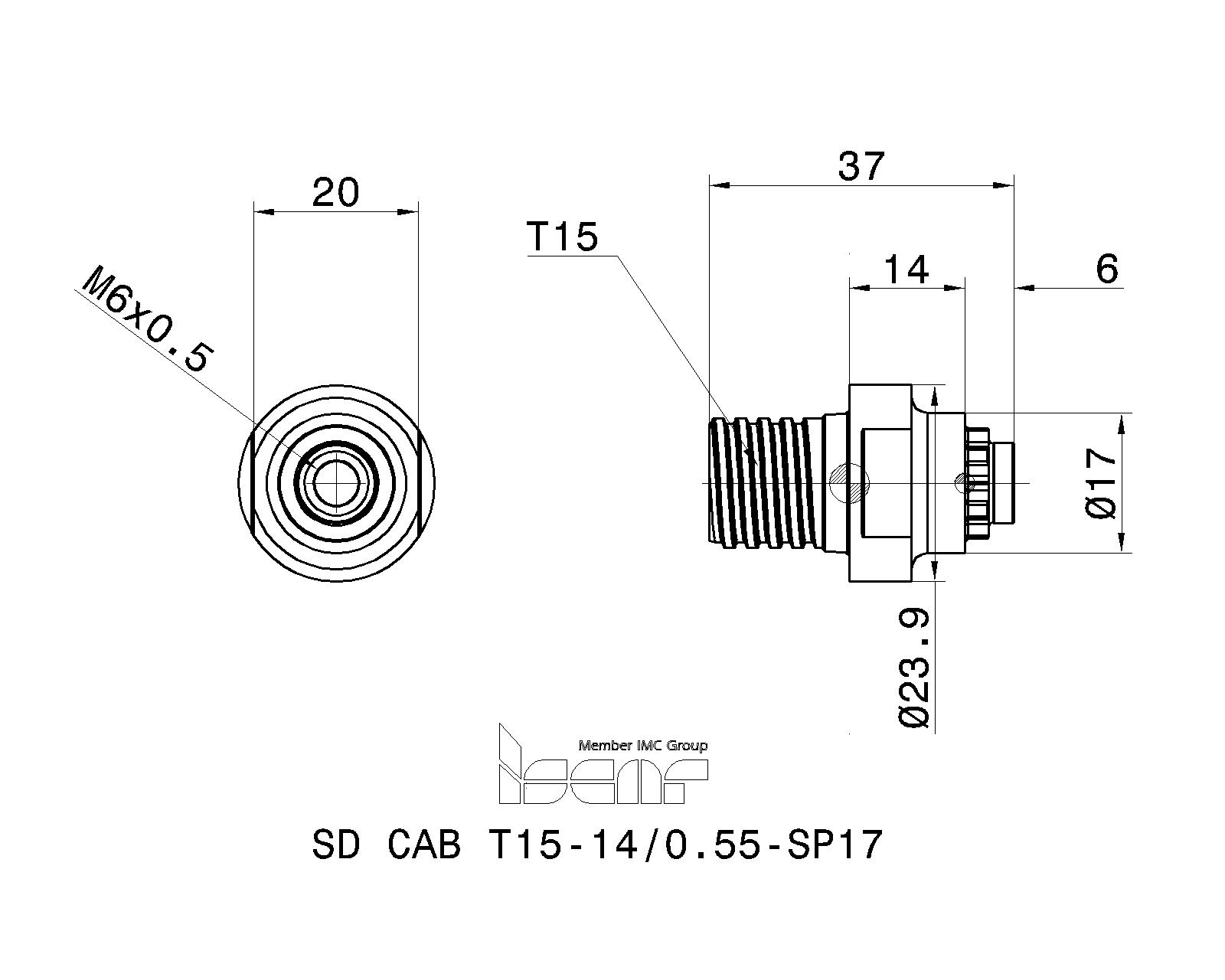

Item Designation: SD CAB T15-14/0.55-SP17

THSZWS	THSZMS	LF	LDRED	OAL	DCONWS	DCONMS	DRVS		GICAT	GIREM	giic
M6x0.5	T15	14.00	6.0	37.00	17.00	23.90	20.0	0.11	3317290		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3317290		1	13	24				<a href="javascript:OpenDxf('3317290', 'SD CAB T15-14/0.55-SP17' , 'IscarDxf' , '3317290-SD CAB T15-14 0.55-SP17');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3317290&itemDesc=SD CAB T15-14/0.55-SP17"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3317290&itemDesc=SD CAB T15-14/0.55-SP17"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Note: Apply lubricant to the MULTI-MASTER threaded connection and to the slotting head clamping screw

Spare Parts
	7006784	SR M6X0.5-SP17-IP20-HG	Torx screw	Details
Rec. tightening torque:SP17=7.0 Nm Rec. tightening torque:SP19=10.0 Nm
	7002553	BLD IP20/S7	Torx blade	Details
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
	7003805	SW6-T-SH	T-handle	Details
