ISCAR Cutting Tools - Metal Working Tools - HFPR/L (full radius) : 3318171

Geometry Checker ×

Family Designation: HFPR/L (full radius)

Utility double-ended full radius face machining inserts.

No depth penetration limit.

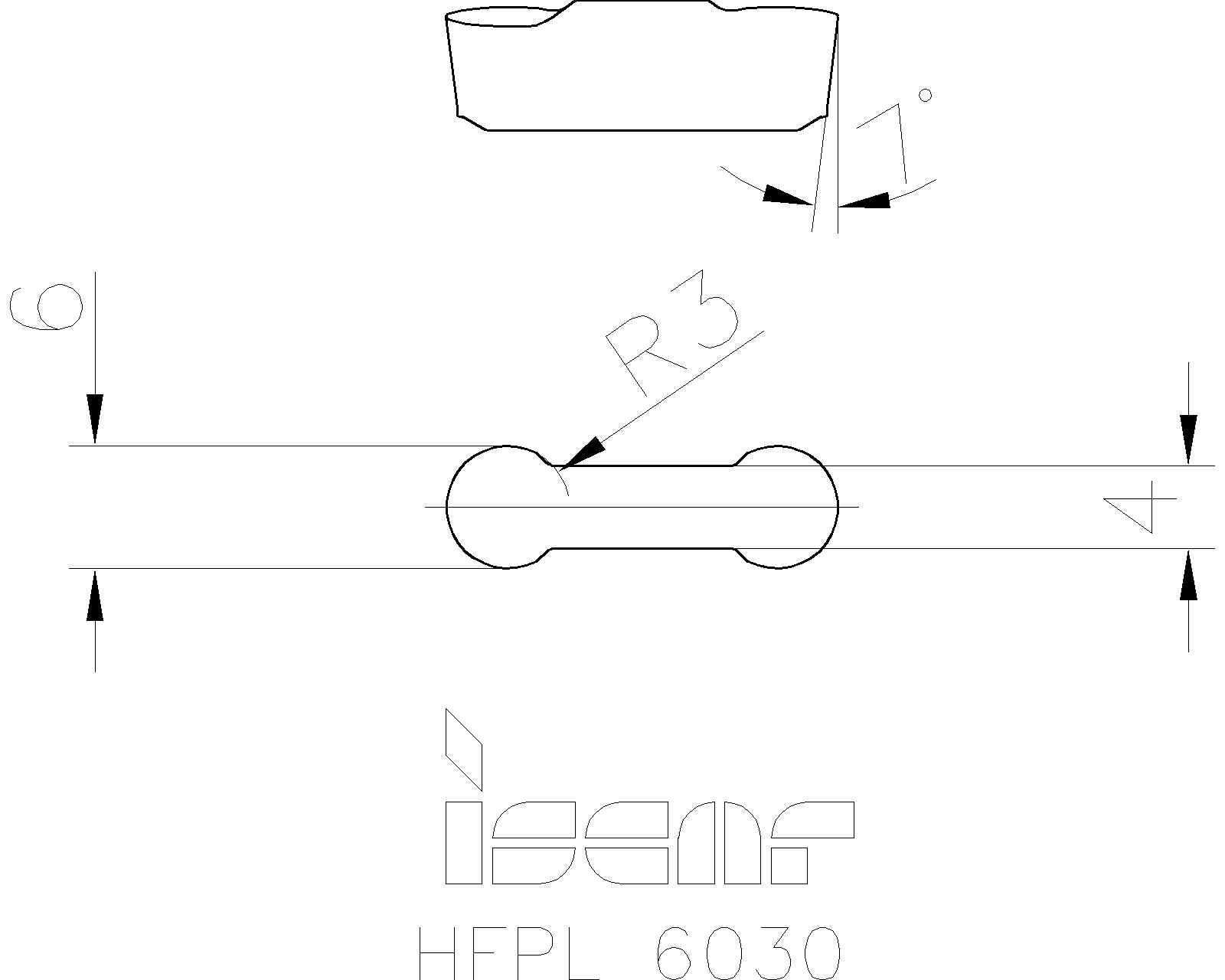

Item Designation: HFPL 6030

CW	RE	CWTOL	BW	DAXN	DAXX	ap (min)	ap (max)	fft (min)	fft (max)	ffg (min)	ffg (max)	HAND	CEDC	L	SC	AN	CBMD	CDX	COATP	CSP	DMIN	GRDMFG	IFS	INSL	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
6.00	3.00	0.050	4.00	20.8	-	0.00	3.00	0.20	0.40	0.12	0.28	L~	2~	19.00~	L~	7.0~	~	-~	~	0~	-~	IC20 ~	7~	19.00~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6290304		9

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3318171	IC806		1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3318171&cat=3318171&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3318171&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3318171&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200052	IC20	Alternative	1	320	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200052&cat=6200052&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200052&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200052&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200082	IC354	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200082&cat=6200082&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200082&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200082&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200137	IC9015	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200137&cat=6200137&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200137&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200137&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200313	IC808	Alternative	1	429	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200313&cat=6200313&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200313&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200313&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200370	IC830	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200370&cat=6200370&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200370&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200370&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200385	IC8250	Alternative	1	40	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200385&cat=6200385&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200385&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200385&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200401	IC5010	Alternative	3	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200401&cat=6200401&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200401&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200401&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6290304	IC428	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6290304&cat=6290304&itemDesc=HFPL 6030"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6290304&itemDesc=HFPL 6030"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6290304&itemDesc=HFPL 6030"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
