HM390 ETC-07
>
HM390 ETC D20-3-C16-07
Milling
Main Application
Plunging & Recessing
Sub Application
More Info
Related Insert
Related Holder
✖
Geometry Checker
×
Family Designation:
HM390 ETC-07
90° endmills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges.
Item Designation:
HM390 ETC D20-3-C16-07
DC
APMX
CICT
NOF
ZNP
OAL
LH
DCONMS
Shank
RMPX°
HAND
Insert
Mod
Ap Back
MIID
CNSC
CXSC
ISYC
ISCTMP
ClssID
GTC
KAPR
Pocket
BMC
CCTMS
CCFMS
PD
APMX_2
CCMS
ClssID_2
CSP
CUBPMS
CZCMS
DC_2
DCX
GTC_2
IIC
ISCTMP_2
ISYC_2
KAPR_2
LF
LF_2
LH_2
LTA
LTA_2
LU
LU_2
MIID_2
OAL_2
RMPX°_2
RPMX
SPI
TCDCONMS
UST
ZADJ
ZEFF
ZEFP
GICAT
GIREM
giic
20.00
5.00
3
3~
3~
55.00
20.0
16.00
C
1.4
0.07
Y~
R~
HM390 TCKT 0703~
100~
0.40~
HM390 TCKT 0703PCTR
1~
2~
307-01~
GEMLT010020~
71E01A05D27A8~
MILSQI_MZYL01~
90.0~
HM390 TCKT 0703~
S~
ZYL~
01~
RC~
~
ZYL01G1600h$06~
~
1~
G~
1600~
~
~
~
IS$$367645958701866~
~
~
~
55.00~
~
~
20.00~
0.00~
~
~
~
~
~
-~
~
h6~
M~
0~
3~
3~
3318229
0
Catalog No
Files Package
GISC
AvailUSA
AvailEU
Add to favorites
P21 Properties File
Add to Assembly
DXF
Stock Availability
US EU E. Asia
STPL
P21
3318229
1
0
0
<a href="javascript:OpenDxf('3318229', 'HM390 ETC D20-3-C16-07' , 'IscarDxf' , '3318229-HM390 ETC D20-3-C16-07');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>
<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3318229&itemDesc=HM390 ETC D20-3-C16-07"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
<a href="FilesDownload.aspx?FileType=P&cat=3318229&itemDesc=HM390 ETC D20-3-C16-07"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Insert clamping screw must be lubricated every indexing.
Tightening torque 0.9 Nxm.

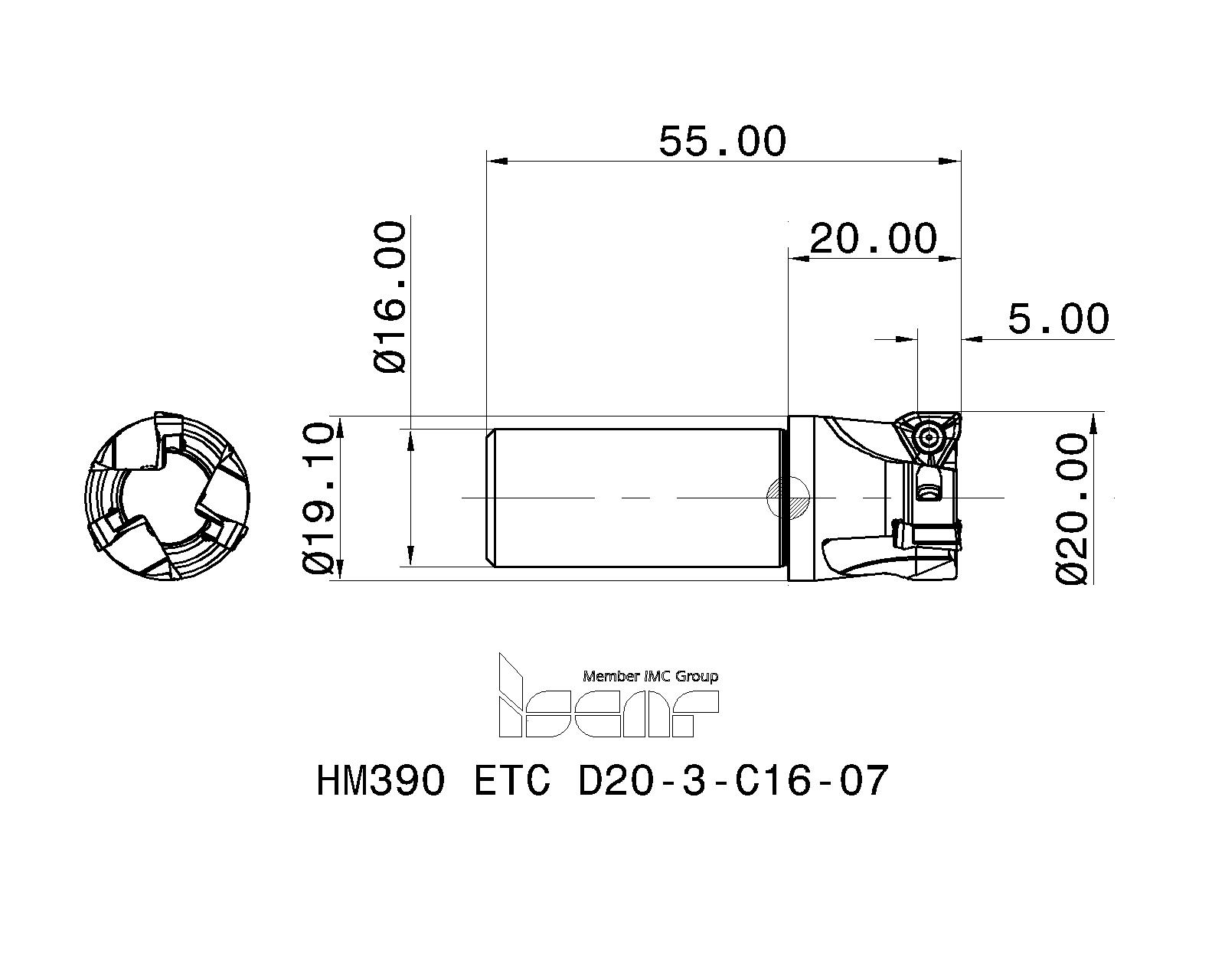

3D Representation
Light
Detailed
3D Required
Assembly Video
2D Representation
ISO
2D Required
Spare Parts
7006639
SR M2.5X5-T7-60
Torx screw
Details
7000270
T-7/51
Torx hand driver
Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
×
