Family Designation: HSK A-SRKIN-CX Thermal shrink chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/HSK50,63=25K/HSK100=20K  COOLANT THROUGH TOOL
Item Designation: HSK A63 SRKIN6X120 CX
DCONMS DCONWS BTED BD LB LB_2 LBX LPR ADJRGA LSCWS THID Key  Fig. CDI  CSP  GICATGIREMgiic
63.006.0021.0027.0038.1089.0094.00120.009.4034.00M52.50111.001~3319749 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3319749 1047<a href="javascript:OpenDxf('3319749', 'HSK A63 SRKIN6X120 CX' , 'IscarDxf' , '3319749-HSK A63 SRKIN6X120 CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3319749&itemDesc=HSK A63 SRKIN6X120 CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3319749&itemDesc=HSK A63 SRKIN6X120 CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately)
Use only inductive heating device for SRKIN holders
For solid carbide, HSS and steel tools.
For shank dimensions and shrink units information, Click on "More Info"
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
Preset screw CX allows supply of coolant via JET channels - do not remove
3D Representation
Assembly Video

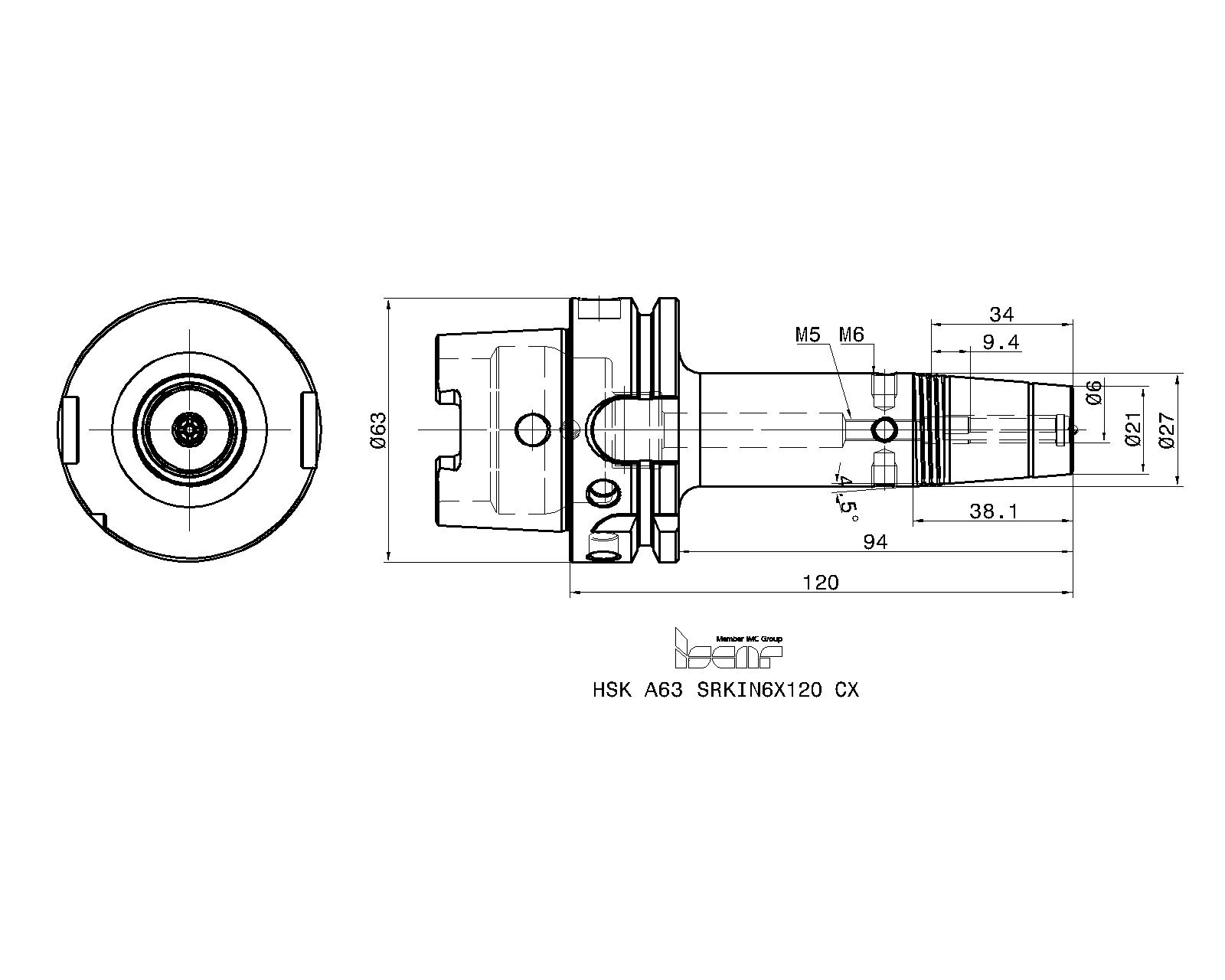

2D Representation
  Spare Parts
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)		Cooling tube
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)		Cooling tube wrench
3305382PRESET CX M5X13Preset screw
