Family Designation: TR6 ER

Multifunction endmills that carry four different insert geometries.

Tool shown with TR6 TNCU inserts

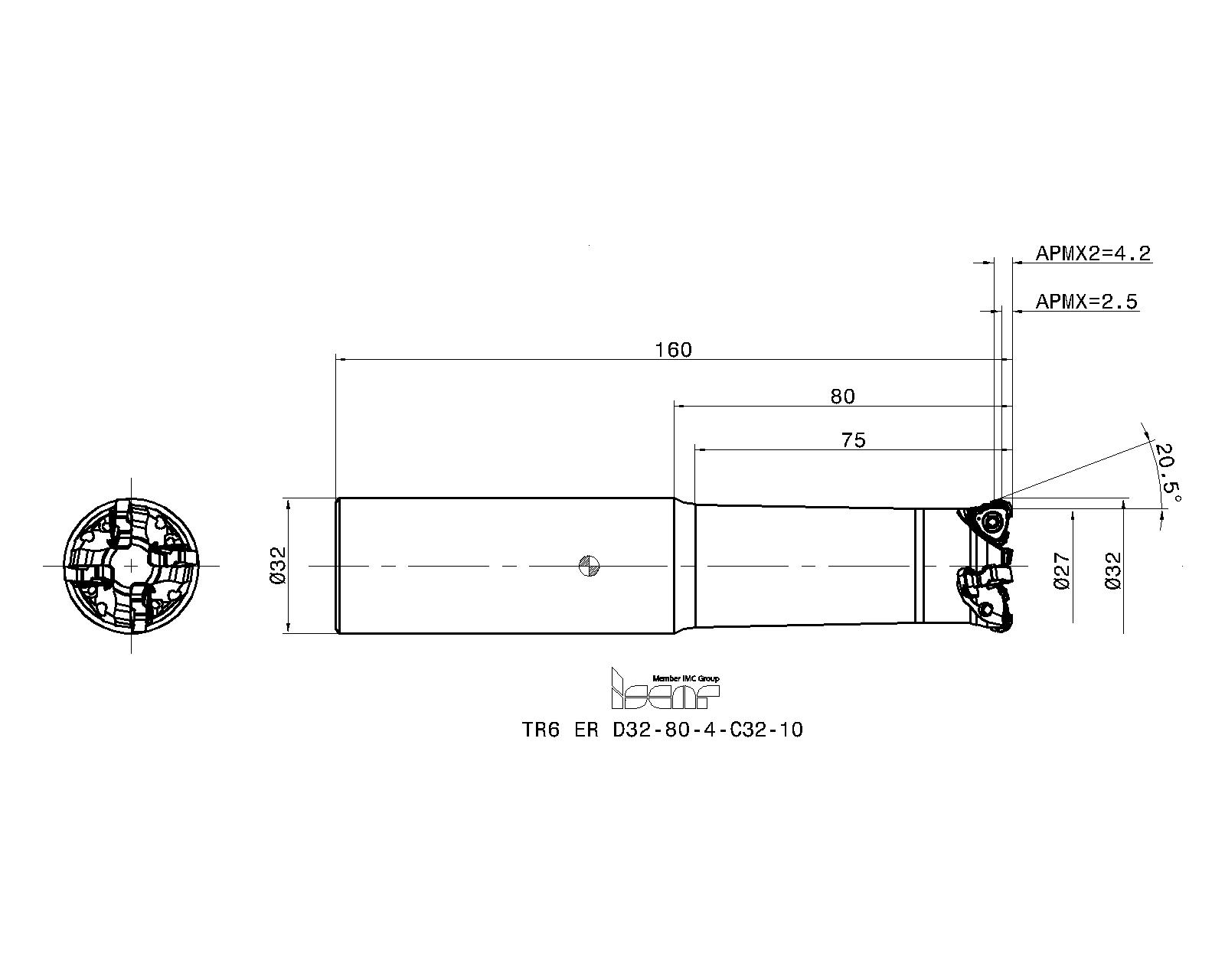

Item Designation: TR6 ER D32-80-4-C32-10

Ord	DCX	DCX_2	DCX_3	DCX_4	DC	DC_2	DC_4	APMX	APMX_2	APMX_3	APMX_4	APMXU	BHTA	CICT	LU	LU_2	LU_3	LU_4	LH	LH_2	LH_3	LH_4	RMPX°_2	OAL	OAL_2	OAL_3	OAL_4	DCONMS	MIID	MIID_2	MIID_3	MIID_4		LF	LF_2	LF_3	LF_4	Shank	HAND	Insert	Pocket	CNSC	CXSC	ISYC	ISCTMP	IC	ClssID	GTC	Ap Back	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	PD	ClssID_2	ClssID_3	ClssID_4	CSP	CUBPMS	CZCMS	GTC_2	GTC_3	GTC_4	IIC	ISCTMP_2	ISCTMP_3	ISCTMP_4	ISYC_2	ISYC_3	ISYC_4	LTA	LTA_2	LTA_3	LTA_4	RPMX	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
60~	32.00	31.60	32.00	33.80	27.00	26.00	27.60	2.50	0.80	4.00	3.00	4.20	17.0	4	75.00	75.15	74.91	75.12	80.0	80.2	79.9	80.1	1.2	160.00	160.15	159.91	160.12	32.00	TR6 TNCU 100425	TRFF TXMT 1004	TR90 TXMT 100408	TR45 TXMT 1004	0.81	160.00~	160.15~	159.91~	160.12~	C~	R~	TR6 TNCU 100425~	TR6-10~	~	~	307-01~	~	7.30~	71E01A05D27A8~	~	0.15~	~	~	~	ZYL~	01~	ZYL01G3200~	RC~	71E01A05D27A8~	71E01A05D27A8~	71E01A05D27A8~	1~	G~	3200~	~	~	~	IS$$199449290959191~	~	~	~	~	~	~	100.00~	0.00~	-~	-~	~	~	M~	~	~	3320734		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3320734		3	0	928				<a href="javascript:OpenDxf('3320734', 'TR6 ER D32-80-4-C32-10' , 'IscarDxf' , '3320734-TR6 ER D32-80-4-C32-10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3320734&itemDesc=TR6 ER D32-80-4-C32-10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3320734&itemDesc=TR6 ER D32-80-4-C32-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on "More Info"

Spare Parts
	7006042	SR 10508600	Torx screw	Details
Recommended tightening torque:2 Nm (17.7 lbfin)
	7003372	T-9/51	Torx hand driver	Details
For limiting torque, use optional 7007381 BLD 4 T09-2.0NM blade & 7007320 HSD 4-2.0NM handle.
