Family Designation: TR6 ER

Multifunction endmills that carry four different insert geometries.

Tool shown with TR6 TNCU inserts

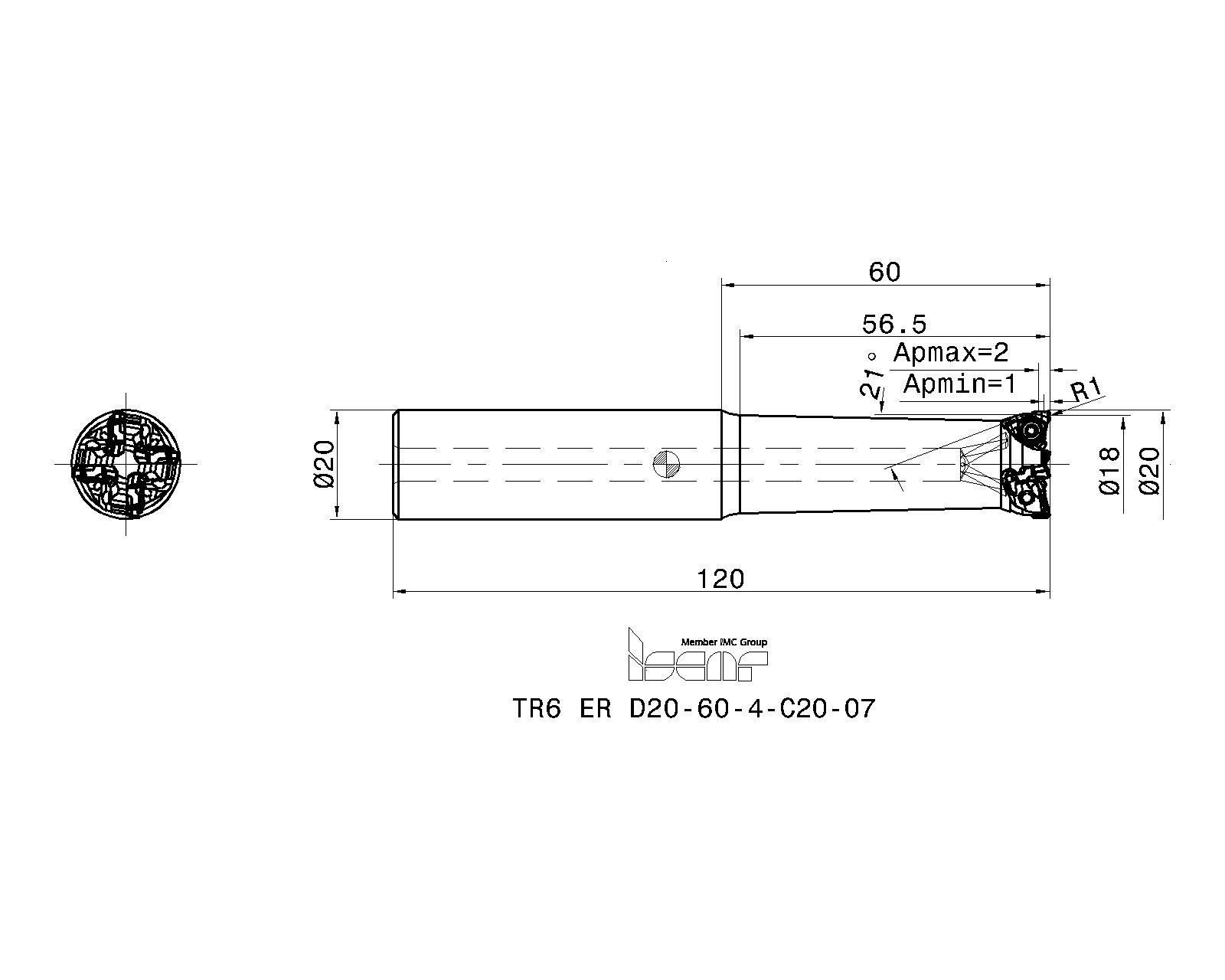

Item Designation: TR6 ER D20-60-4-C20-07

Ord	DCX	DCX_2	DCX_3	DCX_4	DC	DC_2	DC_4	APMX	APMX_2	APMX_3	APMX_4	APMXU	BHTA	CICT	LU	LU_2	LU_3	LU_4	LH	LH_2	LH_3	LH_4	RMPX°_2	OAL	OAL_2	OAL_3	OAL_4	DCONMS	MIID	MIID_2	MIID_3	MIID_4		LF	LF_2	LF_3	LF_4	Shank	HAND	Insert	Pocket	CNSC	CXSC	ISYC	ISCTMP	IC	ClssID	GTC	Ap Back	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	PD	ClssID_2	ClssID_3	ClssID_4	CSP	CUBPMS	CZCMS	GTC_2	GTC_3	GTC_4	IIC	ISCTMP_2	ISCTMP_3	ISCTMP_4	ISYC_2	ISYC_3	ISYC_4	LTA	LTA_2	LTA_3	LTA_4	RPMX	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
20~	20.00	20.00	20.00	-	18.00	16.10	-	1.00	0.60	2.50	-	2.00	18.0	4	56.50	56.70	56.80	-	60.0	60.2	60.3	-	1.0	120.00	120.20	120.30	-	20.00	TR6 TNCU 070210	TRFF TXMT 0702	TR90 TXMT 070204	-	0.22	120.00~	120.20~	120.30~	-~	C~	R~	TR6 TNCU 070210~	TR6-07~	~	~	307-01~	~	5.30~	71E01A05D27A8~	~	0.10~	~	~	~	ZYL~	01~	ZYL01G2000~	F~	71E01A05D27A8~	71E01A05D27A8~	71E01A05D27A8~	1~	G~	2000~	~	~	~	IS$$143668263285232~	~	~	~	~	~	~	70.00~	-~	-~	-~	~	~	M~	~	~	3320750		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3320750		3	0	888				<a href="javascript:OpenDxf('3320750', 'TR6 ER D20-60-4-C20-07' , 'IscarDxf' , '3320750-TR6 ER D20-60-4-C20-07');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3320750&itemDesc=TR6 ER D20-60-4-C20-07"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3320750&itemDesc=TR6 ER D20-60-4-C20-07"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on "More Info"

Spare Parts
	7006976	SR M2.5X0.45-L6 IP7	Torx screw	Details
Recommended tightening torque:1.2 Nm (10.6 lbfin)
	7003436	IP-7/51	Torx hand driver	Details
For limiting torque, use optional 3315468 BLD 4 IP07-1.2NM blade & 7007319 HSD 4-1.2NM handle.
