Family Designation: ERMT

End Mills for Productive Machining of 3D Surfaces of Blades in Turbomachinery

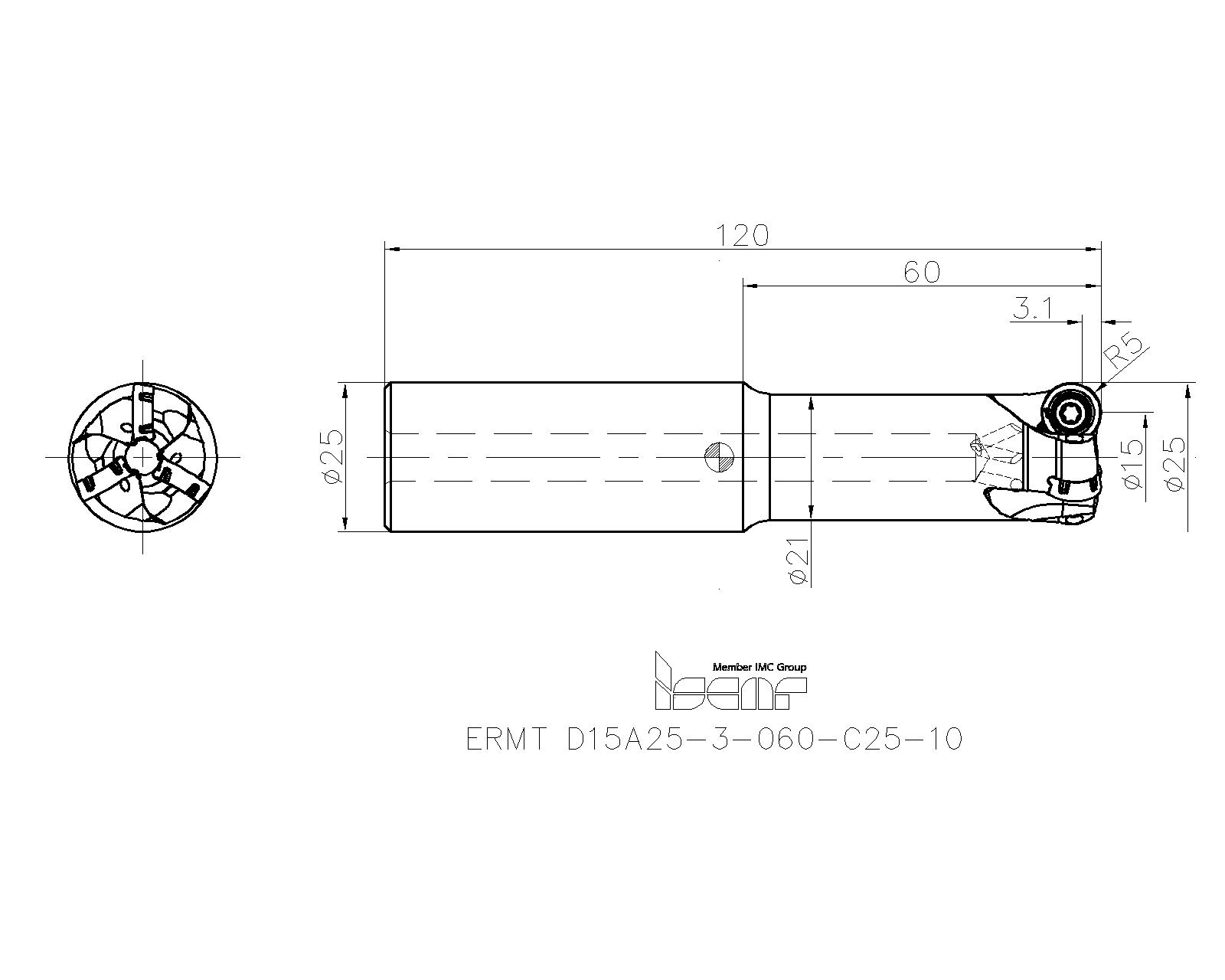

Item Designation: ERMT D15A25-3-060-C25-10

DCX	DC	RE	IC	APMX	CICT	LH	OAL	BD	DCONMS	RMPX°	Shank	HAND	CCMS	MIID		CSP	NOF	ZEFF	GICAT	GIREM	giic
25.00	15.00	5.00	10.00~	3.10	3	60.0	120.00	21.00	25.00	1.0	C	R~	0000~	RPHX 1003MO-MT5	0.33	1~	3~	3~	3321384		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	GIFUT5	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
3321384		6	0	3		0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=3321384&itemDesc=ERMT D15A25-3-060-C25-10"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3321384&itemDesc=ERMT D15A25-3-060-C25-10"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3321384&itemDesc=ERMT D15A25-3-060-C25-10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7005132	SR 10504970	Insert screw	Details
Recommended tightening torque:3.2 N*m
	7003093	BLD IP15/S7	Torx blade	Details
For limiting torque, use optional 3309306 BLD 4 IP15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7002244	SW6-SD	Handle	Details
