Family Designation: MM S-B (85° conical shanks)

MULTI-MASTER, 85° conical shanks for interchangeable milling heads.

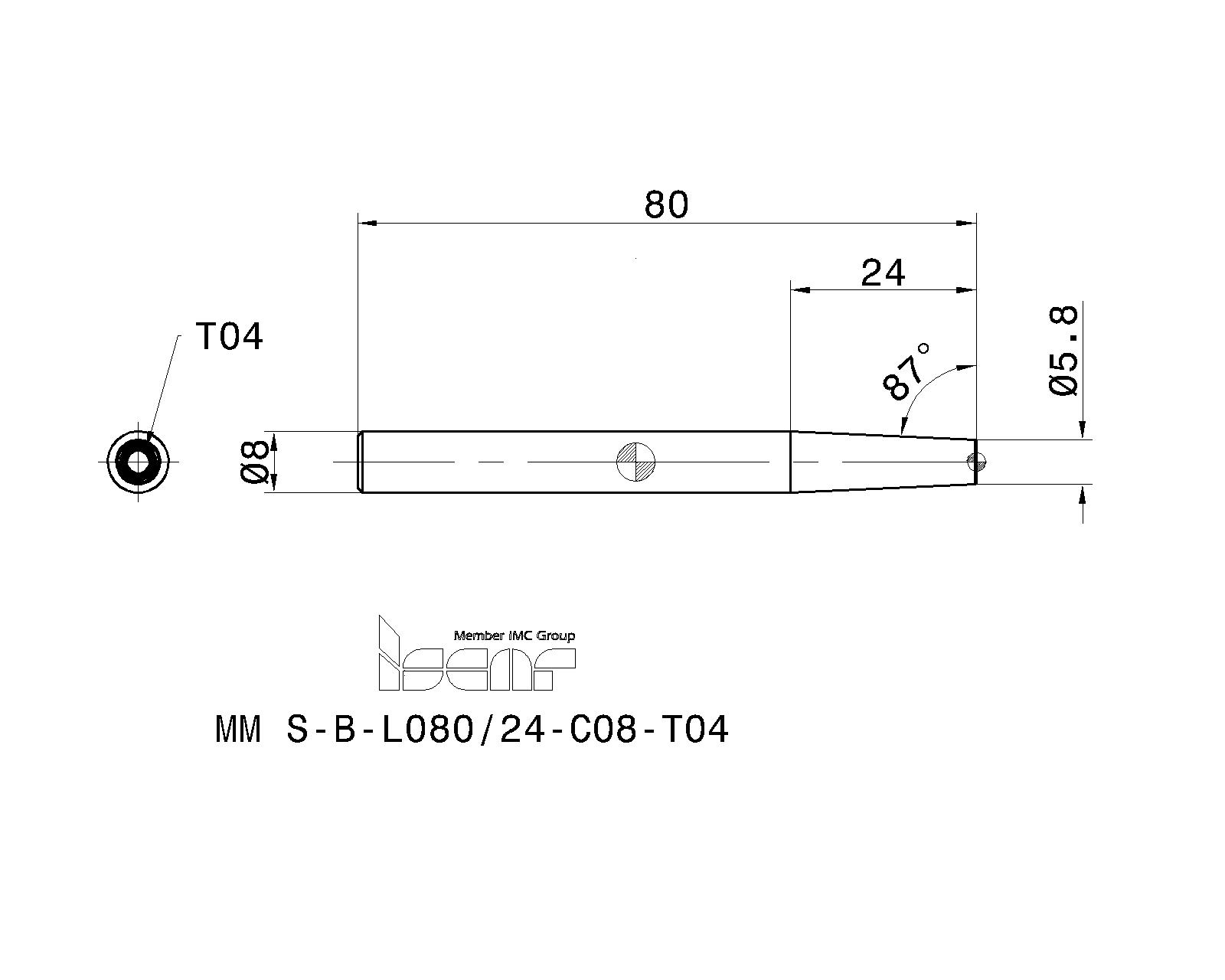

Item Designation: MM S-B-L080/24-C08-T04

THSZWS	DCONMS	BD	BHTA	Shank	LB	LBX	OAL	Shank m.	CSP	RPMX		CCMS	GICAT	GIREM	giic
T04	8.00	5.80	2.6	C	-	24.0	80.00	S	~	60000	0.04	ZYL01F8000h$06~	3321541		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3321541		1	3	23				<a href="javascript:OpenDxf('3321541', 'MM S-B-L080/24-C08-T04' , 'IscarDxf' , '3321541-MM S-B-L080 24-C08-T04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3321541&itemDesc=MM S-B-L080/24-C08-T04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3321541&itemDesc=MM S-B-L080/24-C08-T04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation click on "More Info"
Do not apply lubricant to the threaded connection
