Family Designation: MM S-A (stepped shanks)

MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

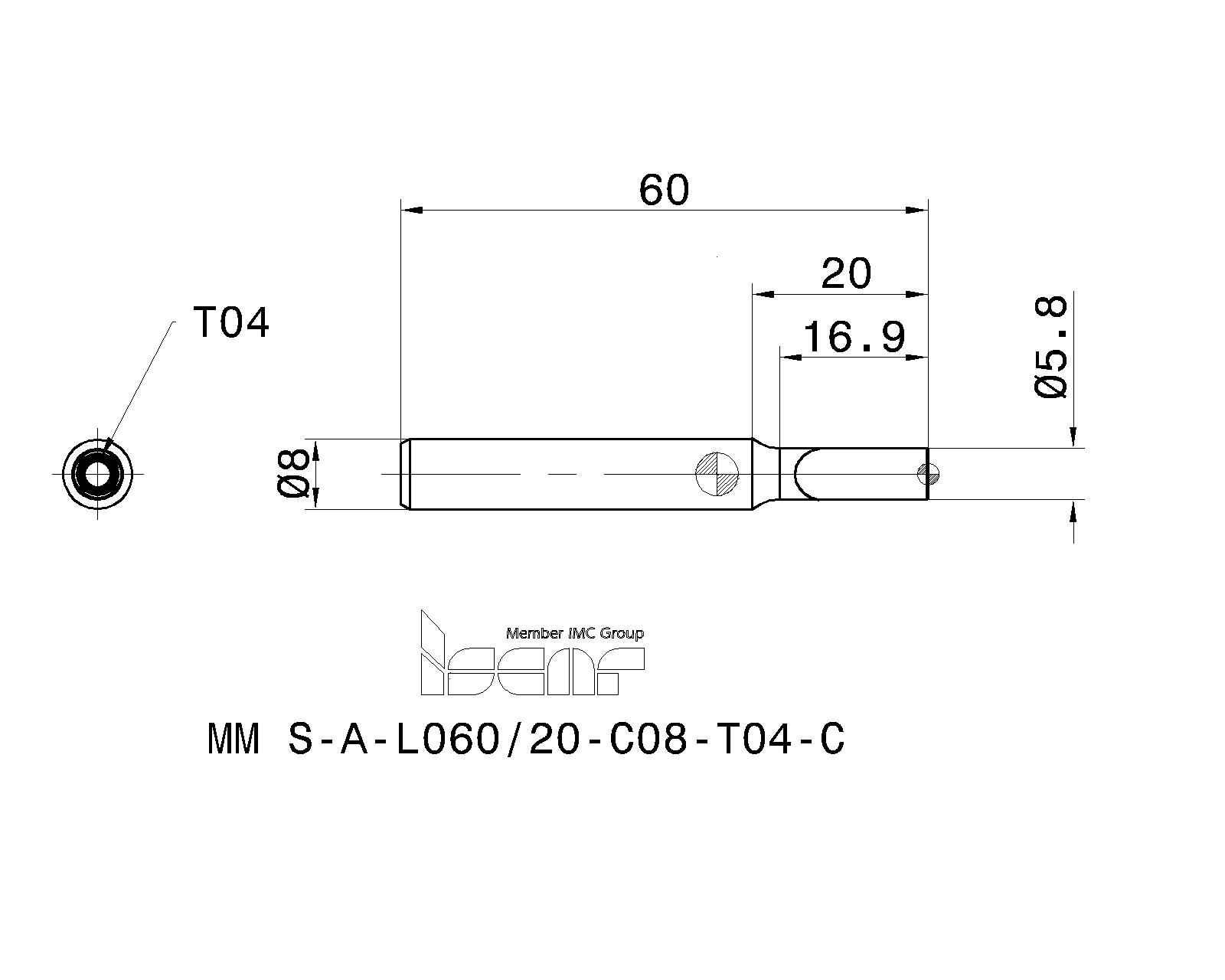

Item Designation: MM S-A-L060/20-C08-T04-C

Ord	THSZWS	DCONMS	BD	LB	LBX	OAL	Shank	Shank m.	S1	CSP	Fig.	RPMX			a°	Key	Mod	K°	Semi- (Q)	MINI	CCTWS	CCFWS	CUBPWS	TCDCONWS	CCWS	LPR	CCTMS	CCFMS	CUBPMS	CZCMS	TCDCONMS	CCMS	ClssID	BDRED	BHTA	BMC	BSC	BTED	CNSC	CXSC	CZCWS	GTC	ISCTMP	ISYC	LTA	UST	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1~	T04	8.00	5.80	16.90	20.0	60.00	C	C	1~	0	-	60000	N~	0.03	90~	C08~	310~	~	0~	All~	SAI~	01~	C~	$$$$~	SAI01C0040$$$$~	~	ZYL~	01~	F~	8000~	h6~	ZYL01F8000h$06~	71EAD3871D313~	-~	-~	S~	0~	~	0~	0~	0040~	ADPRS_MZYL01_WSAI01~	GEADR010070~	401-01~	24.00~	C~								3321543		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3321543		1	48	416				<a href="javascript:OpenDxf('3321543', 'MM S-A-L060/20-C08-T04-C' , 'IscarDxf' , '3321543-MM S-A-L060 20-C08-T04-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3321543&itemDesc=MM S-A-L060/20-C08-T04-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3321543&itemDesc=MM S-A-L060/20-C08-T04-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation click on "More Info"
Do not apply lubricant to the threaded connection

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
