Family Designation: SD FM-S-A-SP

Stepped cylindrical shanks for interchangeable solid carbide face milling heads.

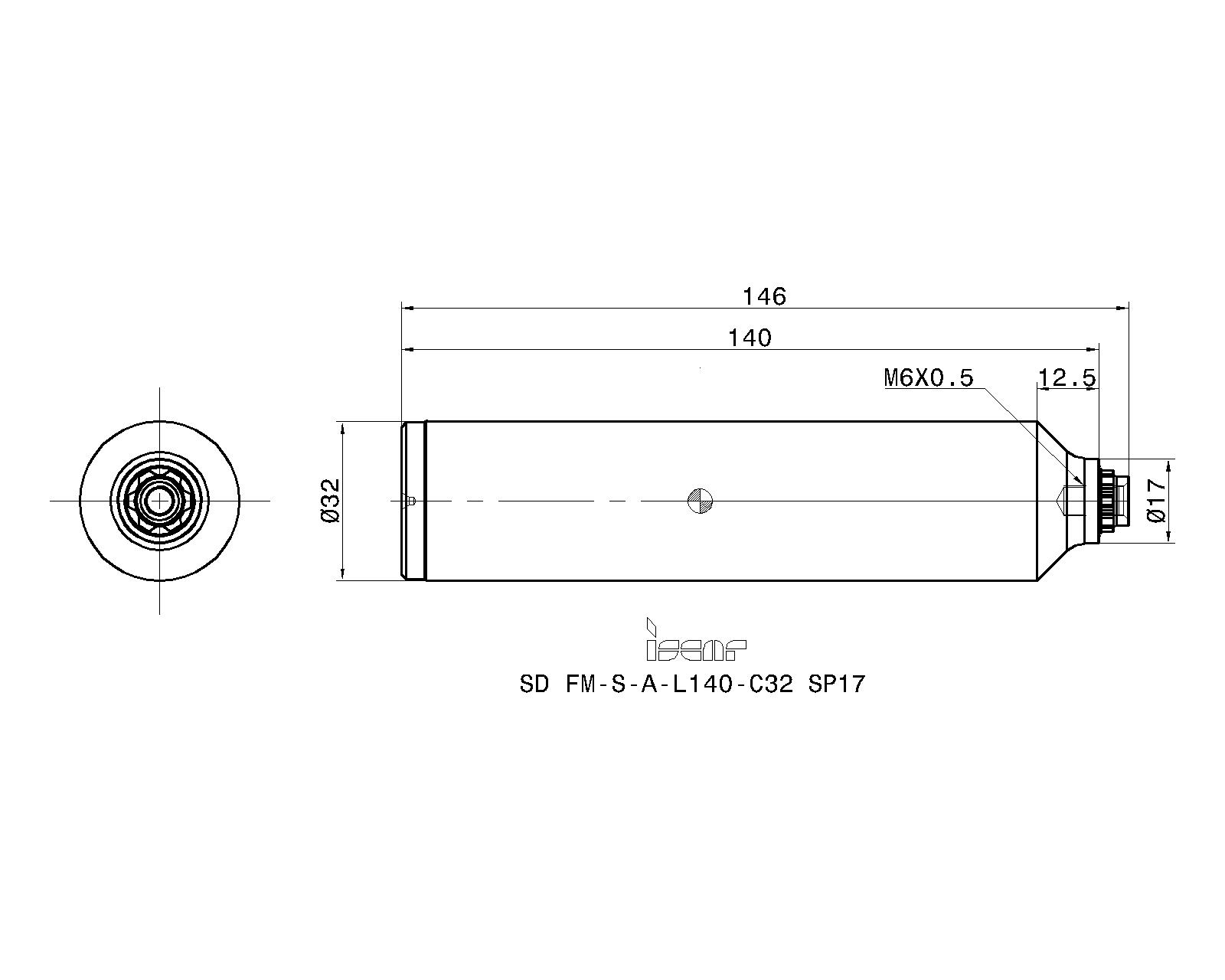

Item Designation: SD FM-S-A-L140-C32 SP17

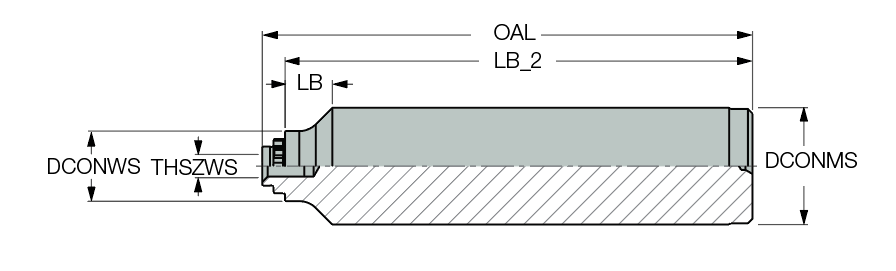

DCONMS	DCONWS	THSZWS	LB	LB_2	OAL	Shank		CCMS	GICAT	GIREM	giic
32.00	17.00	M6x0.5	12.50	140.00	146.00	C	0.85	ZYL01G3200$$$$~	3321624		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3321624		3	0	0				<a href="javascript:OpenDxf('3321624', 'SD FM-S-A-L140-C32 SP17' , 'IscarDxf' , '3321624-SD FM-S-A-L140-C32 SP17');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3321624&itemDesc=SD FM-S-A-L140-C32 SP17"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3321624&itemDesc=SD FM-S-A-L140-C32 SP17"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Apply lubricant to the clamping screw

Spare Parts
	3429447	SR M6X0.5-SP1719-IP25-HG	Torx screw	Details
	7003067	BLD IP25/S7	Torx blade	Details
For limiting torque, use optional 7007029 BLD 6 T25IP blade & 7007221 TSA 6 5-14 handle.
	7002097	SW6-T	T-handle	Details
