ISCAR Cutting Tools - Metal Working Tools - E90SP : 3325075

Geometry Checker ×

Family Designation: E90SP

HELIQUAD endmills carrying square inserts.

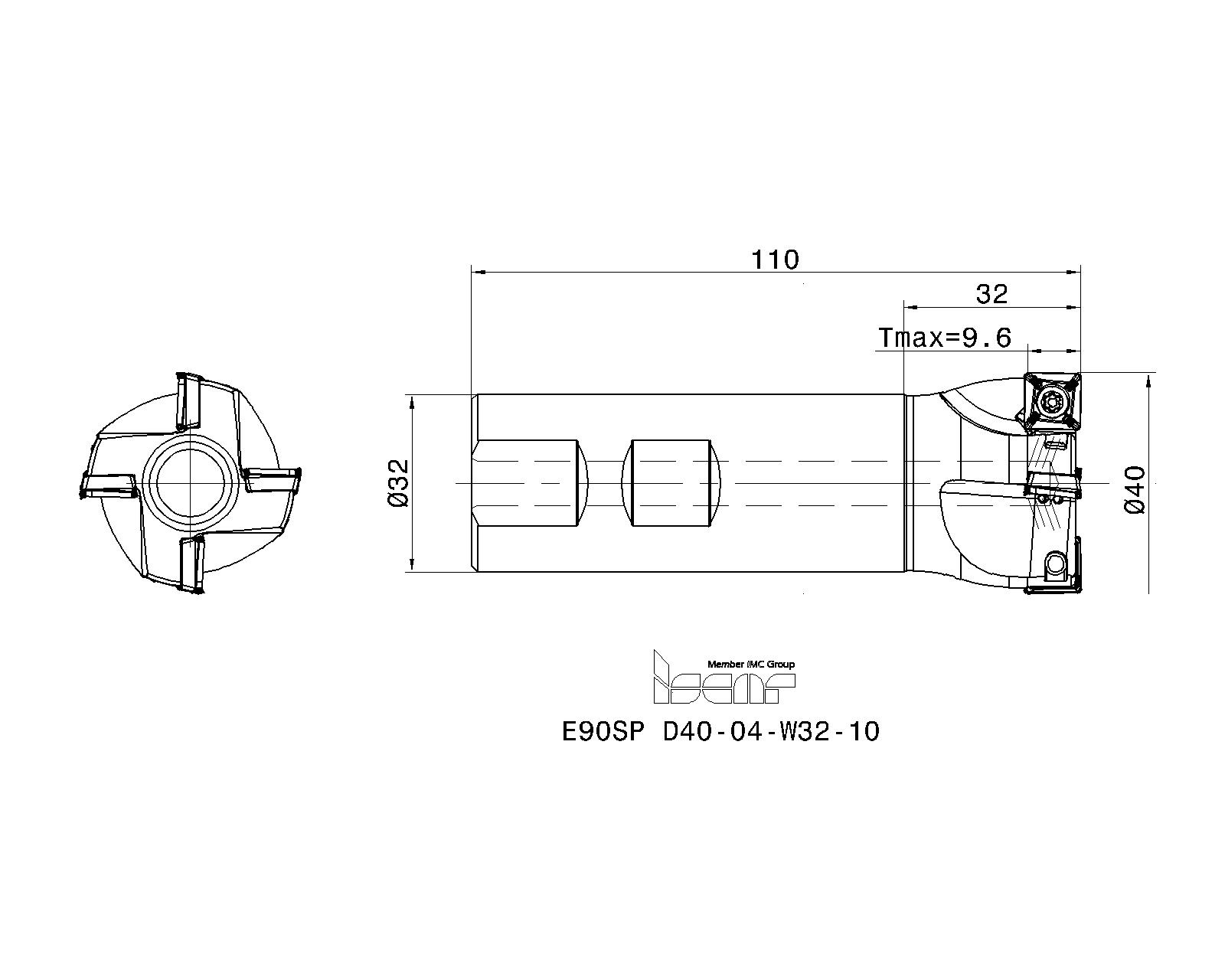

Item Designation: E90SP D40-04-W32-10

DC	CICT	DCONMS	LU	APMX	OAL	RMPX°	DC_2	DCX_2	APMX_2	OAL_2	RMPX°_2	Shank	MIID	MIID_2		L	HAND	CCMS	NOF	KAPR	CSP	DCX	ZEFF	GICAT	GIREM	giic
40.00	4	32.00	32.0	9.60	110.00	1.5	23.30	40.45	1.27	110.26	3.5	W	SPMT 100404R-HQ-M	SPMT 1004R15T-FF	0.60	10.20~	R~	ZYL10G3200h$06~	4~	~	1~	~	4~	3325075		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3325075		1	0	32				<a href="javascript:OpenDxf('3325075', 'E90SP D40-04-W32-10' , 'IscarDxf' , '3325075-E90SP D40-04-W32-10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3325075&itemDesc=E90SP D40-04-W32-10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3325075&itemDesc=E90SP D40-04-W32-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
1- with standard square insert
2- with FF (fast feed) insert
For adaptation, click on "More Info".

Spare Parts
	3332618	SR 10514114	Torx screw	Details
Recommended tightening torque:4.8 N*m
	7003092	BLD IP15/M7	Torx blade
For limiting torque, use optional 3309306 BLD 4 IP15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7003805	SW6-T-SH	T-handle
