Family Designation: BT-FC-SRK

Thermal shrink chucks with BT MAS-403 face contact AD tapered shanks, for solid carbide tools.

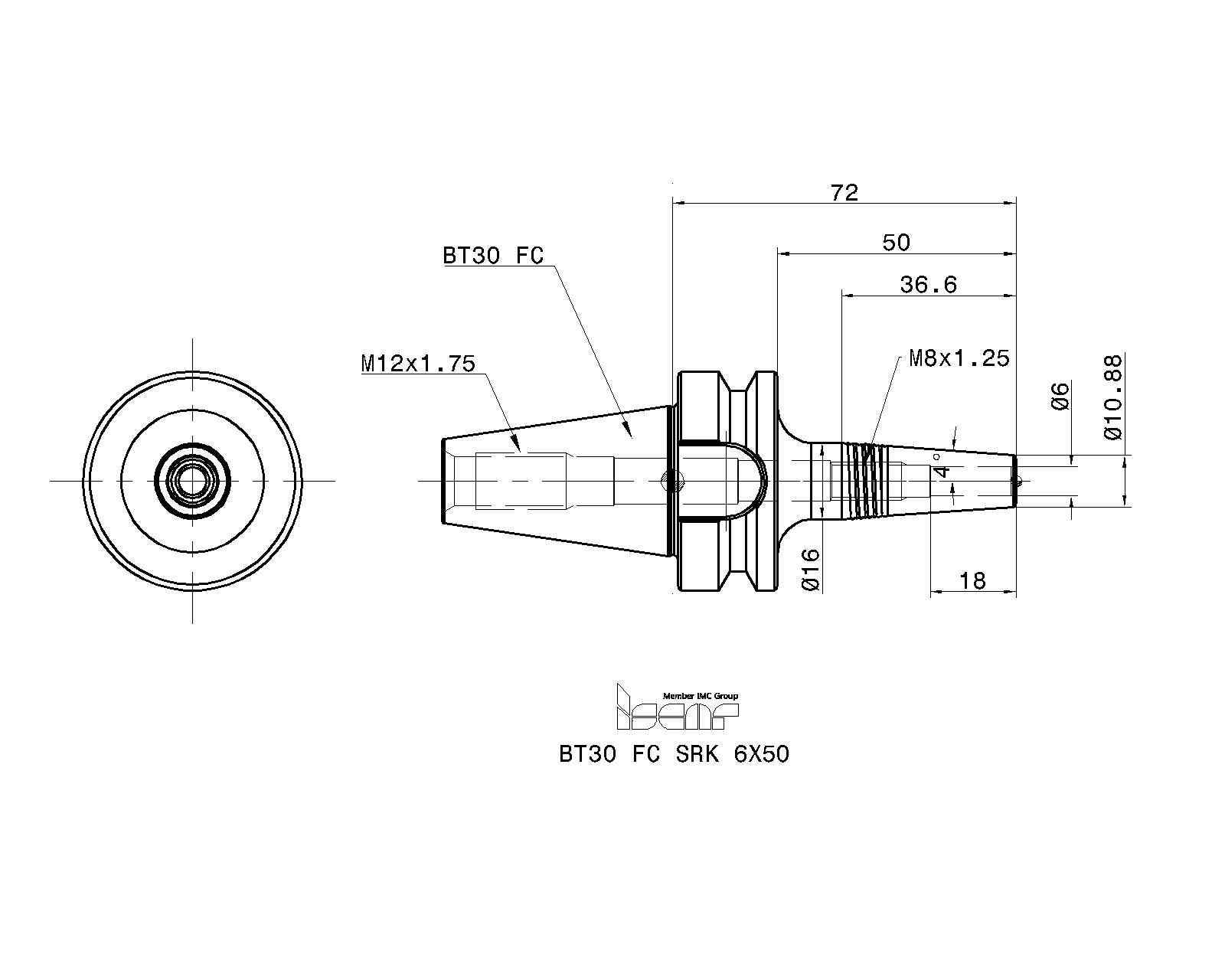

Item Designation: BT30 FC SRK 6X50

SS	DCONWS	DCONMS	BTED	BD	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	CRKS	Shank	CDI		S1	OAL	S2	BMC	UST	DF	TCDCONWS		FC	LS	ISCTMP	ClssID	W	BD_2	BSC	CCFMS	CCFWS	CCMS	CCTMS	CCTWS	CCWS	CMCS	CNSC	CSP	CUBPMS	CUBPWS	CXSC	CZCMS	CZCWS	GTC	HTA	ISYC	LTA	MCO	TCDCONMS	WTA	GICAT	GIREM	giic
30	6.00	30.00~	10.88	16.00	72.00	50.0	36.60	-~	0.00	18.0	M8	M12	C~	0	0.52	1~	~	S~	S~	M~	46.00~	h6~	~	1~	48.4~	BT To Cylindrical~	71EAD3871D313~	~	-~	3~	51~	01~	SKG51C0300$$$$~	SKG~	ZYL~	ZYL01F6000h$06~	4~	1~	1~	C~	F~	1~	0300~	6000~	ADPRS_MSKG51_WZYL01~	~	401-02~	~	~	$$$$~	0.00~	3325347		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3325347		1	224	24				<a href="javascript:OpenDxf('3325347', 'BT30 FC SRK 6X50' , 'IscarDxf' , '3325347-BT30 FC SRK 6X50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3325347&itemDesc=BT30 FC SRK 6X50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3325347&itemDesc=BT30 FC SRK 6X50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Use only inductive heating device for SRKIN holders
For adaptation details, click on "More Info"
For through tool coolant, preset screw must be removed

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7000540	SR M8X12 DIN916	Socket set with flat	Details
