Family Designation: BT-FC-HYDRO Hydraulic chucks with MAS-BT face contact form AD shanks. for Semi-Finish and finish applications


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/18,000 RPM  COOLANT THROUGH TOOL

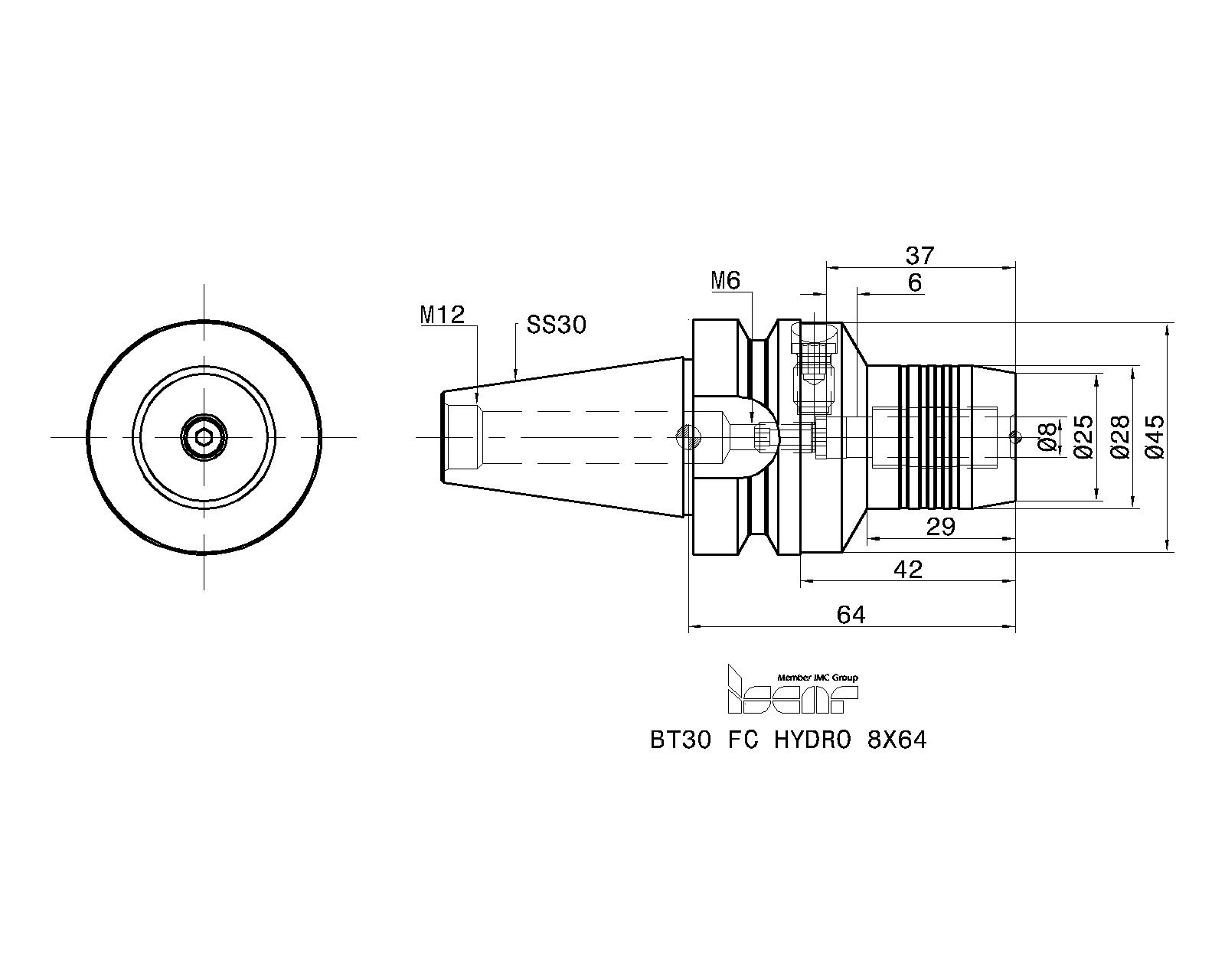

Item Designation: BT30 FC HYDRO 8X64
SS DCONWS LPR DCONMS BTED BD BD_2 LBX LB ADJRGA LSCWS THID CRKS CDI  CSP  CCMS GICATGIREMgiic
308.0064.0030.00~25.0028.0045.0042.029.006.0037.0M6M1200.601~SKG51C0300$$$$~3325358 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3325358 300<a href="javascript:OpenDxf('3325358', 'BT30 FC HYDRO 8X64' , 'IscarDxf' , '3325358-BT30 FC HYDRO 8X64');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3325358&itemDesc=BT30 FC HYDRO 8X64"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3325358&itemDesc=BT30 FC HYDRO 8X64"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used
Reduction sleeves are available for 12, and 20 mm bore diameters (order separately)
Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately
3D Representation
Assembly Video
2D Representation
  Spare Parts
4517189HYDRO CLAMP SCREW M8X14Socket flat head screw
