Family Designation: BT-FC-HYDRO

Hydraulic chucks with MAS-BT face contact form AD shanks. for Semi-Finish and finish applications

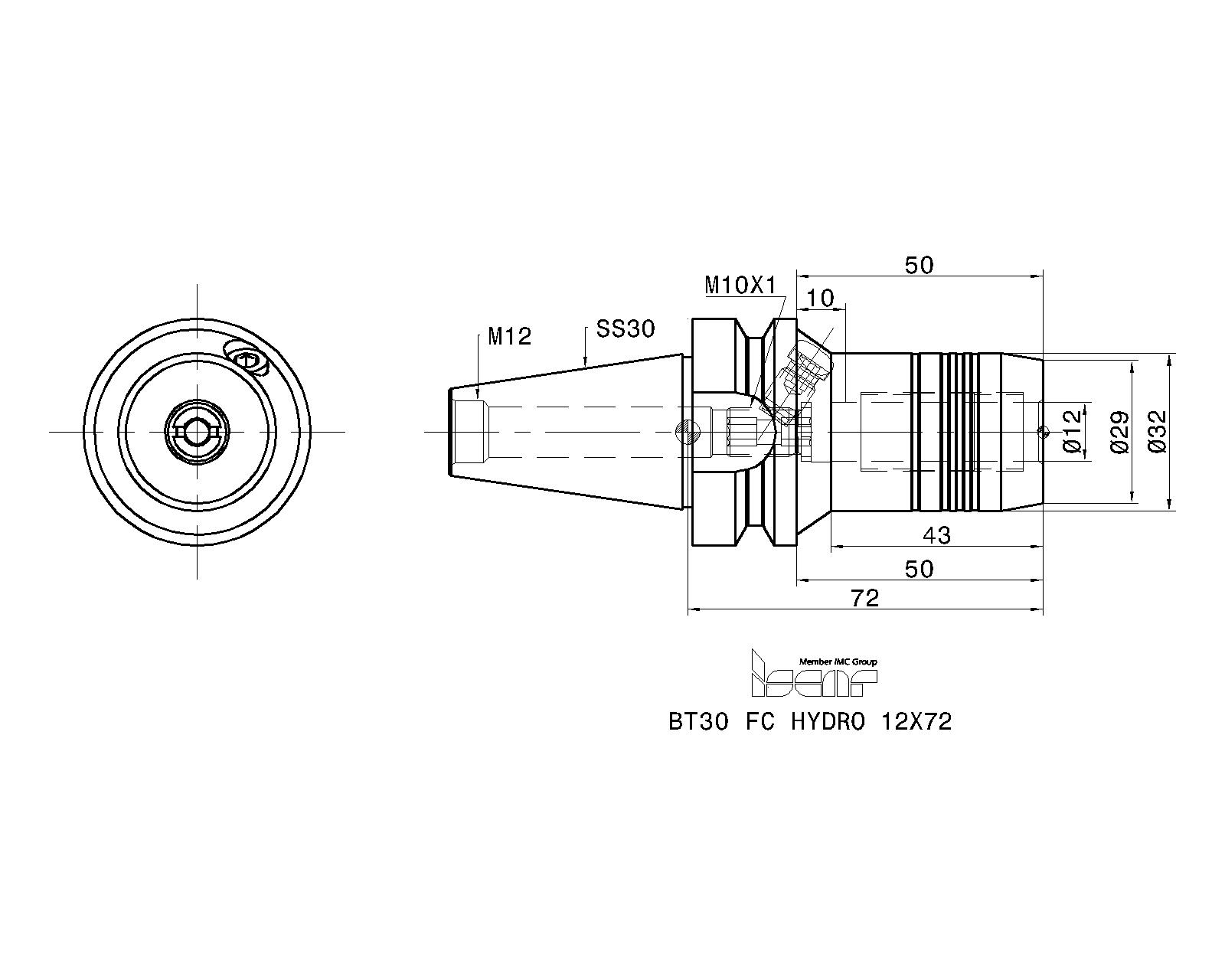

Item Designation: BT30 FC HYDRO 12X72

SS	DCONWS	LPR	DCONMS	CSI	BTED	BD	BD_2	LBX	LB	L min	ADJRGA	LSCWS	THID	CRKS	CDI		CCTMS	S. Std.	Shank	Mod	UST	BMC	DF	CCTWS	CCFWS		CSP	FC	LS	ISCTMP	BSC	CCFMS	CCFWS_2	CCMS	CCTWS_2	CCWS	CCWS_2	ClssID	CMCS	CNSC	CUBPMS	CUBPWS	CUBPWS_2	CXSC	CZCMS	CZCWS	CZCWS_2	GTC	GTC_2	HTA	ISYC	LTA	TCDCNWS2	TCDCONMS	TCDCONWS	WTA	GICAT	GIREM	giic
30	12.00	72.00	30.00~	12~	29.00	32.00	-	50.0	43.00	40.0~	10.00	50.0	M10x1	M12	0	0.60	SKG~	BT~	C~	~	M~	S~	46.00~	ZYL~	01~	Y~	1~	1~	48.4~	BT-HYDRO~	2~	51~	01~	SKG51C0300$$$$~	HYD~	ZYL01G1200h$06~	HYD01G1200h$06~	71EAD3871D313~	5~	1~	C~	G~	G~	1~	0300~	1200~	1200~	ADPRS_MSKG57_WHYD01~	ADPRS_MSKG51_WZYL01~	~	401-01~	72.00~	h6~	$$$$~	h6~	~	3325360		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3325360		3	0	0				<a href="javascript:OpenDxf('3325360', 'BT30 FC HYDRO 12X72' , 'IscarDxf' , '3325360-BT30 FC HYDRO 12X72');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3325360&itemDesc=BT30 FC HYDRO 12X72"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3325360&itemDesc=BT30 FC HYDRO 12X72"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used
Reduction sleeves are available for 12, and 20 mm bore diameters (order separately)
Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	4517189	HYDRO CLAMP SCREW M8X14	Socket flat head screw
