Family Designation: DGN-MF

Double-sided inserts with a positive rake inclination, single cavity and negative land, for hard and soft materials, stainless steel, bearing steel and high temp alloys.

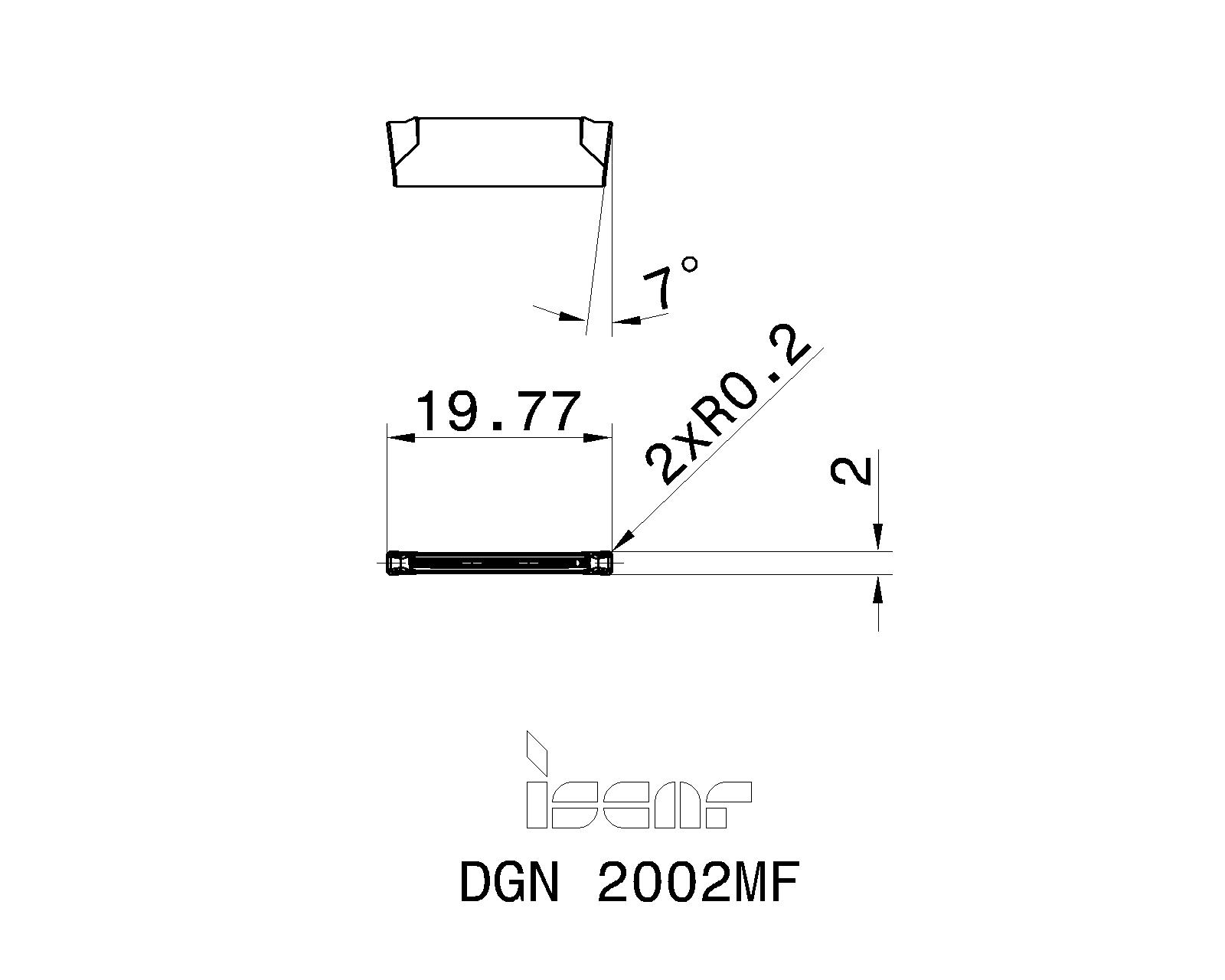

Item Designation: DGN 2002MF

CW	RE	CWTOL	CDX	INSL	CBMD	CEDC	fg (min)	fg (max)	HAND	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.00	0.20	0.040	18.00	19.90	~	2~	0.04	0.12	N~	L~	7.0~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6080679		5

Catalog No	Grade & Vc	GISC	AvailUSA	DXF	STP
3327039	IC1030	1	160	<a href="javascript:OpenDxf('3327039', 'DGN 2002MF' , 'IscarDxf' , '3327039-DGN 2002MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3327039&itemDesc=DGN 2002MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3327040	IC1010	1	1440	<a href="javascript:OpenDxf('3327040', 'DGN 2002MF' , 'IscarDxf' , '3327040-DGN 2002MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3327040&itemDesc=DGN 2002MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004881	IC808	1	2560	<a href="javascript:OpenDxf('6004881', 'DGN 2002MF' , 'IscarDxf' , '6004881-DGN 2002MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004881&itemDesc=DGN 2002MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004882	IC830	1	2880	<a href="javascript:OpenDxf('6004882', 'DGN 2002MF' , 'IscarDxf' , '6004882-DGN 2002MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004882&itemDesc=DGN 2002MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6080679	IC5400	1	5920	<a href="javascript:OpenDxf('6080679', 'DGN 2002MF' , 'IscarDxf' , '6080679-DGN 2002MF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6080679&itemDesc=DGN 2002MF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
