Family Designation: AVC-SDUCR/L Interchangeable boring heads carrying 55° rhombic inserts with 7° clearance.


Item Designation: AVC-D16-SDUCR-07
SSC  WF DCONMS DMIN LF KAPR  IC HAND CSP  OAL MIID  CCMS GICATGIREMgiic
7~11.0016.0020.0020.0093.0~6.35~R~0~DCMT 2-1CMS01C0160$$$$~3331860 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3331860 1616<a href="javascript:OpenDxf('3331860', 'AVC-D16-SDUCR-07' , 'IscarDxf' , '3331860-AVC-D16-SDUCR-07');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3331860&itemDesc=AVC-D16-SDUCR-07"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3331860&itemDesc=AVC-D16-SDUCR-07"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation
Assembly Video

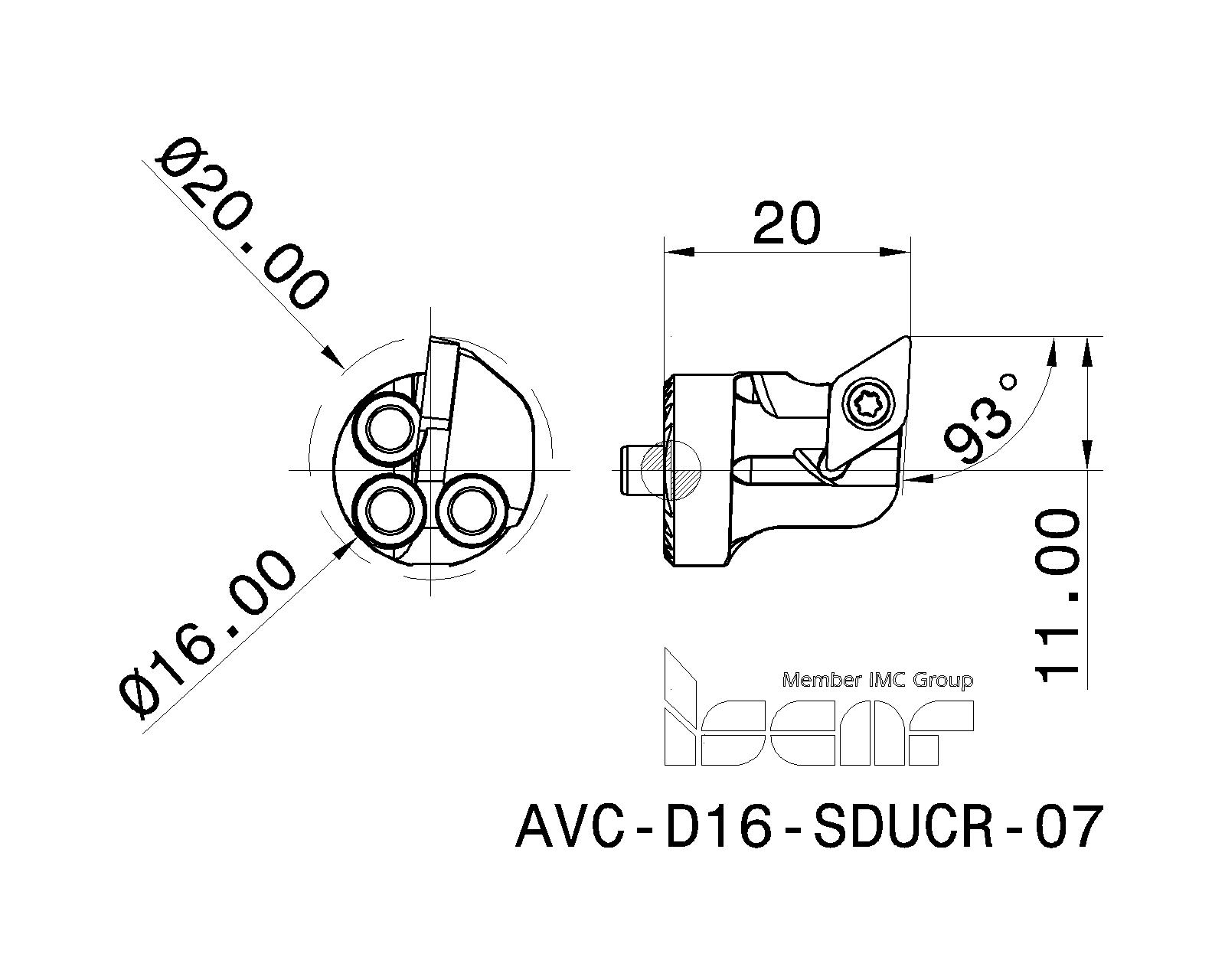

2D Representation
  Spare Parts
7000217SR 14-548
(Optional, should be ordered separately)		Torx screw
Details
Recommended tightening torque:0.9 N*m
7000271T-7/5
(Optional, should be ordered separately)		Torx key flag
Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
